BB25AB Series
Manufacturer: NKK Switches
Beta
⌘K

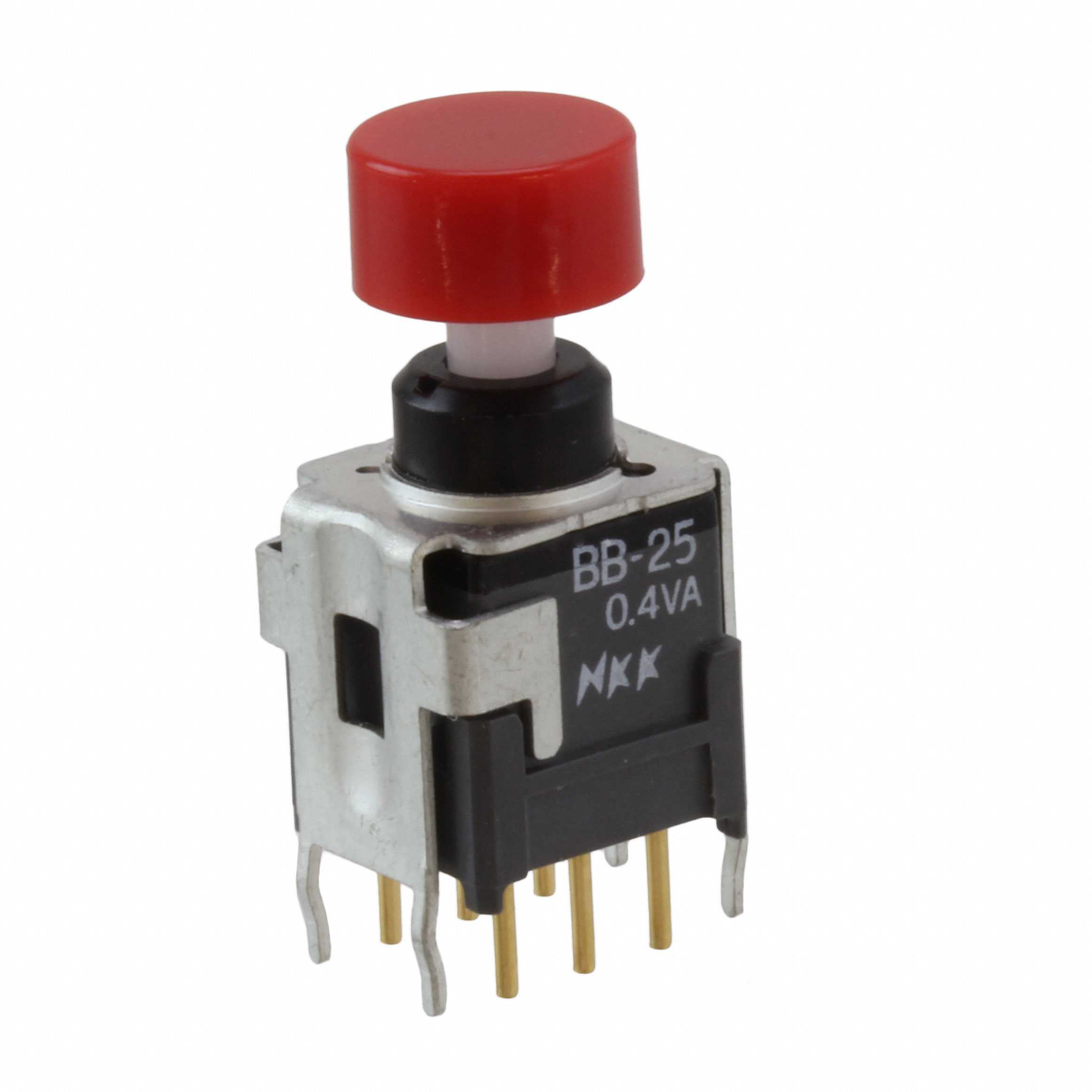

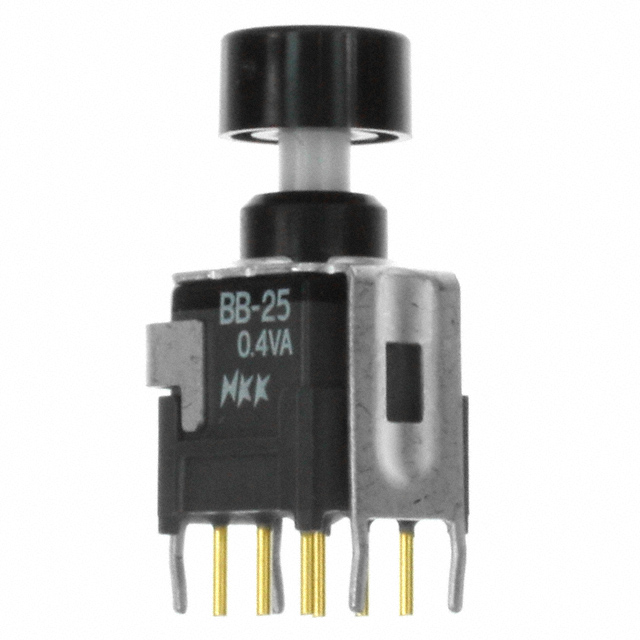

SWITCH PUSH DPDT 0.4VA 28V
| Part | Electrical Life | Mechanical Life | Circuit | Features | Mounting Type | Termination Style | Actuator Type | Voltage Rating - DC | Type | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Actuator Marking | Voltage Rating - AC | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 50000 Cycles | DPDT | Antistatic | Through Hole | PC Pin | Plunger for Cap | 28 V | Standard | On-Mom | 85 °C | -30 ░C | 0.4 VA | No Marking | 28 V | White |
 NKK Switches | 50000 Cycles | 50000 Cycles | DPDT | Antistatic | Through Hole | PC Pin | Button Round | 28 V | Standard | On-Mom | 85 °C | -30 ░C | 0.4 VA | No Marking | 28 V | Red |
 NKK Switches | 50000 Cycles | 50000 Cycles | DPDT | Antistatic | Through Hole | PC Pin | Button Round | 28 V | Standard | On-Mom | 85 °C | -30 ░C | 0.4 VA | No Marking | 28 V | Black |
