BR246-32 Series

Catalog

RELAY GEN PURPOSE DPDT 10A 28V

Part	Coil Resistance	Must Release Voltage	Coil Voltage	Operate Time	Contact Rating (Current)	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Must Operate Voltage	Termination Style	Release Time	Switching Voltage [Max]	Load - Max Switching	Coil Type	Relay Type	Coil Current
Microsemi Corporation BR246-320C1-28V-019M	320 Ohms	5.1 VDC	28 VDC	15 ms	10 A	DPDT (2 Form C)	-70 °C	125 °C	Socketable	18 VDC	Plug In	15 ms	28 VDC 208 VAC	280 W 2080 VA	Non Latching	General Purpose	87.5 mA
Microsemi Corporation BR246-320B2-28V-023L	320 Ohms	5.1 VDC	28 VDC	15 ms	10 A	DPDT (2 Form C)	-70 °C	125 °C	Chassis Mount	18 VDC	Solder Hook	15 ms	28 VDC 208 VAC	280 W 2080 VA	Non Latching	General Purpose	87.5 mA
Microsemi Corporation BR246-320B3-28V-026M	320 Ohms	5.1 VDC	28 VDC	15 ms	10 A	DPDT (2 Form C)	-70 °C	125 °C	Chassis Mount	18 VDC	Solder Hook	15 ms	28 VDC 208 VAC	280 W 2080 VA	Non Latching	General Purpose	87.5 mA
Microsemi Corporation BR246-320C3-28V-025M	320 Ohms	5.1 VDC	28 VDC	15 ms	10 A	DPDT (2 Form C)	-70 °C	125 °C	Chassis Mount	18 VDC	Plug In	15 ms	28 VDC 208 VAC	280 W 2080 VA	Non Latching	General Purpose	87.5 mA

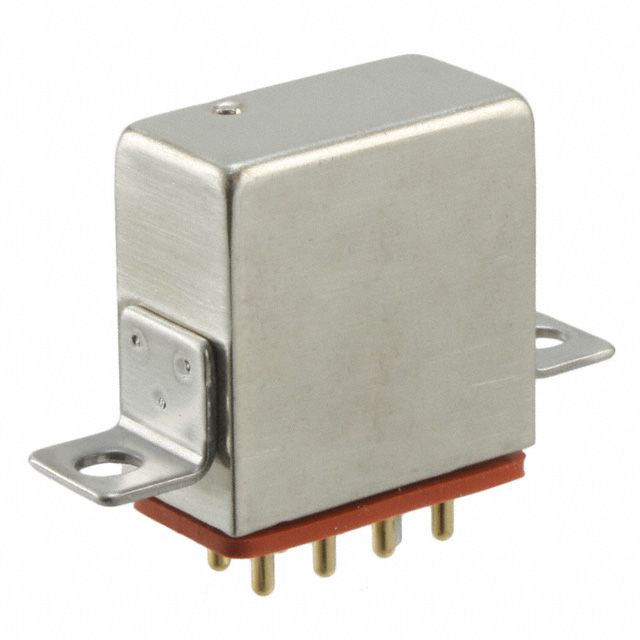

Microsemi Corporation BR246-320A2-28V-024M	320 Ohms	5.1 VDC	28 VDC	15 ms	10 A	DPDT (2 Form C)	-70 °C	125 °C	Socketable	18 VDC	Plug In	15 ms	28 VDC 208 VAC	280 W 2080 VA	Non Latching	General Purpose	87.5 mA

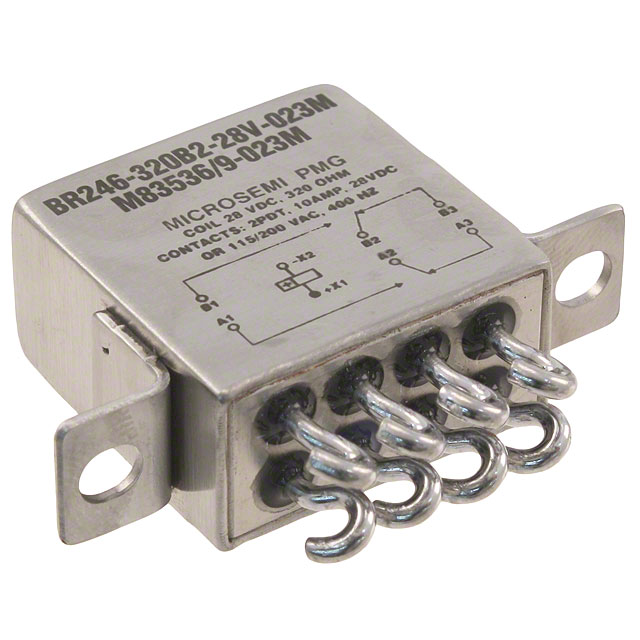

Microsemi Corporation BR246-320B2-28V-023M	320 Ohms	5.1 VDC	28 VDC	15 ms	10 A	DPDT (2 Form C)	-70 °C	125 °C	Chassis Mount	18 VDC	Solder Hook	15 ms	28 VDC 208 VAC	280 W 2080 VA	Non Latching	General Purpose	87.5 mA
Microsemi Corporation BR246-320B1-28V-020M	320 Ohms	5.1 VDC	28 VDC	15 ms	10 A	DPDT (2 Form C)	-70 °C	125 °C	Chassis Mount	18 VDC	Solder Hook	15 ms	28 VDC 208 VAC	280 W 2080 VA	Non Latching	General Purpose	87.5 mA
Microsemi Corporation BR246-320C3-28V-025L	320 Ohms	5.1 VDC	28 VDC	15 ms	10 A	DPDT (2 Form C)	-70 °C	125 °C	Chassis Mount	18 VDC	Plug In	15 ms	28 VDC 208 VAC	280 W 2080 VA	Non Latching	General Purpose	87.5 mA

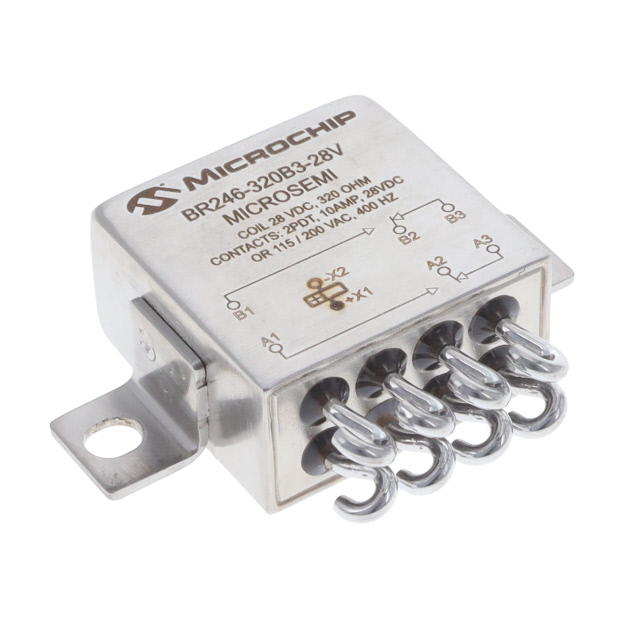

Microsemi Corporation BR246-320B3-28V	320 Ohms	5.1 VDC	28 VDC	15 ms	10 A	DPDT (2 Form C)	-70 °C	125 °C	Chassis Mount	18 VDC	Solder Hook	15 ms	28 VDC 208 VAC	280 W 2080 VA	Non Latching	General Purpose	87.5 mA
Microsemi Corporation BR246-320B3-28V-23	320 Ohms	5.1 VDC	28 VDC	15 ms	10 A	DPDT (2 Form C)	-70 °C	125 °C	Chassis Mount	18 VDC	Solder Hook	15 ms	28 VDC 208 VAC	280 W 2080 VA	Non Latching	General Purpose	87.5 mA
