399-80 Series

Manufacturer: Preci-Dip

Catalog

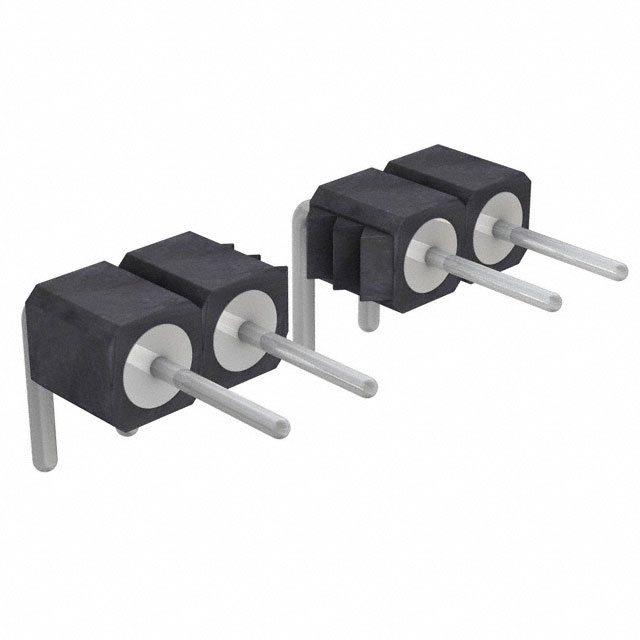

CONN HEADER R/A 58POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Positions Loaded	Material Flammability Rating	Termination	Insulation Color	Insulation Material	Current Rating (Amps)	Fastening Type	Shrouding	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector Type	Mounting Type	Voltage Rating	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Number of Positions	Number of Positions [custom]
Preci-Dip 399-80-158-10-009101	0.1 "	2.54 mm	Tin	All	UL94 V-0	Solder	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	Push-Pull	Unshrouded	Circular	4 mm	0.157 in	Male Pin	-55 C	125 °C	Brass	Header	Right Angle Through Hole	150 VDC	1	0.126 "	3.2 mm	0.1 in	2.54 mm	58
Preci-Dip 399-80-122-10-009101	0.1 "	2.54 mm	Tin	All	UL94 V-0	Solder	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	Push-Pull	Unshrouded	Circular	4 mm	0.157 in	Male Pin	-55 C	125 °C	Brass	Header	Right Angle Through Hole	150 VDC	1	0.126 "	3.2 mm	0.1 in	2.54 mm	22
Preci-Dip 399-80-106-10-009101	0.1 "	2.54 mm	Tin	All	UL94 V-0	Solder	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	Push-Pull	Unshrouded	Circular	4 mm	0.157 in	Male Pin	-55 C	125 °C	Brass	Header	Right Angle Through Hole	150 VDC	1	0.126 "	3.2 mm	0.1 in	2.54 mm	6
Preci-Dip 399-80-113-10-009101	0.1 "	2.54 mm	Tin	All	UL94 V-0	Solder	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	Push-Pull	Unshrouded	Circular	4 mm	0.157 in	Male Pin	-55 C	125 °C	Brass	Header	Right Angle Through Hole	150 VDC	1	0.126 "	3.2 mm	0.1 in	2.54 mm	13

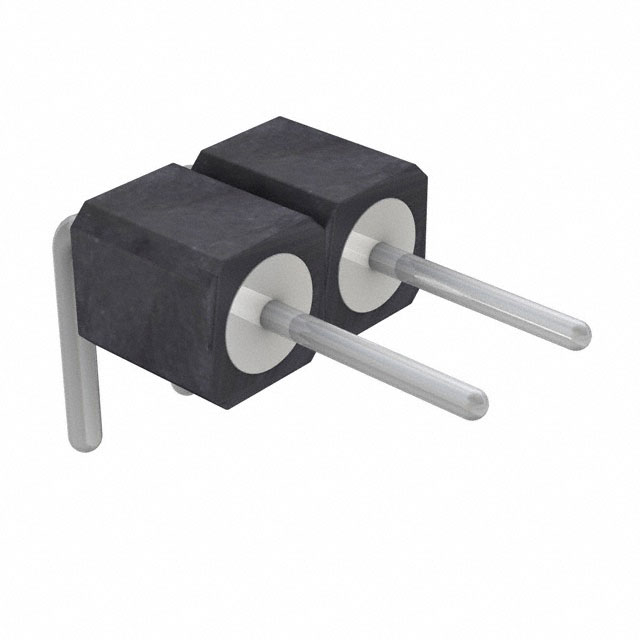

Preci-Dip 399-80-102-10-009101	0.1 "	2.54 mm	Tin	All	UL94 V-0	Solder	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	Push-Pull	Unshrouded	Circular	4 mm	0.157 in	Male Pin	-55 C	125 °C	Brass	Header	Right Angle Through Hole	150 VDC	1	0.126 "	3.2 mm	0.1 in	2.54 mm	2
Preci-Dip 399-80-105-10-009101	0.1 "	2.54 mm	Tin	All	UL94 V-0	Solder	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	Push-Pull	Unshrouded	Circular	4 mm	0.157 in	Male Pin	-55 C	125 °C	Brass	Header	Right Angle Through Hole	150 VDC	1	0.126 "	3.2 mm	0.1 in	2.54 mm	5
Preci-Dip 399-80-148-10-009101	0.1 "	2.54 mm	Tin	All	UL94 V-0	Solder	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	Push-Pull	Unshrouded	Circular	4 mm	0.157 in	Male Pin	-55 C	125 °C	Brass	Header	Right Angle Through Hole	150 VDC	1	0.126 "	3.2 mm	0.1 in	2.54 mm	48
Preci-Dip 399-80-133-10-009101	0.1 "	2.54 mm	Tin	All	UL94 V-0	Solder	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	Push-Pull	Unshrouded	Circular	4 mm	0.157 in	Male Pin	-55 C	125 °C	Brass	Header	Right Angle Through Hole	150 VDC	1	0.126 "	3.2 mm	0.1 in	2.54 mm		33
Preci-Dip 399-80-138-10-009101	0.1 "	2.54 mm	Tin	All	UL94 V-0	Solder	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	Push-Pull	Unshrouded	Circular	4 mm	0.157 in	Male Pin	-55 C	125 °C	Brass	Header	Right Angle Through Hole	150 VDC	1	0.126 "	3.2 mm	0.1 in	2.54 mm	38
Preci-Dip 399-80-159-10-009101	0.1 "	2.54 mm	Tin	All	UL94 V-0	Solder	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	Push-Pull	Unshrouded	Circular	4 mm	0.157 in	Male Pin	-55 C	125 °C	Brass	Header	Right Angle Through Hole	150 VDC	1	0.126 "	3.2 mm	0.1 in	2.54 mm	59
