305-076 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 76POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Mounting Type	Termination	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Features	Color	Gender	Contact Type	Number of Positions	Contact Finish	Number of Rows [custom]	Read Out	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

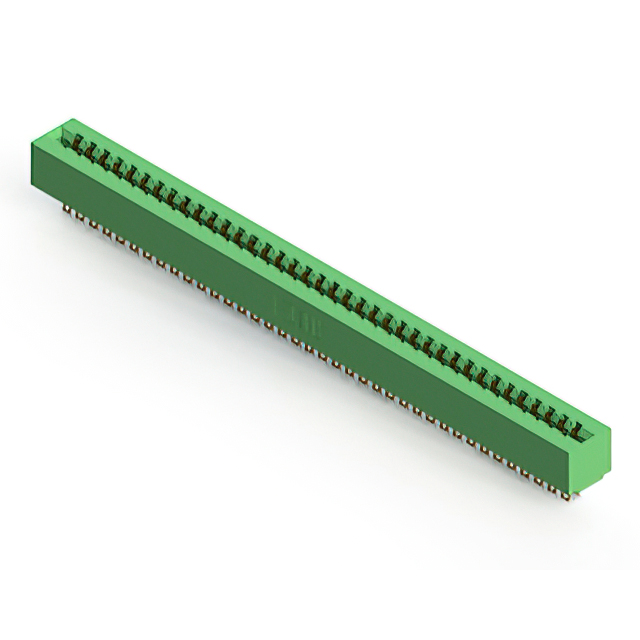

EDAC Inc. 305-076-555-501	Polyester Thermoplastic	2	Copper Alloy	Board Edge Straddle Mount	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	38	0.25 Ám	10 Áin	3.96 mm	0.156 in	Card Extender	Green	Female	Semi Bellows	76	Gold	2	Dual

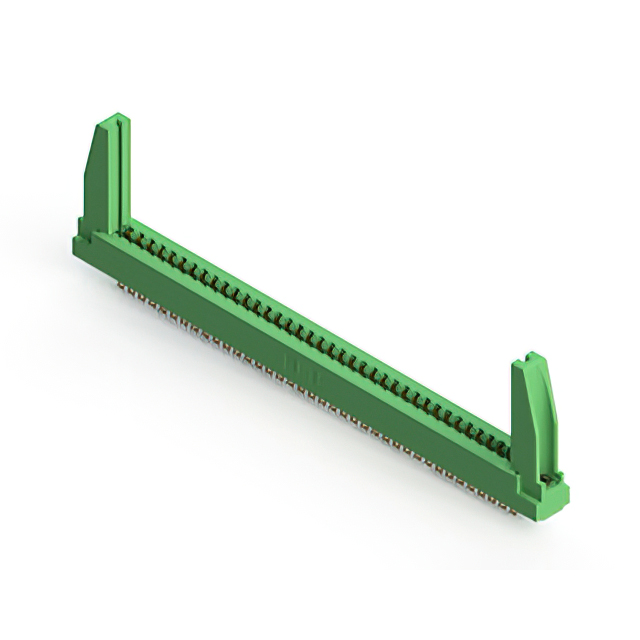

EDAC Inc. 305-076-555-578	Polyester Thermoplastic	2	Copper Alloy	Board Edge Straddle Mount	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	38	0.25 Ám	10 Áin	3.96 mm	0.156 in	Card Extender Card Guides	Green	Female	Semi Bellows	76	Gold	2	Dual	4-40 Flush Mount Threaded Insert Top Opening

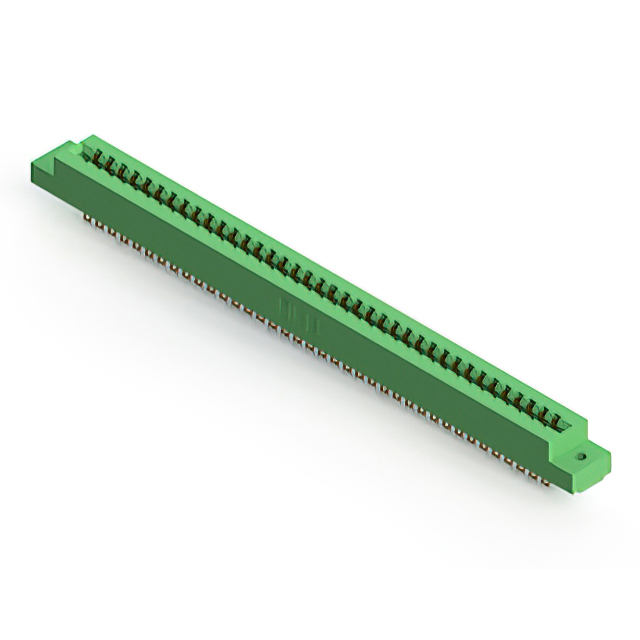

EDAC Inc. 305-076-555-502	Polyester Thermoplastic	2	Copper Alloy	Board Edge Straddle Mount	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	38	0.25 Ám	10 Áin	3.96 mm	0.156 in	Card Extender	Green	Female	Semi Bellows	76	Gold	2	Dual	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

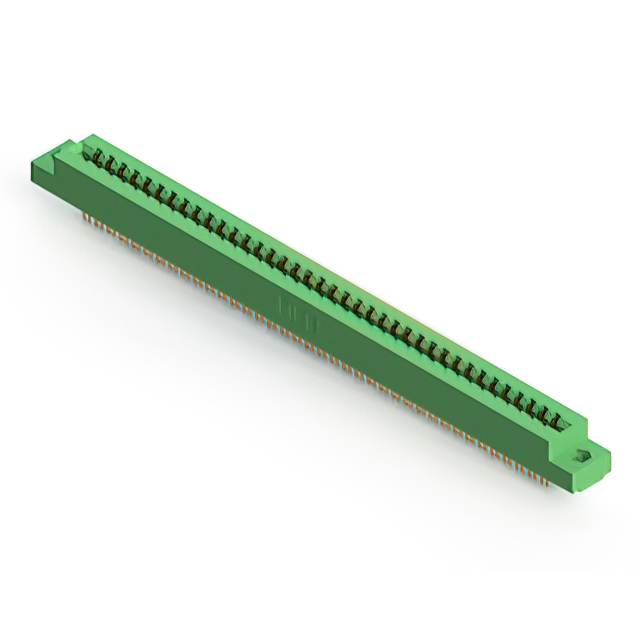

EDAC Inc. 305-076-500-204	Polyester Thermoplastic	2	Copper Alloy	Panel Mount	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	38	0.25 Ám	10 Áin	3.96 mm	0.156 in		Green	Female	Semi Bellows	76	Gold	2	Dual	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "

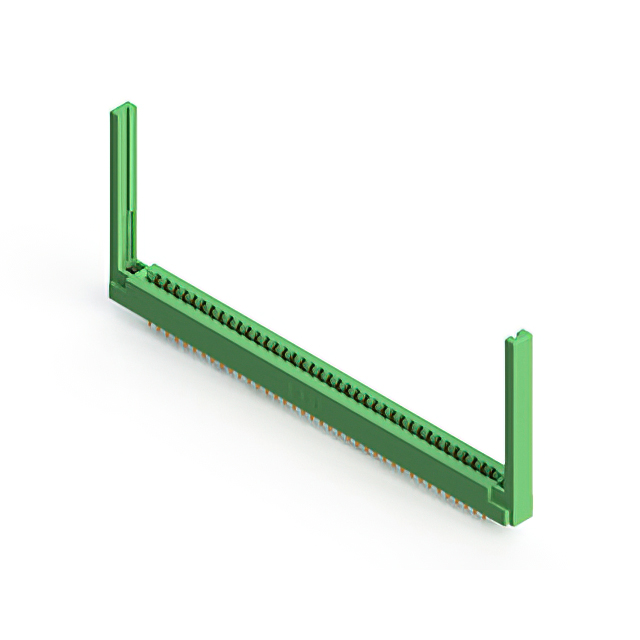

EDAC Inc. 305-076-520-268	Polyester Thermoplastic	2	Copper Alloy	Panel Mount Through Hole	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	38	0.25 Ám	10 Áin	3.96 mm	0.156 in		Green	Female	Semi Bellows	76	Gold	2	Dual	4-40 Flush Mount Threaded Insert Top Opening

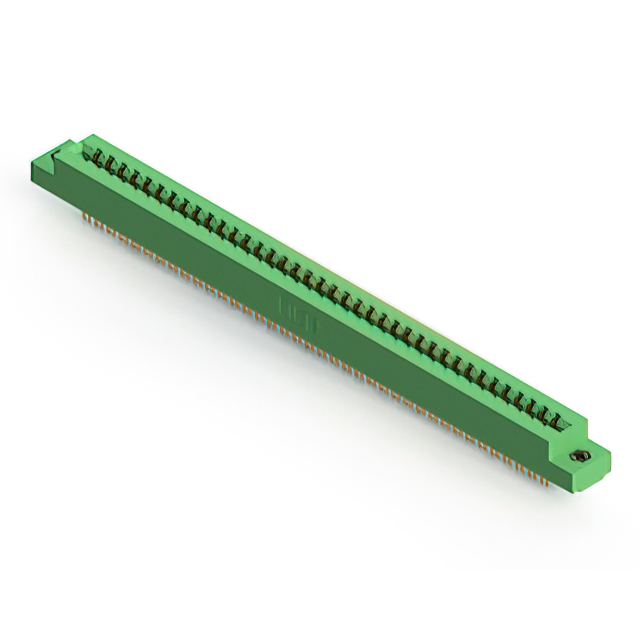

EDAC Inc. 305-076-500-208	Polyester Thermoplastic	2	Copper Alloy	Panel Mount	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	38	0.25 Ám	10 Áin	3.96 mm	0.156 in		Green	Female	Semi Bellows	76	Gold	2	Dual	4-40 Flush Mount Threaded Insert Top Opening

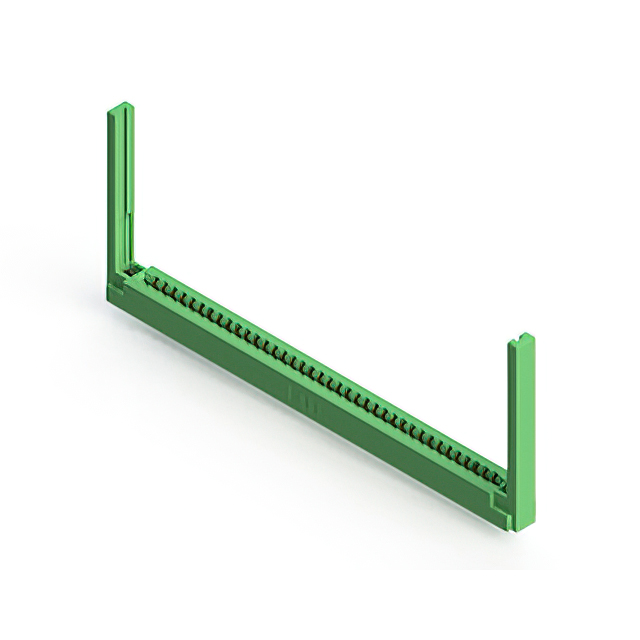

EDAC Inc. 305-076-521-268	Polyester Thermoplastic	2	Copper Alloy	Panel Mount Through Hole	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	38	0.25 Ám	10 Áin	3.96 mm	0.156 in		Green	Female	Semi Bellows	76	Gold	2	Dual	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 305-076-500-268	Polyester Thermoplastic	2	Copper Alloy	Panel Mount	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	38	0.25 Ám	10 Áin	3.96 mm	0.156 in		Green	Female	Semi Bellows	76	Gold	2	Dual	4-40 Flush Mount Threaded Insert Top Opening

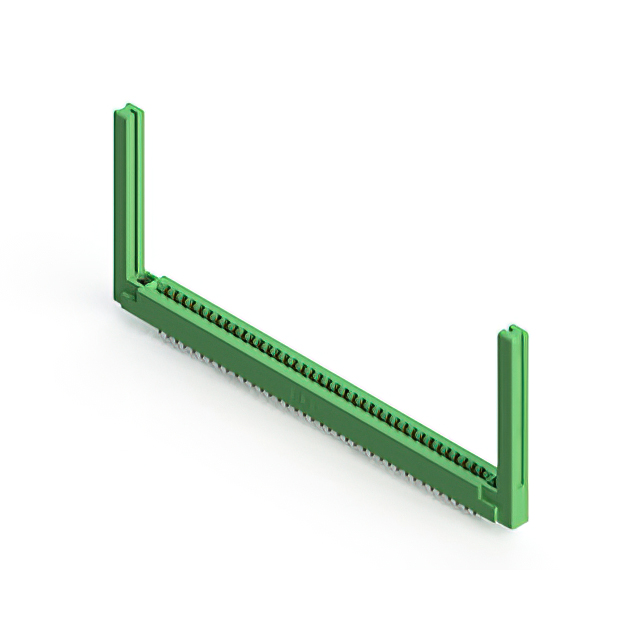

EDAC Inc. 305-076-556-558	Polyester Thermoplastic	2	Copper Alloy	Board Edge Straddle Mount	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	38	0.25 Ám	10 Áin	3.96 mm	0.156 in	Card Extender Card Guides	Green	Female	Semi Bellows	76	Gold	2	Dual	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 305-076-555-203	Polyester Thermoplastic	2	Copper Alloy	Board Edge Straddle Mount	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	38	0.25 Ám	10 Áin	3.96 mm	0.156 in	Card Extender	Green	Female	Semi Bellows	76	Gold	2	Dual	Floating Bobbin Flush Mount	2.95 mm	0.116 "
