IL-G-11P Series

Catalog

CONN HEADER R/A 11POS 2.5MM

Part	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Material Flammability Rating	Style	Insulation Material	Insulation Color	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Height [custom]	Insulation Height [custom]	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Type	Termination	Contact Shape	Connector Type	Number of Positions Loaded	Fastening Type	Shrouding	Current Rating (Amps)	Mated Stacking Heights	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height

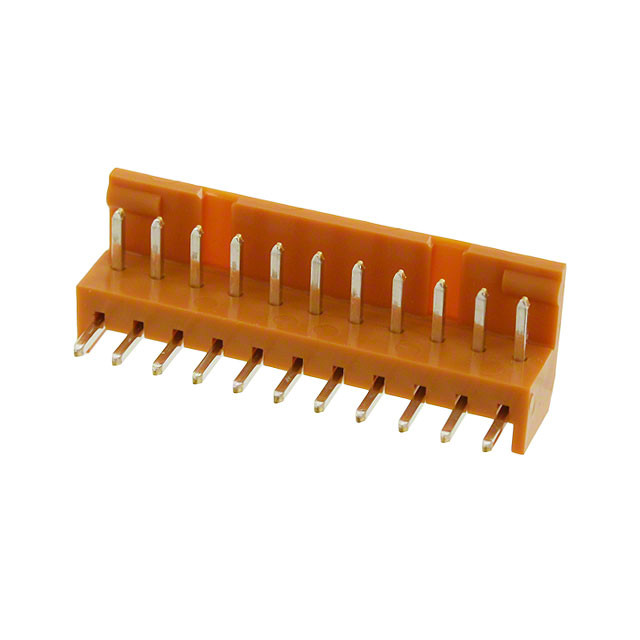

JAE Electronics IL-G-11P-S3L2-SA	4 mm	0.157 in	0.138 in	3.5 mm	Tin	UL94 V-0	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	Brown	Right Angle Through Hole	2.5 mm	0.098 in	11	0.236 "	6 mm	Brass	85 °C	-40 C	1	Male Pin	Solder	Square	Header	All	Friction Lock	Shrouded - 1 Wall	3 A

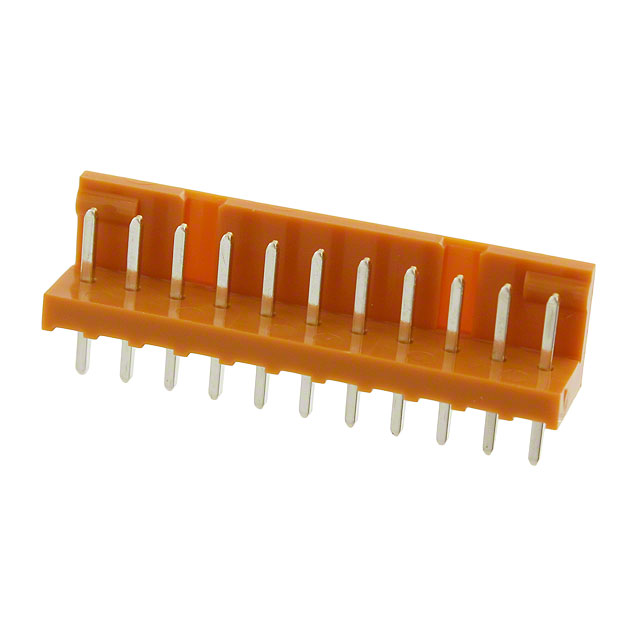

JAE Electronics IL-G-11P-S3T2-SA	4 mm	0.157 in	0.138 in	3.5 mm	Tin	UL94 V-0	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	Brown	Through Hole	2.5 mm	0.098 in	11			Brass	85 °C	-40 C	1	Male Pin	Solder	Square	Header	All	Friction Lock	Shrouded - 1 Wall	3 A	10 mm	9.6 mm	0.378 in	0.28 in	7.1 mm
