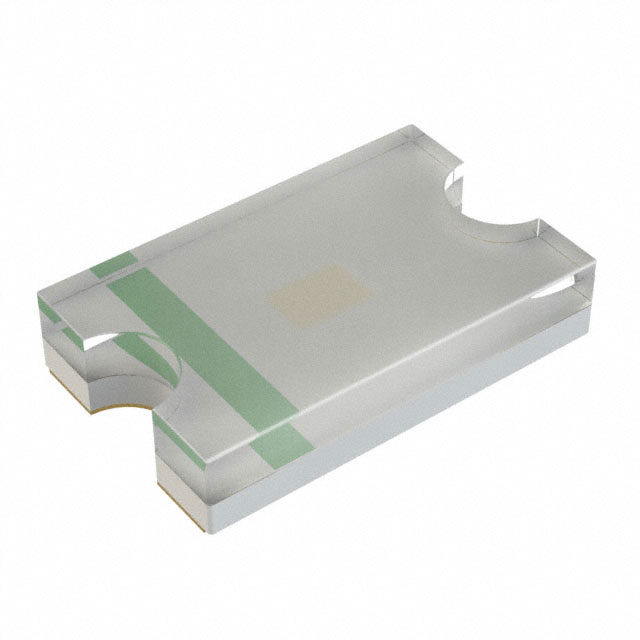

HSMY-C177 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED YELLOW DIFFUSED CHIP SMD
| Part | Wavelength - Peak | Lens Style | Package / Case | Color | Size / Dimension [x] | Size / Dimension [y] | Lens Size [x] | Lens Size [y] | Viewing Angle | Wavelength - Dominant | Configuration | Lens Transparency | Current - Test | Millicandela Rating | Lens Color | Mounting Type | Height (Max) [z] | Supplier Device Package | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 589 nm | Rectangle with Flat Top | 0805 | Yellow | 2 mm | 1.25 mm | 2 mm | 1.25 mm | 130 ° | 586 nm | Standard | Diffused | 20 mA | 8 mcd | White | Surface Mount | 0.4 mm | Chip LED | 2.1 V |
