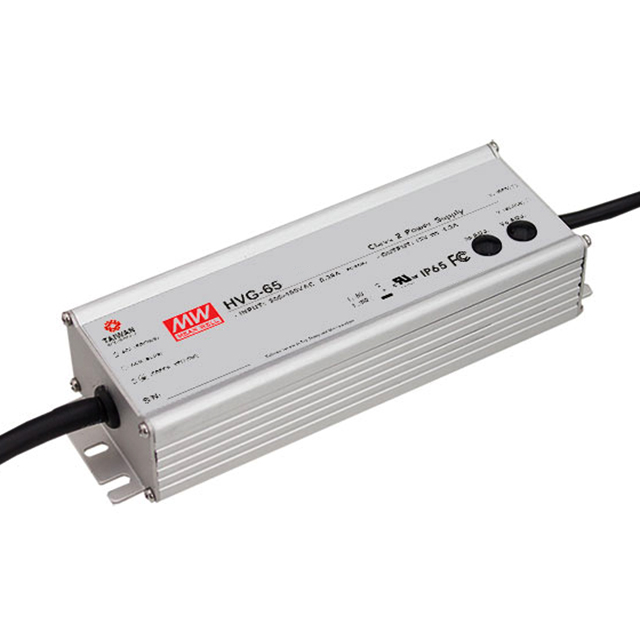

HVG-65 Series

Catalog

LED DRVR CC/CV AC/DC 9-15V 4.3A

Part	Mounting Type	Voltage - Output [Min]	Voltage - Output [Max]	Features	Power (Watts)	Topology	Current - Output (Max) [Max]	Voltage - Isolation	Ratings	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Efficiency	Termination Style	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Type	Number of Outputs
MEAN WELL USA Inc. HVG-65-15B	Chassis Mount	9 V	15 V	OCP OTP OVP SCP	65 W	AC DC Converter	4.3 A	3750 VDC	IP67	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	180 VAC	87.5 %	Wire Leads	528 VAC	80 °C	-40 C	Analog PWM	Constant Current Voltage	1
MEAN WELL USA Inc. HVG-65-30B	Chassis Mount			OCP OTP OVP SCP	65 W	AC DC Converter	2.17 A	3750 VDC	IP67	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	180 VAC	89 %	Wire Leads	528 VAC	80 °C	-40 C	Analog PWM	Constant Current Voltage	1
MEAN WELL USA Inc. HVG-65-48A	Chassis Mount	43 V	53 V	OCP OTP OVP SCP	65 W	AC DC Converter	1.36 A	3750 VDC	IP65	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	180 VAC	90 %	Wire Leads	528 VAC	80 °C	-40 C		Constant Current Voltage	1
MEAN WELL USA Inc. HVG-65-42A	Chassis Mount	38 V	46 V	OCP OTP OVP SCP	65 W	AC DC Converter	1.55 A	3750 VDC	IP65	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	180 VAC		Wire Leads	528 VAC	80 °C	-40 C		Constant Current Voltage	1
MEAN WELL USA Inc. HVG-65-48B	Chassis Mount	28.8 V	48 V	OCP OTP OVP SCP	65 W	AC DC Converter	1.36 A	3750 VDC	IP67	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	180 VAC	90 %	Wire Leads	528 VAC	80 °C	-40 C	Analog PWM	Constant Current Voltage	1
MEAN WELL USA Inc. HVG-65-20A	Chassis Mount	17 V	22 V	OCP OTP OVP SCP	65 W	AC DC Converter	3.25 A	3750 VDC	IP65	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	180 VAC	88.5 %	Wire Leads	528 VAC	80 °C	-40 C		Constant Current Voltage	1
MEAN WELL USA Inc. HVG-65-36A	Chassis Mount	33	40	OCP OTP OVP SCP	65 W	AC DC Converter	1.81 A	3750 VDC	IP65	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	180 VAC		Wire Leads	528 VAC	80 °C	-40 C		Constant Current Voltage	1
MEAN WELL USA Inc. HVG-65-42B	Chassis Mount	25.2	42 V	OCP OTP OVP SCP	65 W	AC DC Converter	1.55 A	3750 VDC	IP67	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	180 VAC		Wire Leads	528 VAC	80 °C	-40 C	Analog PWM	Constant Current Voltage	1
