ATS-FPS Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

HEATSINK 57.9X36.83X11.43MM FP

Part	Attachment Method	Length	Length	Fin Height [z]	Fin Height [z]	Width [x]	Width [x]	Shape [custom]	Shape [custom]	Package Cooled	Material	Material Finish	Type	Thermal Resistance @ Forced Air Flow	Length	Width [y]	Width [y]	Fin Height [custom]	Fin Height [custom]
Advanced Thermal Solutions Inc. ATS-FPS058037011-32-C3-R0	Push Pin	57.9 mm	2.28 in	11.43 mm	0.45 "	36.83 mm	1.45 in	Rectangular	Fins	ASIC BGA CPU LGA	Aluminum	Blue Anodized	Top Mount	21.54 °C/W
Advanced Thermal Solutions Inc. ATS-FPS037058011-36-C2-R0	Push Pin		36.83 mm	11.43 mm	0.45 "			Rectangular	Fins	ASIC BGA CPU LGA	Aluminum	Blue Anodized	Top Mount	14.82 °C/W	1.45 "	57.6 mm	2.267 in

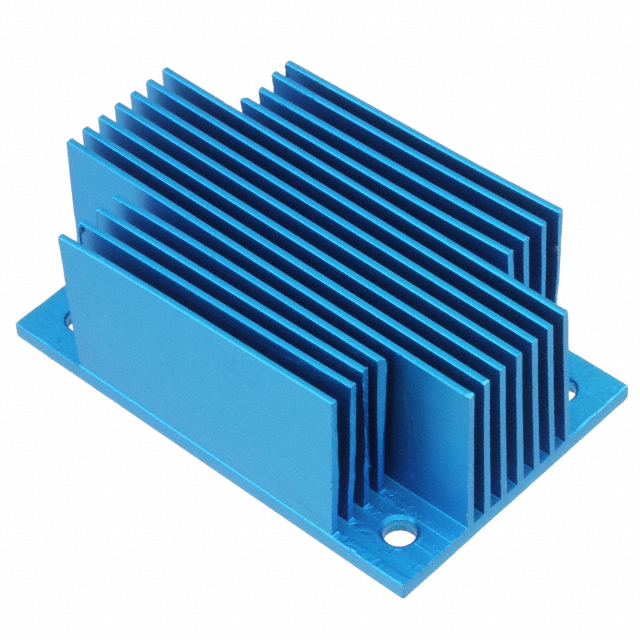

Advanced Thermal Solutions Inc. ATS-FPS058037023-34-C1-R0	Push Pin	57.9 mm	2.28 in	22.86 mm	0.9 in	36.83 mm	1.45 in	Rectangular	Fins	ASIC BGA CPU LGA	Aluminum	Blue Anodized	Top Mount	14.31 °C/W

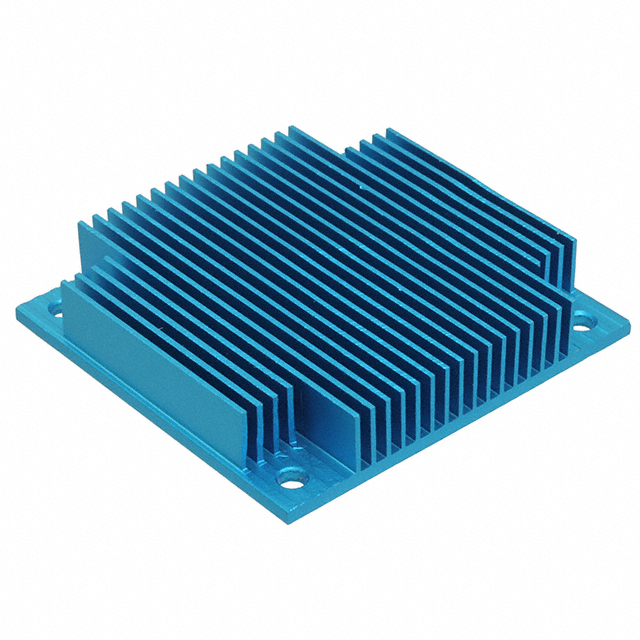

Advanced Thermal Solutions Inc. ATS-FPS058061011-40-C1-R0	Push Pin	57.9 mm	2.28 in	11.43 mm	0.45 "			Rectangular	Fins	ASIC BGA CPU LGA	Aluminum	Blue Anodized	Top Mount	14.55 °C/W		60.96 mm	2.4 "

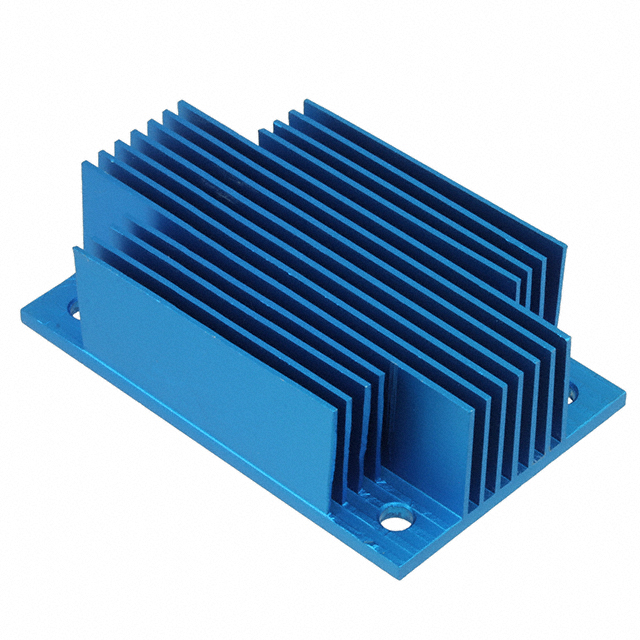

Advanced Thermal Solutions Inc. ATS-FPS058037018-33-C2-R0	Push Pin	57.9 mm	2.28 in			36.83 mm	1.45 in	Rectangular	Fins	ASIC BGA CPU LGA	Aluminum	Blue Anodized	Top Mount	17.42 °C/W				17.78 mm	0.7 in
Advanced Thermal Solutions Inc. ATS-FPS058061011-40-C2-R0	Push Pin	57.9 mm	2.28 in	11.43 mm	0.45 "			Rectangular	Fins	ASIC BGA CPU LGA	Aluminum	Blue Anodized	Top Mount	14.56 °C/W		60.96 mm	2.4 "
Advanced Thermal Solutions Inc. ATS-FPS058037011-32-C2-R0	Push Pin	57.9 mm	2.28 in	11.43 mm	0.45 "	36.83 mm	1.45 in	Rectangular	Fins	ASIC BGA CPU LGA	Aluminum	Blue Anodized	Top Mount	21.46 °C/W 100 LFM

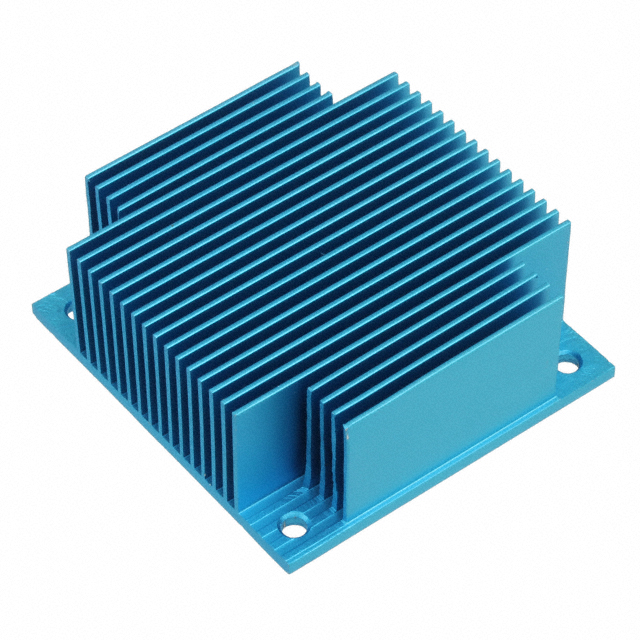

Advanced Thermal Solutions Inc. ATS-FPS058061023-42-C2-R0	Push Pin	57.9 mm	2.28 in	22.86 mm	0.9 in			Rectangular	Fins	ASIC BGA CPU LGA	Aluminum	Blue Anodized	Top Mount	7.31 °C/W		60.96 mm	2.4 "
Advanced Thermal Solutions Inc. ATS-FPS058037023-34-C3-R0	Push Pin	57.9 mm	2.28 in	22.86 mm	0.9 in	36.83 mm	1.45 in	Rectangular	Fins	ASIC BGA CPU LGA	Aluminum	Blue Anodized	Top Mount	14.4 °C/W
Advanced Thermal Solutions Inc. ATS-FPS037058023-38-C1-R0	Push Pin		36.83 mm	22.86 mm	0.9 in			Rectangular	Fins	ASIC BGA CPU LGA	Aluminum	Blue Anodized	Top Mount	6.4 °C/W	1.45 "	57.6 mm	2.267 in
