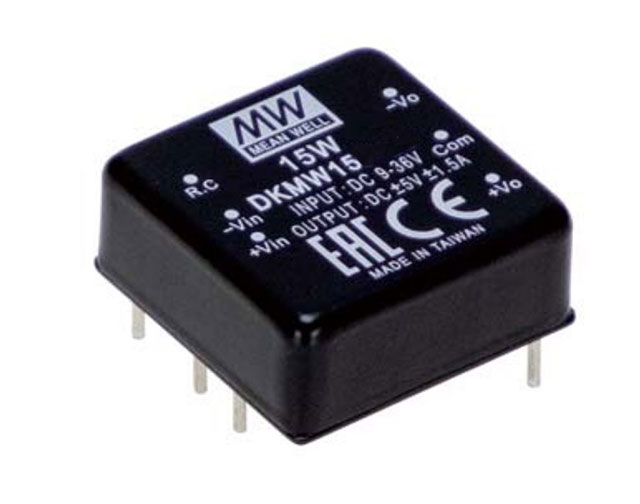

DKMW15 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER +/-5V 15W
| Part | Mounting Type | Voltage - Output 2 | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Package / Case | Type | Applications | Number of Outputs | Voltage - Output 1 | Efficiency | Voltage - Isolation | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Through Hole | -5 V | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 6-DIP Module | Isolated Module | ITE (Commercial) | 2 | 5 V | 85 % | 3000 V | 9 V | 36 V | CE EAC | -40 °C | 85 °C | 1.5 A | 15 W |
MEAN WELL USA Inc. | Through Hole | -15 V | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 6-DIP Module | Isolated Module | ITE (Commercial) | 2 | 15 V | 89 % | 3000 V | 9 V | 36 V | CE EAC | -40 °C | 85 °C | 500 mA | 15 W |
