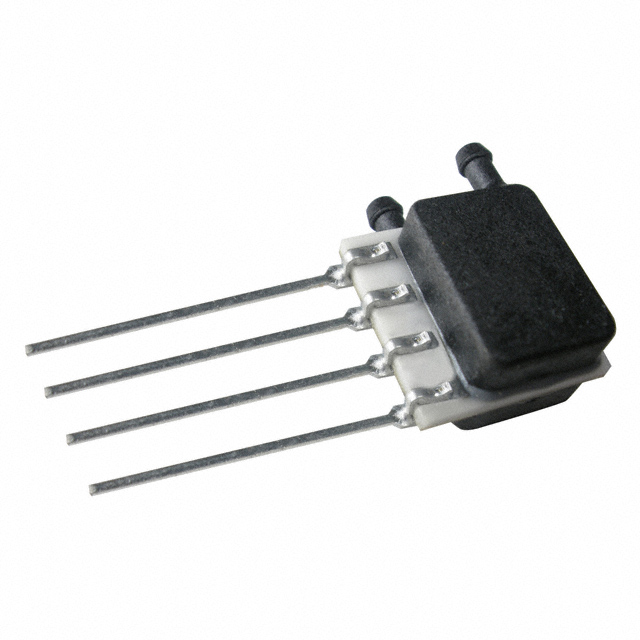

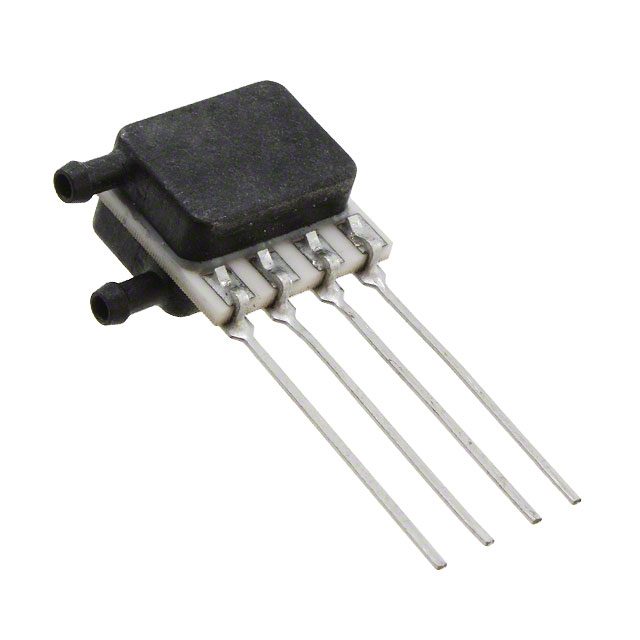

SSCSRRN Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SENSOR 1PSID 0.08" 12BIT 4SIP
| Part | Features | Pressure Type | Operating Pressure | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Output | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Port Size | Port Size | Port Size | Accuracy | Mounting Type | Port Style | Maximum Pressure | Maximum Pressure | Supplier Device Package | Applications | Termination Style | Output [Max] | Output [Min] | Operating Pressure | Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Amplified Output Temperature Compensated | Differential | ±1PSI (±6.89kPa) | 4.75 V | 5.25 V | 4-SIP Dual Ports Same Side | 12 b | 85 °C | -40 C | I2C | 0.08 " | Dual Male Tube | 1.92 mm | 0.25 % | Through Hole | Barbed | 68.95 kPa | 10 PSI | 4-SIP | Board Mount | PC Pin | ||||
 Honeywell Sensing and Productivity Solutions | Amplified Output Temperature Compensated | Differential | ±1PSI (±6.89kPa) | 4.75 V | 5.25 V | 4-SIP Dual Ports Same Side | 85 °C | -40 C | Analog Voltage | 0.08 " | Dual Male Tube | 1.92 mm | 0.25 % | Through Hole | Barbed | 68.95 kPa | 10 PSI | 4-SIP | Board Mount | PC Pin | 4.5 V | 0.5 V | |||
 Honeywell Sensing and Productivity Solutions | Amplified Output Temperature Compensated | Differential | 4.75 V | 5.25 V | 4-SIP Dual Ports Same Side | 85 °C | -40 C | Analog Voltage | 0.08 " | Dual Male Tube | 1.92 mm | 0.25 % | Through Hole | Barbed | 200 kPa | 29.01 PSI | 4-SIP | Board Mount | PC Pin | 4.5 V | 0.5 V | 5.8 PSI | 40 kPa |
