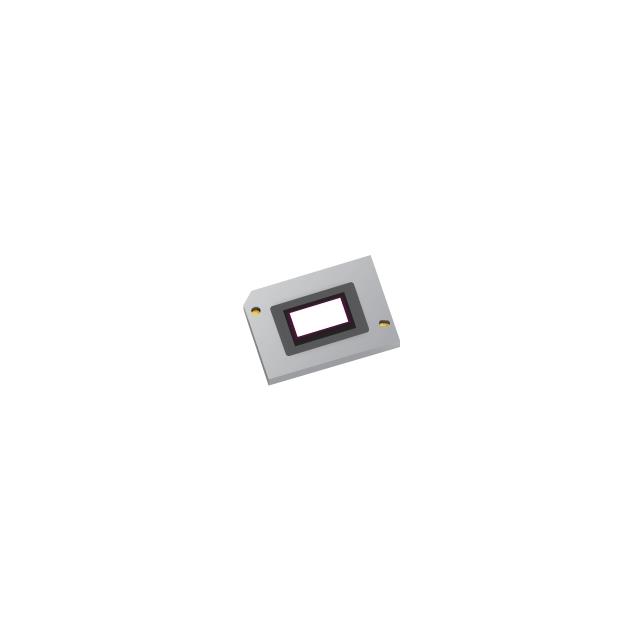

DLP5533A-Q1 Series
DLP® automotive 0.55-inch digital micromirror device (DMD)
Manufacturer: Texas Instruments
Catalog
DLP® automotive 0.55-inch digital micromirror device (DMD)
Key Features
• Qualified for automotive applications–40°C to 105°C operating DMD array temperature rangeThe DLP5533A-Q1 automotive chipset includes:DLP5533A-Q1 DMDDLPC230-Q1 DMD controllerTPS99001-Q1 system management and illumination controller0.55-inch diagonal micromirror array7.6-µm micromirror pitch±12° micromirror tilt angle (relative to flat state)Bottom illumination for optimal efficiency and optical engine size1.3-megapixel array configured in 2:1 aspect ratio enabling high resolution and wide aspect ratio automotive applicationsCompatible with LED or laser illumination600-MHz sub-LVDS DMD interface for low power and emission10-kHz DMD refresh rate over temperature extremesBuilt-in self test of DMD memory cellsQualified for automotive applications–40°C to 105°C operating DMD array temperature rangeThe DLP5533A-Q1 automotive chipset includes:DLP5533A-Q1 DMDDLPC230-Q1 DMD controllerTPS99001-Q1 system management and illumination controller0.55-inch diagonal micromirror array7.6-µm micromirror pitch±12° micromirror tilt angle (relative to flat state)Bottom illumination for optimal efficiency and optical engine size1.3-megapixel array configured in 2:1 aspect ratio enabling high resolution and wide aspect ratio automotive applicationsCompatible with LED or laser illumination600-MHz sub-LVDS DMD interface for low power and emission10-kHz DMD refresh rate over temperature extremesBuilt-in self test of DMD memory cells
Description
AI
The DLP5533A-Q1 automotive DMD, combined with the DLPC230-Q1 DMD controller and TPS99001-Q1 system management and illumination controller, provides the capability to achieve high performance high resolution headlight systems. The 2:1 aspect ratio supports very wide aspect ratio designs, and the 1.3-MP resolution enables high resolution symbol projection and adaptive driving beam applications. The DLP5533A-Q1 has more than 3 times the optical throughput of the preceding DLP3030-Q1 automotive DMD enabling an even larger field of view and higher lumens output. The DLP5533A-Q1 automotive DMD micromirror array is configured for bottom illumination which enables highly efficient and more compact optical engine designs. The S450 package has low thermal resistance to the DMD array to enable more efficient thermal solutions.
The DLP5533A-Q1 automotive DMD, combined with the DLPC230-Q1 DMD controller and TPS99001-Q1 system management and illumination controller, provides the capability to achieve high performance high resolution headlight systems. The 2:1 aspect ratio supports very wide aspect ratio designs, and the 1.3-MP resolution enables high resolution symbol projection and adaptive driving beam applications. The DLP5533A-Q1 has more than 3 times the optical throughput of the preceding DLP3030-Q1 automotive DMD enabling an even larger field of view and higher lumens output. The DLP5533A-Q1 automotive DMD micromirror array is configured for bottom illumination which enables highly efficient and more compact optical engine designs. The S450 package has low thermal resistance to the DMD array to enable more efficient thermal solutions.
