NCP1568 Series
Manufacturer: ON Semiconductor
Beta
⌘K

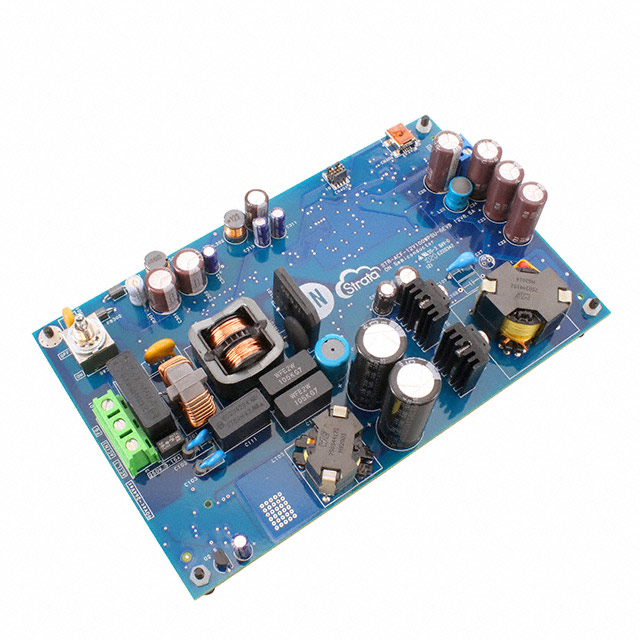

NCP1568 AC TO DC SWITCHING CONVERTER 12V OUTPUT EVALUATION BOARD
| Part | Main Purpose | Current - Output | Voltage - Input [Min] | Voltage - Input [Max] | Supplied Contents | Regulator Topology | Outputs and Type | Outputs and Type | Voltage - Output | Utilized IC / Part | Board Type | Power - Output | Package / Case [y] | Package / Case | Package / Case [y] | Package / Case | Frequency - Switching [Max] | Frequency - Switching [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Start Up | Fault Protection | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Output Isolation | Supplier Device Package | Topology | Control Features | Mounting Type | Duty Cycle | Internal Switch(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | AC/DC PFC Primary Side | 8.5 A | 90 VAC | 264 VAC | Board(s) | Flyback | Non-Isolated | 1 | 12 V | NCP1568 | Fully Populated | 100 W | |||||||||||||||||||
 ON Semiconductor | 0.173 in | 16-TSSOP | 4.4 mm | 12 | 1 MHz | 100 kHz | -40 °C | 125 ¯C | 15.2 V | Current Limiting Over Power Over Temperature Over Voltage Short Circuit | 10 V | 27 V | Isolated | 16-TSSOP | Flyback | Frequency Control Soft Start | Surface Mount | 79 % | |||||||||||||
ON Semiconductor | 0.173 in | 16-TSSOP | 4.4 mm | 12 | 1 MHz | 100 kHz | -40 °C | 125 ¯C | 15.2 V | Current Limiting Over Power Over Temperature Over Voltage Short Circuit | 10 V | 27 V | Isolated | 16-TSSOP | Flyback | Frequency Control Soft Start | Surface Mount | 79 % |
