P70-10200 Series
Manufacturer: Harwin Inc.
Beta
⌘K

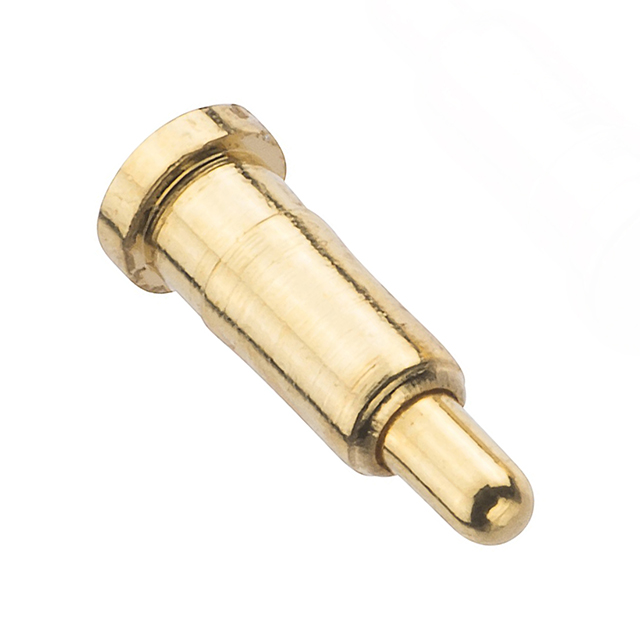

INDIVIDUAL SMT SPRING LOADED POGO PIN, 5.5MM ROHS COMPLIANT: YES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Mid Compression | Plunger Size [diameter] | Plunger Size [diameter] | Mating Cycles | Contact Type | Recommended Working Height | Recommended Working Height | Contact Material | Contact Finish | Current Rating (Amps) | Mounting Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Pad Layout Dimension | Pad Layout Dimension | Pad Layout Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 85 °C | -40 C | 16 µin | 0.41 µm | 119.31 gf | 0.035 in | 0.9 mm | 10000 | Sleeve & Plunger (Pogo Pins) | 0.177 in | 4.5 mm | Brass | Gold | 2 A | Surface Mount | 0.185 in | 4.7 mm | 2.2 mm | Circular | 0.087 in |
