2007716 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

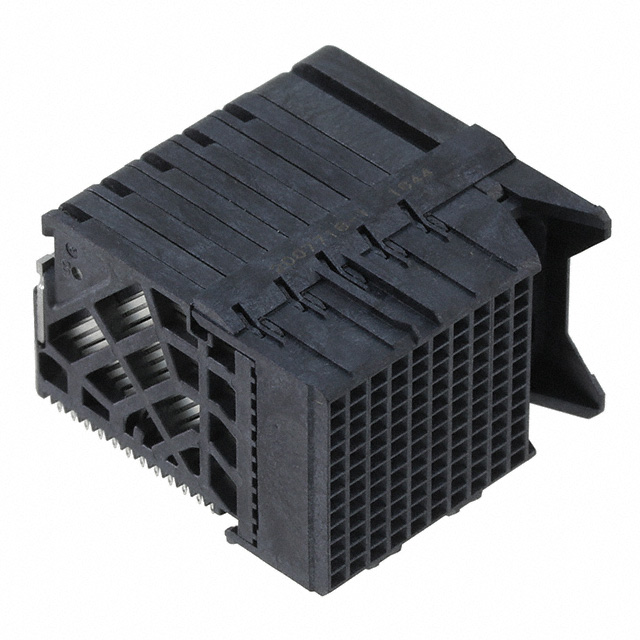

CONN RCPT IMPACT 120POS EDGE MNT
| Part | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Columns | Connector Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Material Flammability Rating | Color | Connector Usage | Features | Voltage Rating | Number of Rows | Termination | Number of Positions | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.76 Ám | 30 Áin | Board Edge Right Angle Through Hole | 10 | Receptacle Female Sockets | Gold | 85 °C | -55 °C | All | UL94 V-0 | Black | Daughtercard | Board Guide | 30 VAC | 12 | Press-Fit | 120 | 0.075 in | 1.91 mm |
