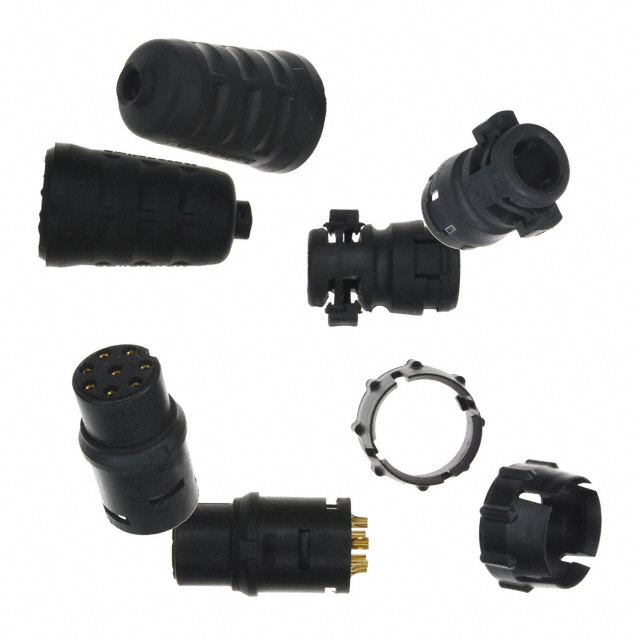

EN3C8F Series

Catalog

CONN PLUG FMALE 8POS SOLDER CUP

Part	Current Rating (Amps)	Features	Cable Opening [diameter]	Cable Opening [diameter]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Applications	Primary Material	Ingress Protection	Insert Material	Number of Positions	Backshell Material, Plating	Material Flammability Rating	Contact Material	Contact Finish - Mating	Mounting Type	Fastening Type	Connector Type	Orientation	Voltage Rating	Termination	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Switchcraft Inc. EN3C8FKX	6.5 A	Backshell Cable Clamp Coupling Nut	4.06 mm 6.73 mm	0.16 in 0.265 in	Black	65 °C	-40 °C	Unshielded	General Purpose Instrumentation Marine Medical	Plastic	IP66/IP68	Elastomer	8	Thermoplastic	UL94 V-0	Copper Alloy	Gold	Free Hanging (In-Line)	Bayonet Lock	Female Sockets Plug	Keyed	250 VAC
Switchcraft Inc. EN3C8FCX	6.5 A	Backshell Cable Clamp Coupling Nut	4.06 mm 6.73 mm	0.16 in 0.265 in	Black	65 °C	-40 °C	Unshielded	General Purpose Instrumentation Marine Medical	Plastic	IP66/IP68	Elastomer	8	Thermoplastic	UL94 V-0	Copper Alloy	Gold	Free Hanging (In-Line)	Bayonet Lock	Female Sockets Plug	Keyed	250 VAC	Crimp
Switchcraft Inc. EN3C8FCXPKG	6.5 A	Backshell Cable Clamp Coupling Nut	4.06 mm 6.73 mm	0.16 in 0.265 in	Black	65 °C	-40 °C	Unshielded	General Purpose Instrumentation Marine Medical	Plastic	IP66/IP68	Elastomer	8	Thermoplastic	UL94 V-0	Copper Alloy	Gold	Free Hanging (In-Line)	Bayonet Lock	Female Sockets Plug	Keyed	250 VAC	Crimp

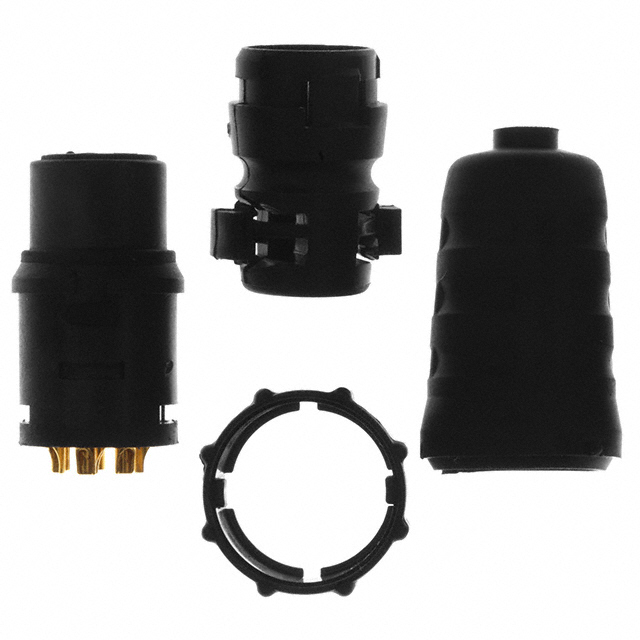

Switchcraft Inc. EN3C8FX	6.5 A	Backshell Cable Clamp Coupling Nut	4.06 mm 6.73 mm	0.16 in 0.265 in	Black	65 °C	-40 °C	Unshielded	General Purpose Instrumentation Marine Medical	Plastic	IP66/IP68	Elastomer	8	Thermoplastic	UL94 V-0	Copper Alloy	Gold	Free Hanging (In-Line)	Bayonet Lock	Female Sockets Plug	Keyed	250 VAC
Switchcraft Inc. EN3C8FLX	6.5 A	Backshell Cable Clamp Coupling Nut			Black	65 °C	-40 °C	Unshielded	General Purpose Instrumentation Marine Medical	Plastic	IP66/IP68	Elastomer	8	Thermoplastic	UL94 V-0	Copper Alloy	Gold	Free Hanging (In-Line)	Bayonet Lock	Female Sockets Plug	Keyed	250 VAC		5.84 mm	0.38 in	9.65 mm	0.23 in
