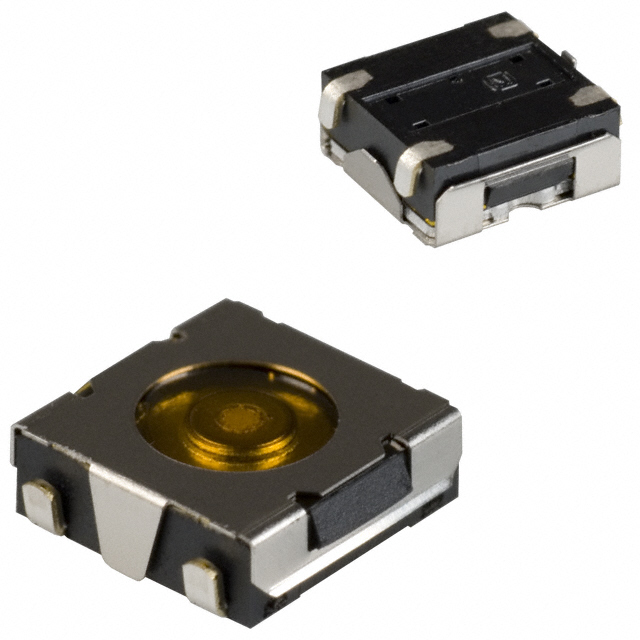

EVQ-QF Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
SWITCH TACTILE SPST-NO 0.02A 15V
| Part | Outline [y] | Outline [x] | Contact Rating @ Voltage [x] | Actuator Orientation | Actuator Height off PCB, Vertical [z] | Circuit | Mechanical Life | Switch Function | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Switch Travel | Operating Force | Illumination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 6.2 mm | 6.2 mm | 0.02 A 15 VDC | Top Actuated | 2 mm | SPST-NO | 100000 Cycles | Off-Mom | Standard | -20 C | 70 °C | J Lead | 0.25 mm | 130 gf | Non-Illuminated | Surface Mount |
