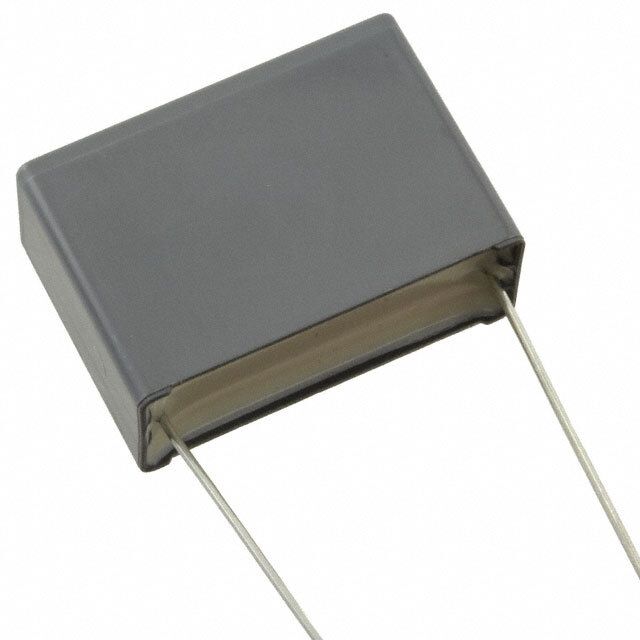

R75RN Series

Manufacturer: KEMET

Catalog

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.082 ΜF, ± 5%, HIGH FREQUENCY

Part	Mounting Type	Ratings	Applications	Lead Spacing	Lead Spacing	Capacitance	Voltage Rating - AC	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Voltage Rating - DC	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Dielectric Material	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
KEMET R75RN282050H3J	Through Hole	AEC-Q200	Automotive High Frequency Switching High Pulse DV/DT	0.886 in	22.5 mm	0.08 µF	600 V	13.6 mOhms	18.6 mm	0.732 in	Radial	1250 V	1.25 kV	-55 C	125 °C	PC Pins	Polypropylene (PP) Metallized	5 %	10 mm	0.394 in	26.5 mm	1.043 in
KEMET R75RN31004030J	Through Hole	AEC-Q200	Automotive High Frequency Switching High Pulse DV/DT	0.886 in	22.5 mm	100000 pF	600 V		18.6 mm	0.732 in	Radial	1250 V	1.25 kV	-55 C	105 ░C	PC Pins	Polypropylene (PP) Metallized	5 %	10 mm	0.394 in	26.5 mm	1.043 in
KEMET R75RN312050H3J	Through Hole	AEC-Q200	Automotive High Frequency Switching High Pulse DV/DT	0.886 in	22.5 mm	0.12 µF	600 V	9.3 mOhms			Radial	1250 V	1.25 kV	-55 C	125 °C	PC Pins	Polypropylene (PP) Metallized	5 %	11 mm	0.433 in	26.5 mm	1.043 in
KEMET R75RN310050H3J	Through Hole	AEC-Q200	Automotive High Frequency Switching High Pulse DV/DT	0.886 in	22.5 mm	100000 pF	600 V	11.1 mOhms	18.6 mm	0.732 in	Radial	1250 V	1.25 kV	-55 C	125 °C	PC Pins	Polypropylene (PP) Metallized	5 %	10 mm	0.394 in	26.5 mm	1.043 in
