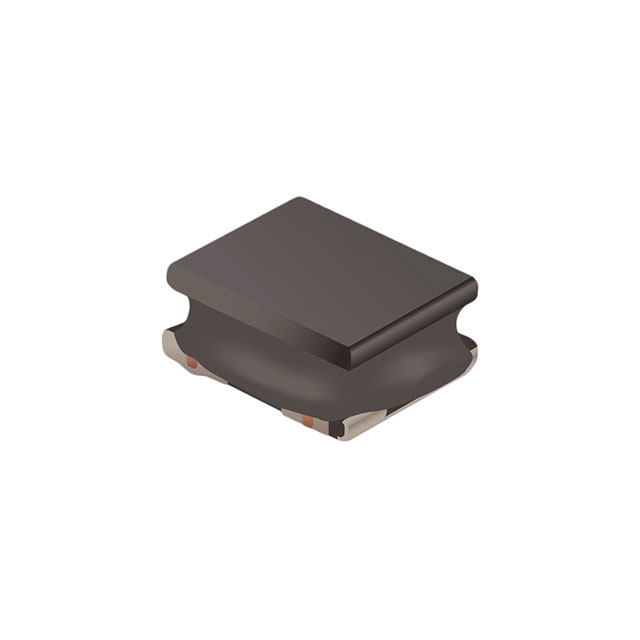

SRN2010TA Series
Manufacturer: Bourns Inc.
Beta
⌘K
POWER INDUCTOR (SMD), 1.5 ΜH, 1.26 A, SEMISHIELDED, 1.46 A, SRN2010TA SERIES, 0806 [2016 METRIC]
| Part | Material - Core | Shielding | Current Rating (Amps) | DC Resistance (DCR) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Frequency - Self Resonant | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Tolerance | Q @ Freq | Inductance | Inductance Frequency - Test | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Ratings | Type | Current - Saturation (Isat) | Q @ Freq [custom] | Q @ Freq [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Ferrite | Shielded | 1.26 A | 130 mOhm | 0.039 in | 1 mm | 140 MHz | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 30 % | 1 MHz 12 | 1.5 µH | 1 MHz | Surface Mount | 125 °C | -40 C | 0806 (2016 Metric) | AEC-Q200 | Drum Core Wirewound | |||
 Bourns Inc. | Ferrite | Shielded | 0.34 A | 1.8 Ohm | 0.039 in | 1 mm | 35 MHz | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 20 % | 1 MHz 16 | 18 µH | 1 MHz | Surface Mount | 125 °C | -40 C | 0806 (2016 Metric) | AEC-Q200 | Drum Core Wirewound | 400 mA | ||
 Bourns Inc. | Ferrite | Shielded | 0.55 A | 500 mOhm | 0.039 in | 1 mm | 52 MHz | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 20 % | 6.8 µH | 1 MHz | Surface Mount | 125 °C | -40 C | 0806 (2016 Metric) | AEC-Q200 | Drum Core Wirewound | 720 mA | 14 | 1 MHz |
