770968 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

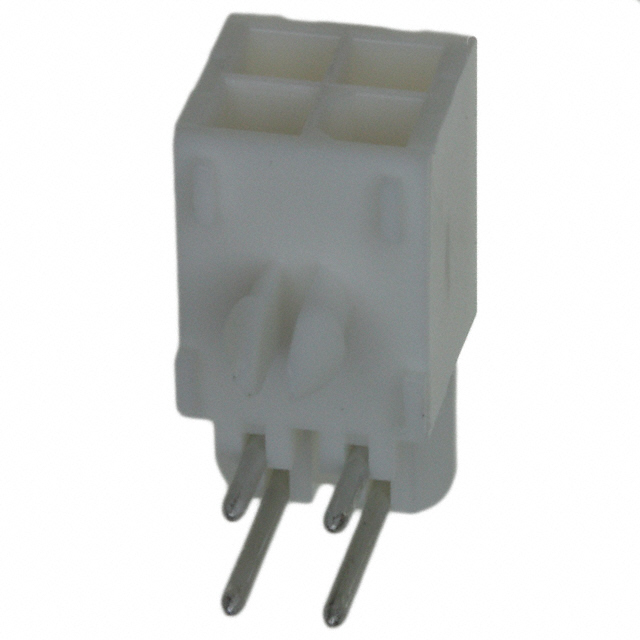

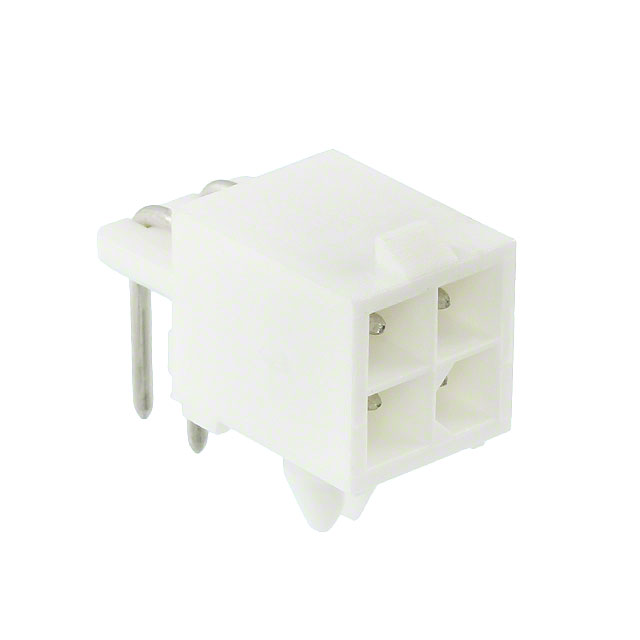

CONN HEADER R/A 4POS 4.14MM
| Part | Contact Finish Thickness - Post | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Mounting Type | Contact Type | Fastening Type | Number of Rows [custom] | Number of Positions Loaded | Features | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Style | Pitch - Mating | Pitch - Mating | Connector Type | Insulation Color | Termination | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Insulation Material | Contact Shape | Voltage Rating | Contact Finish - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height | Insulation Height | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | 0.76 Ám | 30 Áin | Brass | Right Angle Through Hole | Male Pin | Locking Ramp | 2 | All | Board Lock | Shrouded - 4 Wall | -20 ░C | 105 ░C | 4 | Board to Cable/Wire | 0.163 in | 4.14 mm | Header | White | Solder | UL94 V-0 | 3.68 mm | 0.145 in | Varies by Wire Gauge | Nylon Polyamide (PA) | Circular | 600 VAC | Tin-Lead | 4.14 mm | 0.163 in | 9.8 mm | 0.386 in | Gold |
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | 3.81 Ám | 150 Áin | Brass | Right Angle Through Hole | Male Pin | Locking Ramp | 2 | All | Board Lock | Shrouded - 4 Wall | -20 ░C | 85 °C | 4 | Board to Cable/Wire | 0.163 in | 4.14 mm | Header | White | Solder | UL94 V-0 | 3.68 mm | 0.145 in | Varies by Wire Gauge | Nylon Polyamide (PA) | Circular | 600 VAC | Tin-Lead | 4.14 mm | 0.163 in | 9.8 mm | 0.386 in | Tin-Lead |
