TPS7A44 Series
Manufacturer: Texas Instruments
Beta
⌘K
50-MA, 65-V, LOW-IQ, LDO LINEAR VOLTAGE REGULATOR WITH POWER GOOD AND SELECTABLE MID-OUTPUT RAIL
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output (Min/Fixed) | Mounting Type | Output Configuration | Control Features | Protection Features | Voltage - Input (Max) [Max] | Package / Case | Voltage Dropout (Max) [Max] | Current - Quiescent (Iq) | Current - Output | Number of Regulators | PSRR [Max] | PSRR [Min] | Supplier Device Package | Voltage - Output (Max) [Max] | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

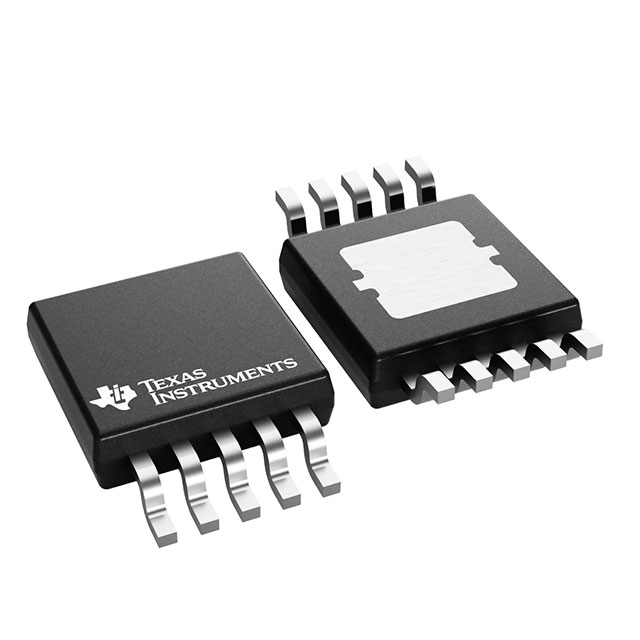

 Texas Instruments | -40 C | 125 °C | 3.3 V | Surface Mount | Positive | Current Limit Enable Power Good | Over Current Over Temperature | 65 V | 10-MSOP 10-TFSOP Exposed Pad | 0.8 V | 9 µA | 50 mA | 1 | 76 dB | 73 dB | 10-HVSSOP | ||

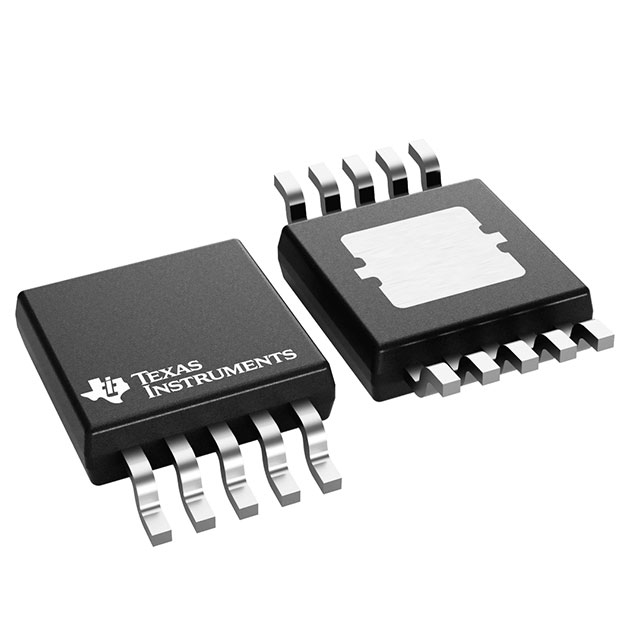

 Texas Instruments | -40 C | 125 °C | 5 V | Surface Mount | Positive | Current Limit Enable Power Good | Over Current Over Temperature | 65 V | 10-MSOP 10-TFSOP Exposed Pad | 0.8 V | 9 µA | 50 mA | 1 | 76 dB | 73 dB | 10-HVSSOP | ||

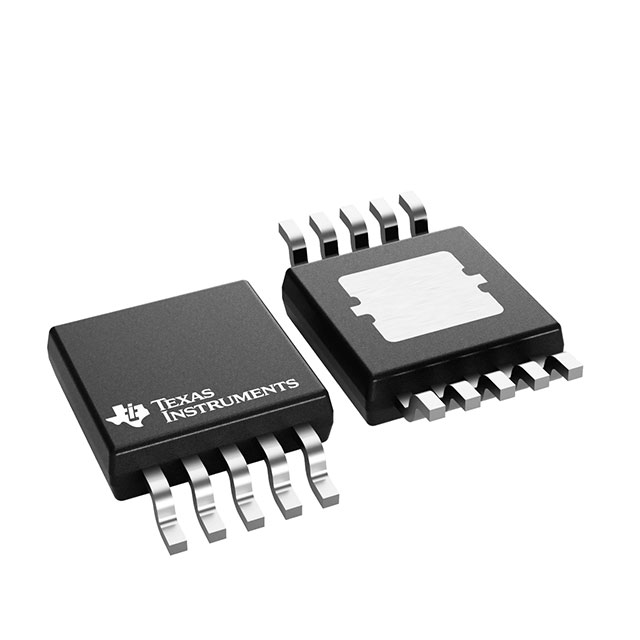

 Texas Instruments | -40 C | 125 °C | 1.24 V | Surface Mount | Positive | Current Limit Enable Power Good | Over Current Over Temperature | 65 V | 10-MSOP 10-TFSOP Exposed Pad | 0.8 V | 9 µA | 50 mA | 1 | 76 dB | 73 dB | 10-HVSSOP | 14.5 V | Adjustable |
