MAXM17543 Series

Catalog

4.5V TO 42V, 2.5A HIGH-EFFICIENCY, DC-DC STEP-DOWN POWER MODULE WITH INTEGRATED INDUCTOR

Part	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Features	Type	Applications	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Current - Output	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output [Min]	Voltage - Output [Max]	Utilized IC / Part	Contents	Regulator Topology	Main Purpose
Analog Devices Inc./Maxim Integrated MAXM17543ALJ+T	2.5 A	125 °C	-40 C	29-SMD Module Exposed Pad	Surface Mount	OCP OTP UVLO	Non-Isolated PoL Module	ITE (Commercial)	12 V	0.9 V	1	42 V	15 mm	2.8 mm	0.35 in	9 mm	0.11 "	0.59 in	4.5 V
Analog Devices Inc./Maxim Integrated MAXM17543ALJ+	2.5 A	125 °C	-40 C	29-SMD Module Exposed Pad	Surface Mount	OCP OTP UVLO	Non-Isolated PoL Module	ITE (Commercial)	12 V	0.9 V	1	42 V	15 mm	2.8 mm	0.35 in	9 mm	0.11 "	0.59 in	4.5 V

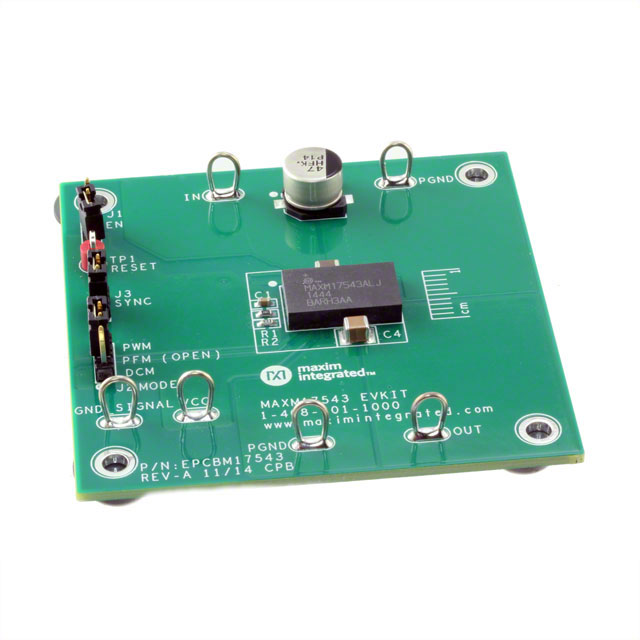

Analog Devices Inc./Maxim Integrated MAXM17543EVKIT#																				Fully Populated	Board(s)	1	1 Non-Isolated Output Non-Isolated	2.5 A	42 V	4.5 V	0.9 V	12 V	MAXM17543	Board(s)	Buck	DC/DC Step Down
