MAX4993 Series

Catalog

IC SWITCH DPDTX1 500MOHM 10UTQFN

Part	Package / Case	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Switch Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Current - Leakage (IS(off)) (Max) [Max]	On-State Resistance (Max) [Max]	Mounting Type	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Crosstalk	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Supplier Device Package	Channel-to-Channel Matching (ΔRon)	Multiplexer/Demultiplexer Circuit	Utilized IC / Part	Contents	Primary Attributes	Function	Supplied Contents	Type
Analog Devices Inc./Maxim Integrated MAX4993EVB+T	10-UFQFN	45 pF	45 pF	DPDT	85 °C	-40 °C	1	100 nA	500 mOhm	Surface Mount	2 µs	630 ms	-110 dB	1.8 V	5.5 V	10-UTQFN (1.4x1.8)	3 mOhm	2:2
Analog Devices Inc./Maxim Integrated MAX4993ELB+T	10-WFDFN	45 pF	45 pF	DPDT	85 °C	-40 °C	1	100 nA	500 mOhm	Surface Mount	2 µs	630 ms	-110 dB	1.8 V	5.5 V	10-µDFN (2x2)	3 mOhm	2:2

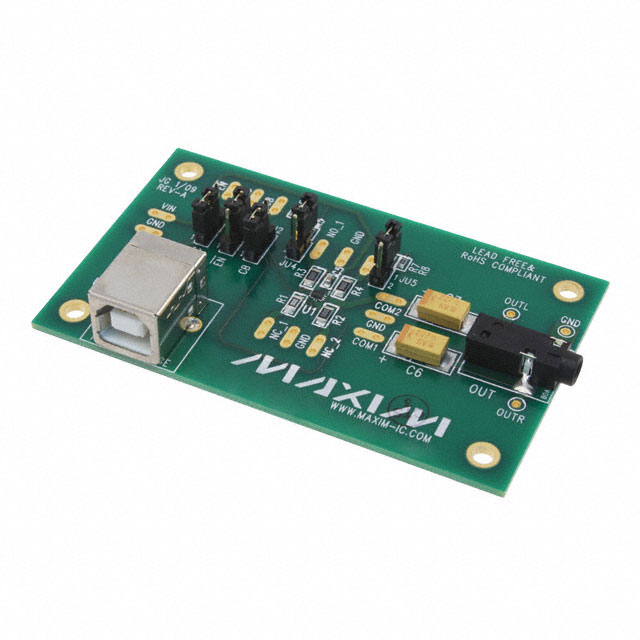

Analog Devices Inc./Maxim Integrated MAX4993EVKIT+																			MAX4993	Board(s)	1 x DPDT Switch	Analog Switch	Board(s)	Interface
