845-138 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 138POS 0.100

...

Part	Color	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Pitch	Pitch	Card Type	Material - Insulation	Read Out	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Number of Positions/Bay/Row [custom]	Contact Finish	Contact Material	Number of Rows [custom]	Contact Type
EDAC Inc. 845-138-500-512	Green	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Through Hole	0.25 Ám	10 Áin	138	0.1 "	2.54 mm	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	125 °C	-40 C	Female	69	Gold	Copper Alloy	2	Cantilever
EDAC Inc. 845-138-559-803	Green	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Right Angle Through Hole	0.25 Ám	10 Áin	138	0.1 "	2.54 mm	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	125 °C	-40 C	Female	69	Gold	Copper Alloy	2	Cantilever

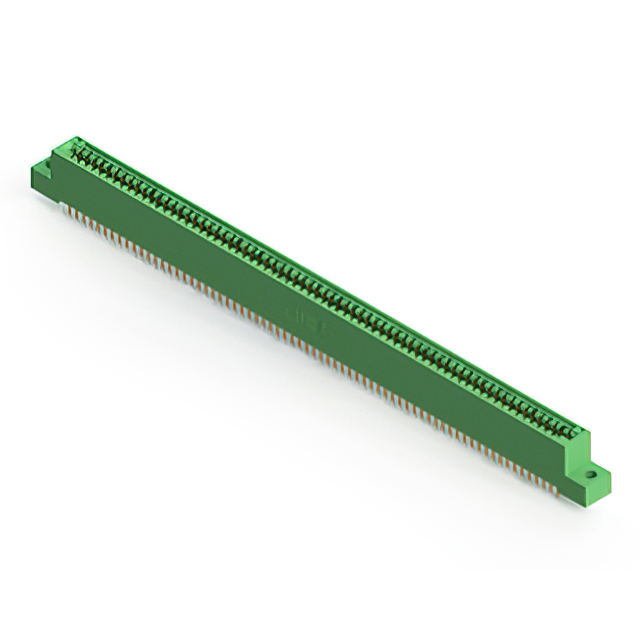

EDAC Inc. 845-138-525-204	Green	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Through Hole	0.25 Ám	10 Áin	138	0.1 "	2.54 mm	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	125 °C	-40 C	Female	69	Gold	Copper Alloy	2	Cantilever
EDAC Inc. 845-138-541-508	Green	4-40 Threaded Insert Top Mount Opening			Through Hole	0.25 Ám	10 Áin	138	0.1 "	2.54 mm	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	125 °C	-40 C	Female	69	Gold	Copper Alloy	2	Cantilever
EDAC Inc. 845-138-542-208	Green	4-40 Flush Mount Threaded Insert Top Opening			Through Hole	0.25 Ám	10 Áin	138	0.1 "	2.54 mm	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	125 °C	-40 C	Female	69	Gold	Copper Alloy	2	Cantilever
EDAC Inc. 845-138-524-507	Green	M3 Threaded Insert Top Mount Opening			Through Hole	0.25 Ám	10 Áin	138	0.1 "	2.54 mm	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	125 °C	-40 C	Female	69	Gold	Copper Alloy	2	Cantilever
EDAC Inc. 845-138-540-807	Green	M3 Threaded Insert Top Mount Opening			Through Hole	0.25 Ám	10 Áin	138	0.1 "	2.54 mm	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	125 °C	-40 C	Female	69	Gold	Copper Alloy	2	Cantilever
EDAC Inc. 845-138-558-812	Green	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Right Angle Through Hole	0.25 Ám	10 Áin	138	0.1 "	2.54 mm	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	125 °C	-40 C	Female	69	Gold	Copper Alloy	2	Cantilever
EDAC Inc. 845-138-540-502	Green		0.128 "	3.25 mm	Through Hole	0.25 Ám	10 Áin	138	0.1 "	2.54 mm	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	125 °C	-40 C	Female	69	Gold	Copper Alloy	2	Cantilever
EDAC Inc. 845-138-541-802	Green		0.128 "	3.25 mm	Through Hole	0.25 Ám	10 Áin	138	0.1 "	2.54 mm	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	125 °C	-40 C	Female	69	Gold	Copper Alloy	2	Cantilever
