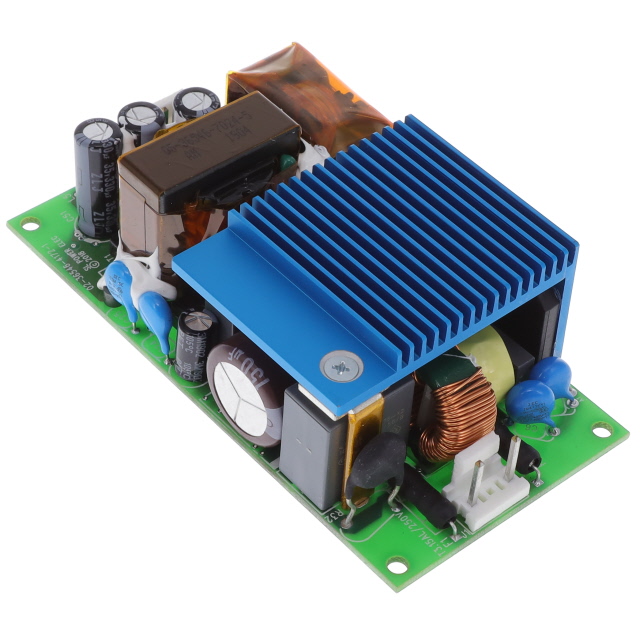

MB120S24 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 24V 98W
| Part | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input [Max] | Voltage - Input [Min] | Type | Current - Output 1 | Approval Agency | Efficiency | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type | Minimum Load Required | Applications | Features | Voltage - Output 1 | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 98 W 120 W | -10 °C | 70 °C | 264 VAC | 80 VAC | Open Frame | 4.1 A | CE | 94 % | 4000 V | 2 in | 1.25 " | 31.8 mm | 50.8 mm | 101.6 mm | 4 in | Chassis Mount | Medical | Universal Input | 24 V | 1 | |
 SL POWER / Advanced Energy | 98 W 120 W | -10 °C | 70 °C | 264 VAC | 80 VAC | Open Frame | 4.1 A | CE | 94 % | 4000 V | 2 in | 1.25 " | 31.8 mm | 50.8 mm | 101.6 mm | 4 in | Chassis Mount | Medical | Universal Input | 24 V | 1 |
