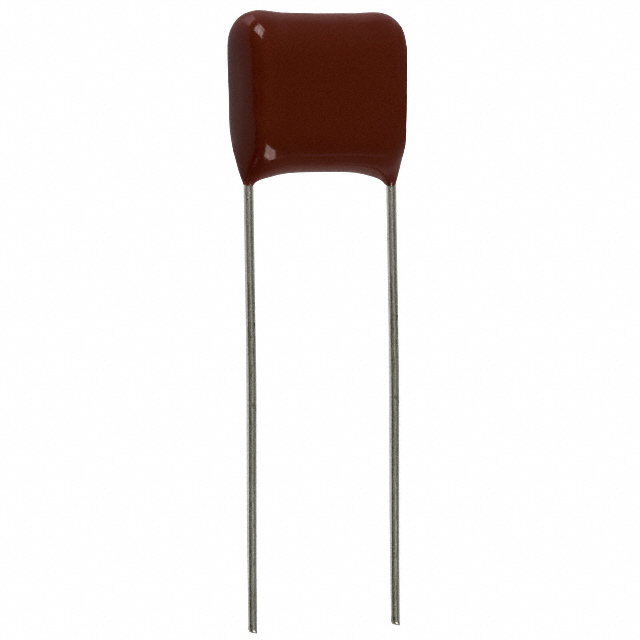

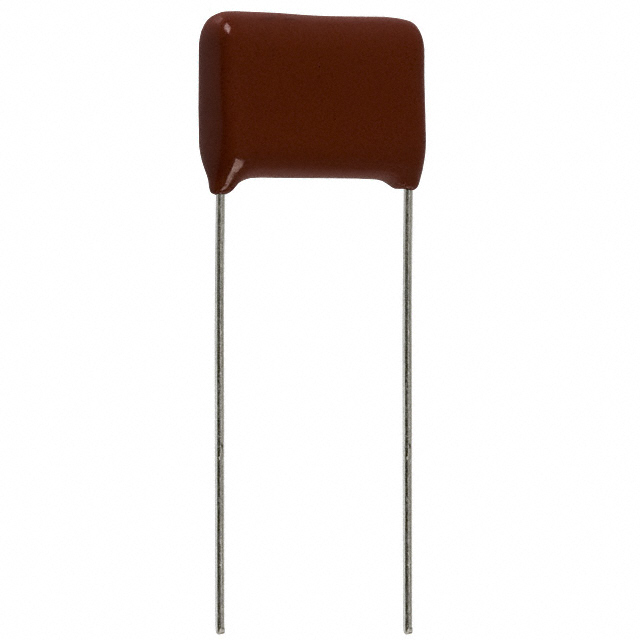

ECQ-E2394 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.39UF 5% 250VDC RADIAL

Part	Voltage Rating - DC	Tolerance	Capacitance	Termination	Package / Case	Dielectric Material	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components ECQ-E2394RJF	250 V	5 %	0.39 µF	PC Pins	Radial	Polyester Metallized	15 mm	0.591 in	0.669 "	17 mm	General Purpose	Through Hole	-40 C	105 ░C	0.728 in	18.5 mm	0.193 in	4.9 mm
Panasonic Electronic Components ECQ-E2394KFW	250 V	10 %	0.39 µF	PC Pins	Radial	Polyester Metallized	10 mm	0.394 in	0.669 "	17 mm	General Purpose	Through Hole	-40 C	105 ░C	0.728 in	18.5 mm	0.193 in	4.9 mm
Panasonic Electronic Components ECQ-E2394KFB	250 V	10 %	0.39 µF	PC Pins	Radial	Polyester Metallized	10 mm	0.394 in	0.669 "	17 mm	General Purpose	Through Hole	-40 C	105 ░C	0.728 in	18.5 mm	0.193 in	4.9 mm
Panasonic Electronic Components ECQ-E2394KFA	250 V	10 %	0.39 µF	PC Pins	Radial	Polyester Metallized					General Purpose	Through Hole	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2394RKF	250 V	10 %	0.39 µF	PC Pins	Radial	Polyester Metallized	15 mm	0.591 in	0.669 "	17 mm	General Purpose	Through Hole	-40 C	105 ░C	0.728 in	18.5 mm	0.193 in	4.9 mm
Panasonic Electronic Components ECQ-E2394JB3	250 V	5 %	0.39 µF	PC Pins	Radial	Polyester Metallized	5 mm	0.197 "			General Purpose	Through Hole	-40 C	105 ░C	0.484 in	12.3 mm	0.224 "	5.7 mm	0.626 in	15.9 mm
Panasonic Electronic Components ECQ-E2394JFB	250 V	5 %	0.39 µF	PC Pins	Radial	Polyester Metallized	10 mm	0.394 in	0.669 "	17 mm	General Purpose	Through Hole	-40 C	105 ░C	0.728 in	18.5 mm	0.193 in	4.9 mm
Panasonic Electronic Components ECQ-E2394RJB	250 V	5 %	0.39 µF	PC Pins	Radial	Polyester Metallized	10 mm	0.394 in			General Purpose	Through Hole	-40 C	105 ░C	0.484 in	12.3 mm	0.224 "	5.7 mm	0.626 in	15.9 mm
Panasonic Electronic Components ECQ-E2394KF	250 V	10 %	0.39 µF	PC Pins	Radial	Polyester Metallized	15 mm	0.591 in	0.512 "		General Purpose	Through Hole	-40 C	105 ░C	0.728 in	18.5 mm	0.193 in	4.9 mm			13 mm
