32K246 Series
Manufacturer: Rosenberger
Beta
⌘K

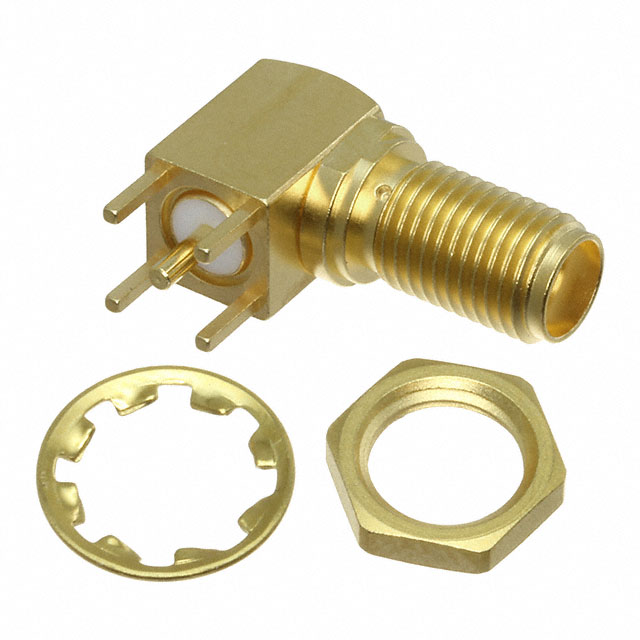

CONN SMA JACK R/A 50OHM PCB
| Part | Body Material | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Center Contact Plating | Voltage Rating | Body Finish | Connector Style | Center Contact Material | Contact Termination | Housing Color | Shield Termination | Frequency - Max [Max] | Impedance | Number of Ports | Connector Type | Mounting Feature | Fastening Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Brass | 1 Connector 1 Lockwasher 1 Nut | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | 480 V | Gold | SMA | Beryllium Copper | Solder | Gold | Solder | 12.4 GHz | 50 Ohms | 1 | Female Socket Jack | Bulkhead - Front Side Nut | Threaded | Panel Mount Right Angle Through Hole |
