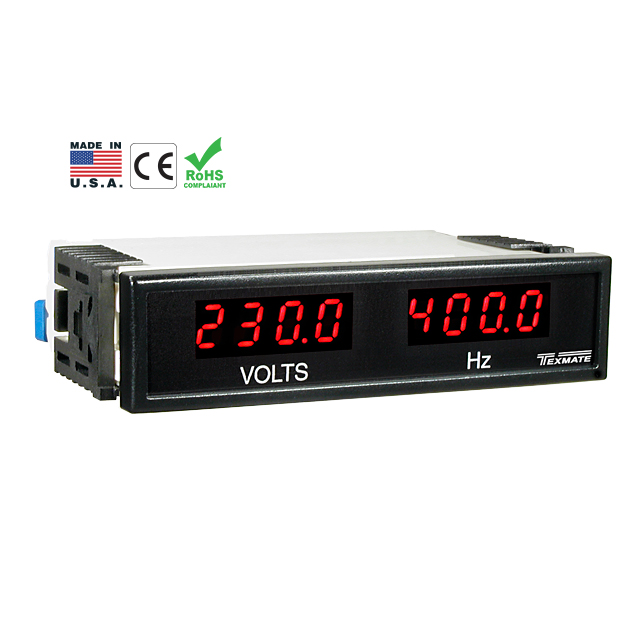

DD-40VH Series
Manufacturer: Texmate
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
ACV & HZ DUAL 4 DIGIT DISPLAY 00
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Measuring Type | Mounting Type | Type | Number of Characters Per Row | Display Characters - Height | Termination Style | Measuring Range (Range 2) Minimum | Measuring Range (Range 2) Maximum | Measuring Range (Range 1) Minimum | Measuring Range (Range 1) Maximum | Display Type | Panel Cutout Shape | Panel Cutout Length | Panel Cutout Width | Voltage - Supply (Range 1 Maximum) | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 2 Maximum) | Voltage - Supply (Range 2 Minimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texmate | 60 °C | 0 °C | Frequency Voltage | Panel Mount | Frequency Meter Voltmeter | 4 characters | 0.3 in | Screw Terminal | 200 Hz | 450 Hz | 30 VAC | 350 VAC | LED - Red Characters | Rectangular | 96 mm | 24 mm | 265 VAC | 85 VAC | 380 VDC | 90 VDC |
