DAM7 Series

Catalog

CONN D-SUB RCPT 7POS VERT SLDR

Part	Flange Feature	Number of Rows	Contact Type	Connector Style	Mounting Type	Shell Material, Finish	Contact Material	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Termination	Contact Finish	Dielectric Material	Voltage Rating	Shell Size, Connector Layout	Current Rating (Amps)	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol ICC (FCI) DAM7W2S300N	Housing/Shell (Unthreaded)	2	Signal and Power	Combo D-Sub	Through Hole	Steel Yellow Cadmium Plated	Phosphor Bronze	UL94 V-0	7	2	Solder	Gold	Thermoplastic	300 VDC	2 (DA A) - 7W2	7.5 A	Receptacle Female Sockets	-55 °C	125 °C

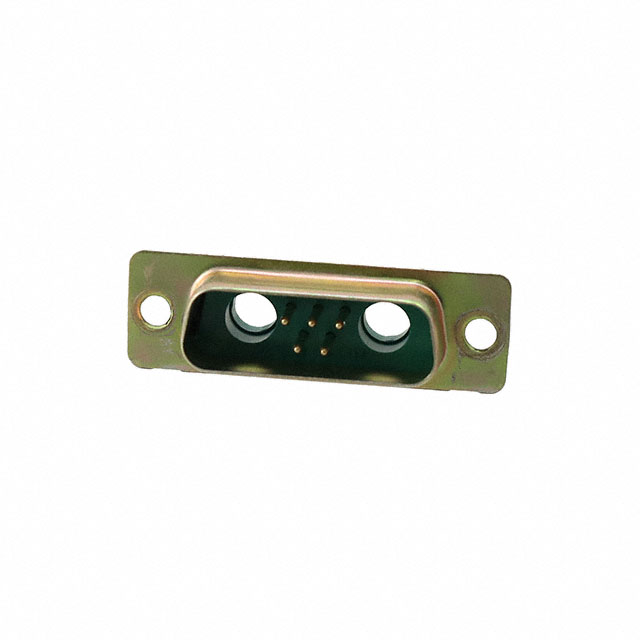

Amphenol ICC (FCI) DAM7W2PN	Housing/Shell (Unthreaded)	2	Signal and Power	Combo D-Sub	Free Hanging (In-Line)	Steel Yellow Cadmium Plated	Phosphor Bronze	UL94 V-0	7	2		Gold	Thermoplastic	300 VDC	2 (DA A) - 7W2	7.5 A	Male Pins Plug	-55 °C	125 °C

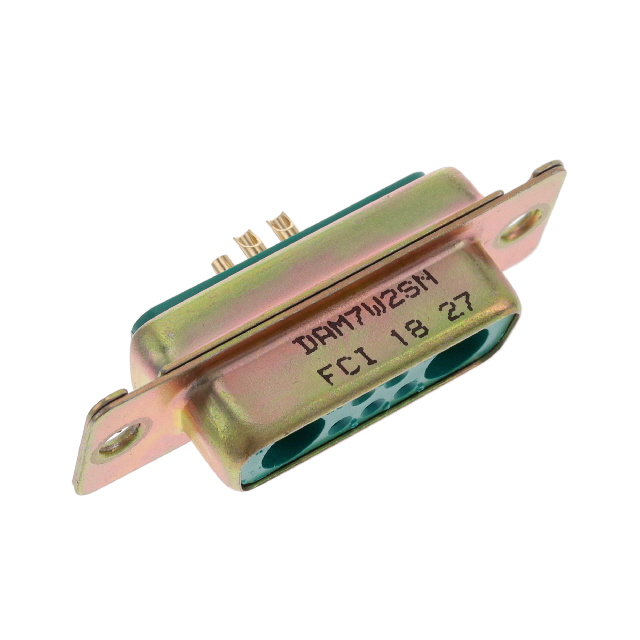

Amphenol ICC (FCI) DAM7W2SN	Housing/Shell (Unthreaded)	2	Signal and Power	Combo D-Sub	Free Hanging (In-Line)	Steel Yellow Cadmium Plated	Phosphor Bronze	UL94 V-0	7	2		Gold	Thermoplastic	300 VDC	2 (DA A) - 7W2	7.5 A	Receptacle Female Sockets	-55 °C	125 °C
