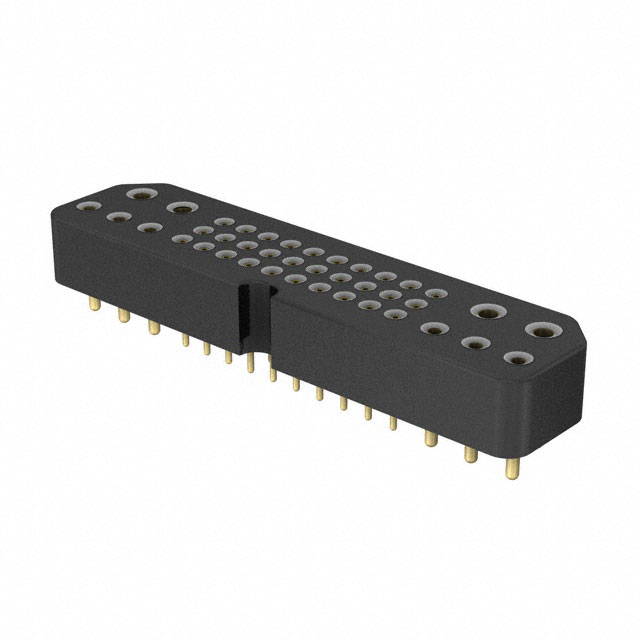

809-43 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN RCPT 40POS GOLD PCB
| Part | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Contact Material | Contact Finish - Post | Number of Positions Loaded | Contact Type | Contact Finish - Mating | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Mated Stacking Heights | Number of Positions [custom] | Number of Positions [custom] | Connector Type | Insulation Height | Insulation Height | Termination | Contact Length - Post | Contact Length - Post | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Circular | 200 µin | 5.08 µm | Polyphenylene Sulfide (PPS) | Beryllium Copper | Tin | All | Female Socket | Gold | Black | 0.76 Ám | 30 Áin | Push-Pull | 10.54 mm | 10 | 30 | Receptacle | 6.35 mm | 0.25 in | Solder | 0.125 in | 3.18 mm | Through Hole |
