50A90 Series

Catalog

SWITCH ROTARY 4POS 150MA 115V

Part	Panel Cutout Dimensions [diameter]	Contact Timing	Depth Behind Panel [custom]	Index Stops	Mounting Type	Number of Poles per Deck	Actuator Length [x]	Circuit per Deck	Number of Decks [custom]	Current Rating (Amps)	Voltage Rating - DC	Number of Positions	Termination Style	Angle of Throw	Contact Finish	Voltage Rating - AC	Actuator Type
Grayhill Inc. 50A90-01-1-04N-F	6.45 mm	Non-Shorting (BBM)	18.77 mm	Fixed	Panel Mount	1	9.53 mm	SP4T	1	150 mA 200 mA	28 V	4	Solder Lug	90 °	Gold	115 V	Flatted (3.17mm Dia)

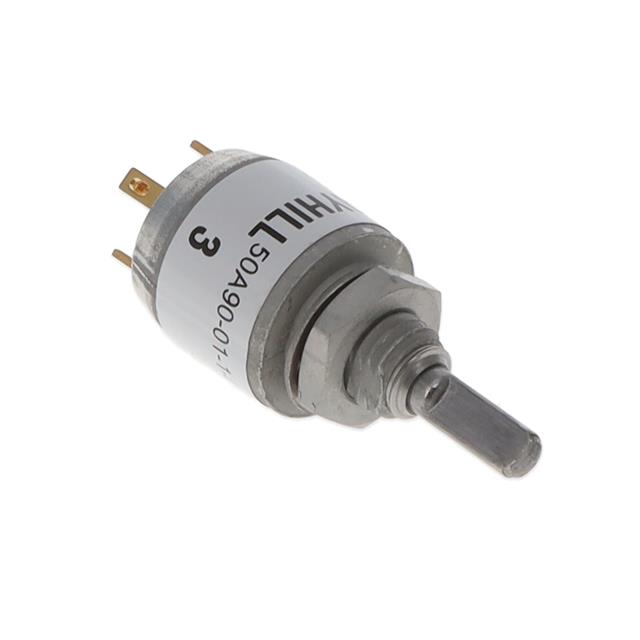

Grayhill Inc. 50A90-01-1-02N	6.45 mm	Non-Shorting (BBM)	18.77 mm	Fixed	Panel Mount	1	9.53 mm	SPDT	1	150 mA 200 mA	28 V	2	Solder Lug	90 °	Gold	115 V	Flatted (3.17mm Dia)
Grayhill Inc. 50A90-01-2-02N	6.45 mm	Non-Shorting (BBM)	18.77 mm	Fixed	Panel Mount	2	9.53 mm	DPDT	1	150 mA 200 mA	28 V	2	Solder Lug	90 °	Gold	115 V	Flatted (3.17mm Dia)
Grayhill Inc. 50A90-01-1-04N	6.45 mm	Non-Shorting (BBM)	18.77 mm	Continuous	Panel Mount	1	9.53 mm	SP4T	1	150 mA 200 mA	28 V	4	Solder Lug	90 °	Gold	115 V	Flatted (3.17mm Dia)
