3490-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN .040-.050".120"L

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Length - Overall [x]	Length - Overall [x]	Contact Material	Mounting Hole Diameter	Mounting Hole Diameter	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Finish	Socket Depth [z]	Socket Depth [z]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Tail Diameter [diameter]	Tail Diameter [diameter]	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 3490-0-15-01-02-27-10-0	-55 C	125 °C	Knurled Press-Fit	7.92 mm	0.312 "	Beryllium Copper	2.31 mm	0.091 in	2.77 mm	0.109 in	0.04 in	1.27 mm	1.02 mm	0.05 in	Gold	4.06 mm	0.16 "	30 Áin	0.76 Ám	0.068 "	1.73 mm	Turret

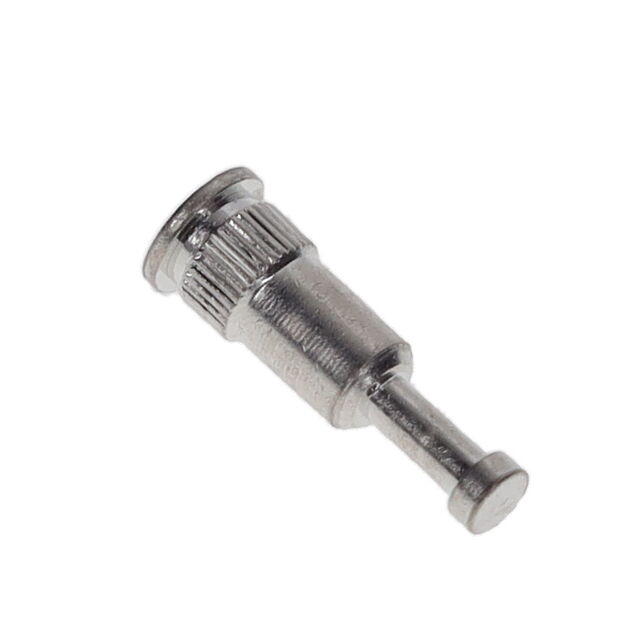

Mill-Max Manufacturing Corp. 3490-0-15-01-02-01-10-0	-55 C	125 °C	Knurled Press-Fit	7.92 mm	0.312 "	Beryllium Copper	2.31 mm	0.091 in	2.77 mm	0.109 in	0.04 in	1.27 mm	1.02 mm	0.05 in	Tin-Lead	4.06 mm	0.16 "	200 Áin	5.08 Ám	0.068 "	1.73 mm	Turret
Mill-Max Manufacturing Corp. 3490-0-15-80-02-27-10-0			Press-Fit	7.92 mm	0.312 "	Beryllium Copper	2.31 mm	0.091 in	2.77 mm	0.109 in	0.04 in	1.27 mm	1.02 mm	0.05 in	Gold			30 Áin	0.76 Ám	0.068 "	1.73 mm	Turret	0.059 in	1.5 mm	0.088 "	2.24 mm
Mill-Max Manufacturing Corp. 3490-0-15-80-02-80-10-0			Press-Fit	7.92 mm	0.312 "	Beryllium Copper	2.31 mm	0.091 in	2.77 mm	0.109 in	0.04 in	1.27 mm	1.02 mm	0.05 in	Tin			200 Áin	5.08 Ám	0.068 "	1.73 mm	Turret	0.059 in	1.5 mm	0.088 "	2.24 mm
Mill-Max Manufacturing Corp. 3490-0-15-80-02-14-10-0			Press-Fit	7.92 mm	0.312 "	Beryllium Copper	2.31 mm	0.091 in	2.77 mm	0.109 in	0.04 in	1.27 mm	1.02 mm	0.05 in	Gold			10 Áin	0.25 Ám	0.068 "	1.73 mm	Turret	0.059 in	1.5 mm	0.088 "	2.24 mm
Mill-Max Manufacturing Corp. 3490-0-15-15-02-14-10-0			Press-Fit	7.92 mm	0.312 "	Beryllium Copper	2.31 mm	0.091 in	2.77 mm	0.109 in	0.04 in	1.27 mm	1.02 mm	0.05 in	Gold			10 Áin	0.25 Ám	0.068 "	1.73 mm	Turret	0.059 in	1.5 mm	0.088 "	2.24 mm
