TPS62590-Q1 Series

Automotive 2.5V to 6V, 2.25MHz Fixed Frequency 1A Buck Converter in 2x2mm SON Package

Catalog

Automotive 2.5V to 6V, 2.25MHz Fixed Frequency 1A Buck Converter in 2x2mm SON Package

Part	Frequency - Switching	Function	Mounting Type	Current - Output	Voltage - Input (Min) [Min]	Number of Outputs	Output Type	Topology	Voltage - Output (Min/Fixed)	Output Configuration	Supplier Device Package	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Regulator Topology	Main Purpose	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Board Type	Voltage - Output	Utilized IC / Part	Grade	Qualification
Texas Instruments TPS62590DRVR	2.25 MHz	Step-Down	Surface Mount	1 A	2.5 V	1	Adjustable	Buck	0.75 V	Positive	6-WSON (2x2)	5.5 V	5.5 V	85 °C	-40 °C

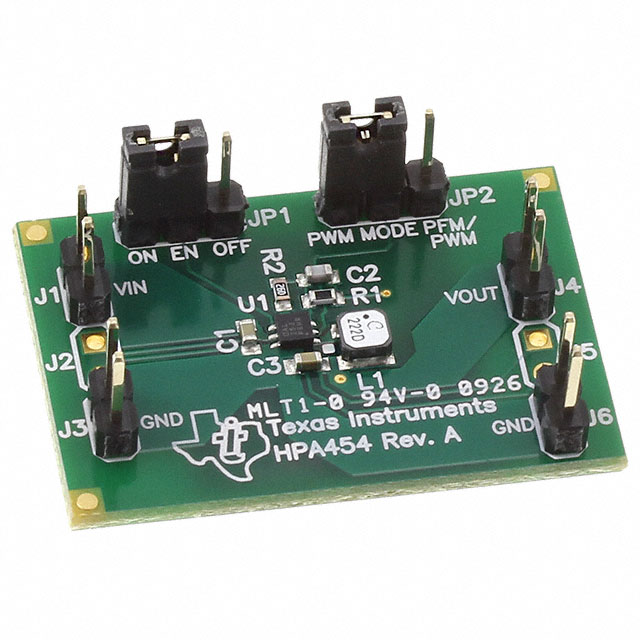

Texas Instruments TPS62590EVM-454	2.25 MHz			1 A												Buck	DC/DC Step Down	Board(s)	2.5 V	5.5 V	Non-Isolated	1	Fully Populated	1.8 V	TPS62590
Texas Instruments TPS62590TDRVRQ1	2.25 MHz	Step-Down	Surface Mount	1 A	2.5 V	1	Adjustable	Buck	0.75 V	Positive	6-WSON (2x2)	6 V		105 °C	-40 °C											Automotive	AEC-Q100

Catalog

Automotive 2.5V to 6V, 2.25MHz Fixed Frequency 1A Buck Converter in 2x2mm SON Package

Key Features

• Qualified for Automotive ApplicationsOutput Current up to 1000 mAInput Voltage Range from 2.5 V to 6 VHigh Efficiency Step Down ConverterOutput Voltage Accuracy in PWM mode ±2.5%Typical 15-µA Quiescent Current2.25 MHz Fixed Frequency OperationPower Save Mode at Light Load Currents100% Duty Cycle for Lowest DropoutQualified for Automotive ApplicationsOutput Current up to 1000 mAInput Voltage Range from 2.5 V to 6 VHigh Efficiency Step Down ConverterOutput Voltage Accuracy in PWM mode ±2.5%Typical 15-µA Quiescent Current2.25 MHz Fixed Frequency OperationPower Save Mode at Light Load Currents100% Duty Cycle for Lowest Dropout

Description

The TPS62590-Q1 device is a high-efficiency synchronous step-down converter, optimized for space constrained applications and very low quiescent current requirements. It provides up to 1000-mA output current from preregulated low voltage rails and consumes 15 µA (typical) in power-save mode. With an input voltage range of 2.5 V to 6 V and an output voltage accuracy of 2.5%, the device is targeted to power a large variety of automotive applications. The TPS62590-Q1 family operates at a 2.25-MHz fixed switching frequency and enters a power-save mode at light load currents to maintain a high efficiency over the entire load current range. The power-save mode is optimized for low output-voltage ripple. For low-noise applications, the device can be forced into fixed-frequency PWM mode by pulling the MODE pin high. In the shutdown mode, the current consumption is reduced to less than 1 µA. The TPS62590-Q1 allows the use of small inductors and capacitors to achieve a small solution size. The TPS62590-Q1 is available in a 2-mm × 2-mm 6-pin SON package with a thermal pad for improved thermal performance. The TPS62590-Q1 device is a high-efficiency synchronous step-down converter, optimized for space constrained applications and very low quiescent current requirements. It provides up to 1000-mA output current from preregulated low voltage rails and consumes 15 µA (typical) in power-save mode. With an input voltage range of 2.5 V to 6 V and an output voltage accuracy of 2.5%, the device is targeted to power a large variety of automotive applications. The TPS62590-Q1 family operates at a 2.25-MHz fixed switching frequency and enters a power-save mode at light load currents to maintain a high efficiency over the entire load current range. The power-save mode is optimized for low output-voltage ripple. For low-noise applications, the device can be forced into fixed-frequency PWM mode by pulling the MODE pin high. In the shutdown mode, the current consumption is reduced to less than 1 µA. The TPS62590-Q1 allows the use of small inductors and capacitors to achieve a small solution size. The TPS62590-Q1 is available in a 2-mm × 2-mm 6-pin SON package with a thermal pad for improved thermal performance.
