SC39-12 Series

Catalog

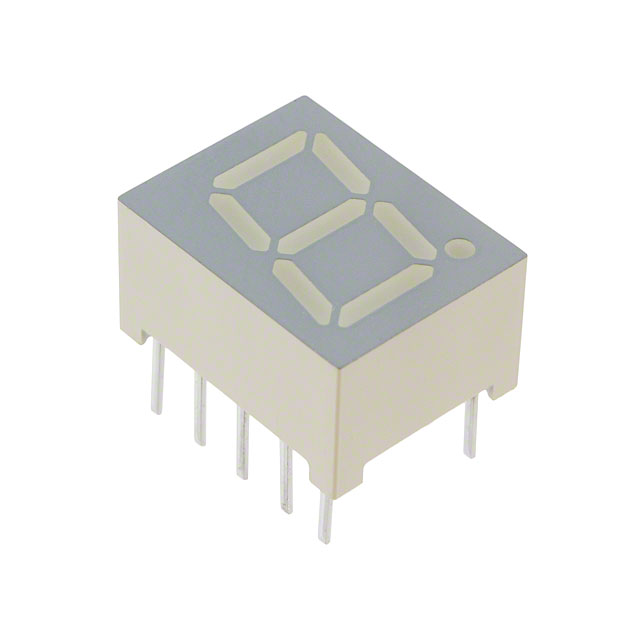

DISPLAY 7SEG 0.39" SGL GRN 10DIP

Part	Display Type	Wavelength - Peak	Common Pin	Current - Test	Voltage - Forward (Vf) (Typ)	Color	Number of Characters	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Millicandela Rating
Kingbright SC39-12GWA	7-Segment	565 nm	Common Cathode	20 mA	2.2 V	Green	1	10 mm	0.39 in	62.5 mW	7 mm	0.394 in	0.276 in	13 mm	10 mm	0.512 "	10-DIP (0.300" 7.62mm)
Kingbright SC39-12YWA	7-Segment	590 nm	Common Cathode	20 mA	2.1 V	Yellow	1	10 mm	0.39 in	75 mw	7 mm	0.394 in	0.276 in	13 mm	10 mm	0.512 "	10-DIP (0.300" 7.62mm)	3 mcd
Kingbright SC39-12EWA	7-Segment	627 nm	Common Cathode	20 mA	2 V	Red	1	10 mm	0.39 in	75 mw	7 mm	0.394 in	0.276 in	13 mm	10 mm	0.512 "	10-DIP (0.300" 7.62mm)	4.1 mcd
Kingbright SC39-12SRWA	7-Segment	660 nm	Common Cathode	20 mA	1.85 V	Red	1	10 mm	0.39 in	75 mw	7 mm	0.394 in	0.276 in	13 mm	10 mm	0.512 "	10-DIP (0.300" 7.62mm)	17 mcd
Kingbright SC39-12SYKWA	7-Segment	590 nm	Common Cathode	20 mA	2 V	Yellow	1	10 mm	0.39 in	75 mw	7 mm	0.394 in	0.276 in	13 mm	10 mm	0.512 "	10-DIP (0.300" 7.62mm)	86 mcd

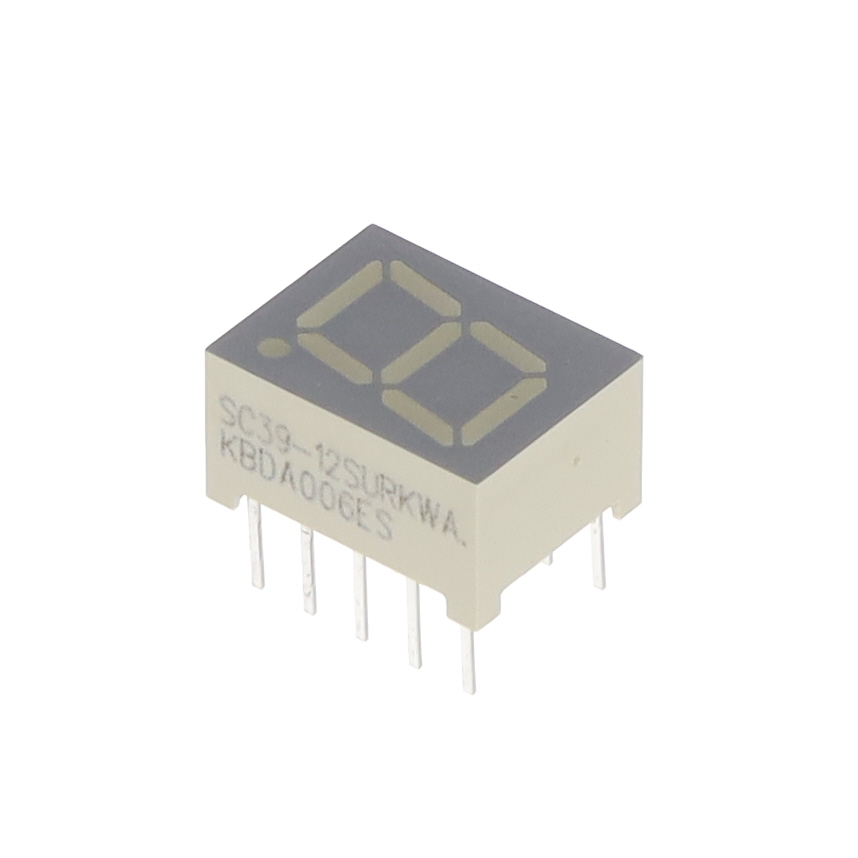

Kingbright SC39-12SURKWA	7-Segment	645 nm	Common Cathode	20 mA	1.95 V	Red	1	10 mm	0.39 in	75 mw	7 mm	0.394 in	0.276 in	13 mm	10 mm	0.512 "	10-DIP (0.300" 7.62mm)	46 mcd
