054132 Series

Manufacturer: Molex

Catalog

CONN FFC BOTTOM 40POS 0.5MM R/A

Part	Voltage Rating	Cable End Type	Mounting Type	Contact Finish	Flat Flex Type	Connector/Contact Type	Termination	Height Above Board	Height Above Board	Features	FFC, FCB Thickness	Pitch [x]	Pitch [x]	Material Flammability Rating	Housing Material	Current Rating (Amps)	Number of Positions	Contact Material	Locking Feature	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Contact Finish Thickness	Contact Finish Thickness	Actuator Color	Mating Cycles	Housing Color
Molex 0541324092	50 V	Straight Tapered	Surface Mount Right Angle	Tin-Lead	FFC FPC	Contacts Bottom	Solder	0.079 in	2 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	0.5 mm	0.02 in	UL94 V-0	Polyamide (PA46) Nylon 4/6	0.5 A	40	Phosphor Bronze	Slide Lock	85 °C	-20 C	Polyphenylene Sulfide (PPS)
Molex 0541323533	50 V	Straight Tapered	Surface Mount Right Angle	Tin Bismuth	FFC FPC	Contacts Bottom	Solder	0.079 in	2 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	0.5 mm	0.02 in	UL94 V-0	Polyamide (PA) Nylon Glass Filled	0.5 A	35	Phosphor Bronze	Slide Lock	85 °C	-40 °C	Polyphenylene Sulfide (PPS) Glass Filled	39.4 Áin	1 Ám	Black	20	Natural

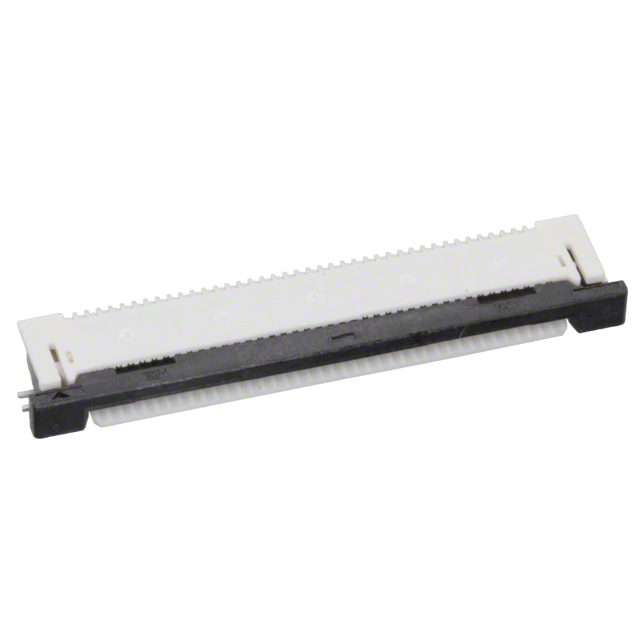

Molex 0541324033	50 V	Straight Tapered	Surface Mount Right Angle	Tin Bismuth	FFC FPC	Contacts Bottom	Solder	0.079 in	2 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	0.5 mm	0.02 in	UL94 V-0	Polyamide (PA) Nylon Glass Filled	0.5 A	40	Phosphor Bronze	Slide Lock	85 °C	-40 °C	Polyphenylene Sulfide (PPS) Glass Filled	39.4 Áin	1 Ám	Black	20	Natural

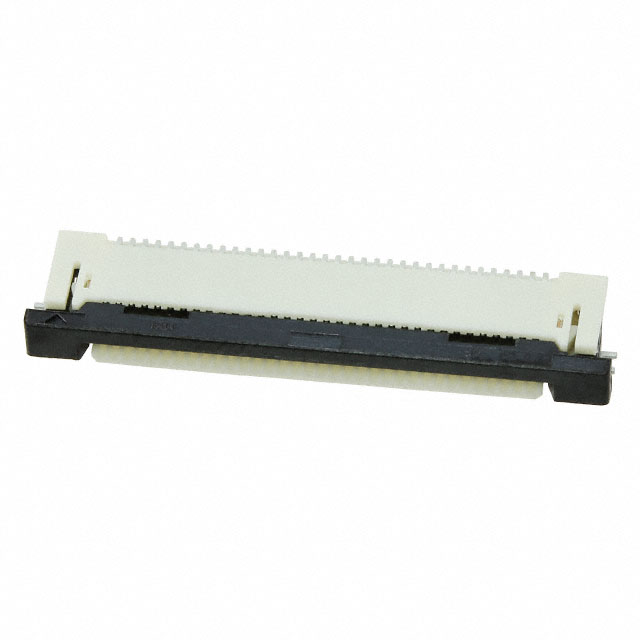

Molex 0541323433	50 V	Straight Tapered	Surface Mount Right Angle	Tin Bismuth	FFC FPC	Contacts Bottom	Solder	0.079 in	2 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	0.5 mm	0.02 in	UL94 V-0	Polyamide (PA) Nylon Glass Filled	0.5 A	34	Phosphor Bronze	Slide Lock	85 °C	-40 °C	Polyphenylene Sulfide (PPS) Glass Filled	39.4 Áin	1 Ám	Black	20	Natural

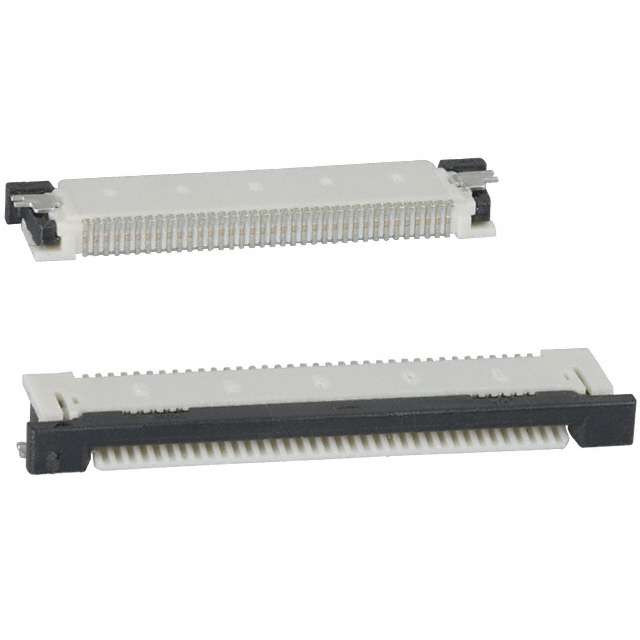

Molex 0541323697	50 V	Straight Tapered	Surface Mount Right Angle	Tin Bismuth	FFC FPC	Contacts Bottom	Solder	0.079 in	2 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	0.5 mm	0.02 in	UL94 V-0	Polyamide (PA46) Nylon 4/6	0.5 A	36	Phosphor Bronze	Slide Lock	85 °C	-20 C	Polyphenylene Sulfide (PPS)	39.4 Áin	1 Ám		20
Molex 0541324333	50 V	Straight Tapered	Surface Mount Right Angle	Tin Bismuth	FFC FPC	Contacts Bottom	Solder	0.079 in	2 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	0.5 mm	0.02 in	UL94 V-0	Polyamide (PA) Nylon Glass Filled	0.5 A	43	Phosphor Bronze	Slide Lock	85 °C	-40 °C	Polyphenylene Sulfide (PPS) Glass Filled	39.4 Áin	1 Ám	Black	20	Natural

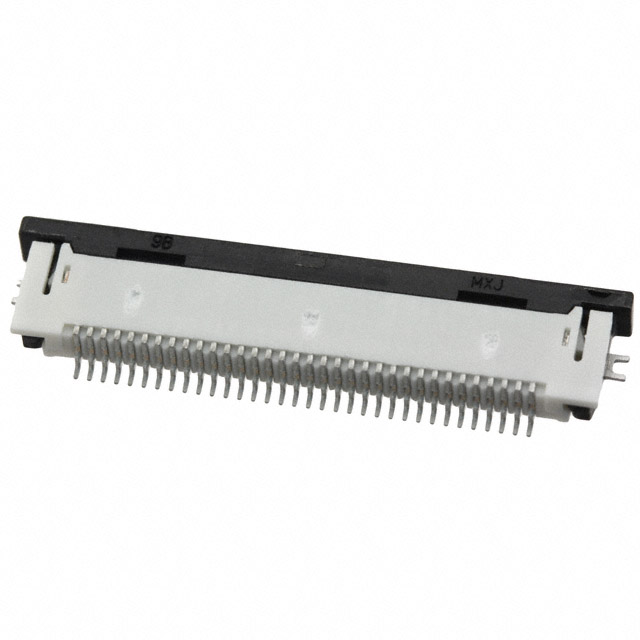

Molex 0541323497	50 V	Straight Tapered	Surface Mount Right Angle	Tin Bismuth	FFC FPC	Contacts Bottom	Solder	0.079 in	2 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	0.5 mm	0.02 in	UL94 V-0	Polyamide (PA46) Nylon 4/6	0.5 A	34	Phosphor Bronze	Slide Lock	85 °C	-40 °C	Polyphenylene Sulfide (PPS)	39.4 Áin	1 Ám		20

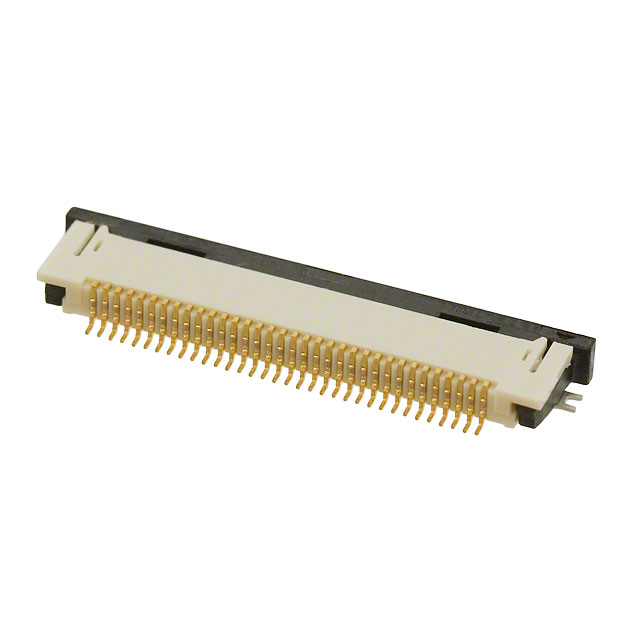

Molex 0541323462	50 V	Straight Tapered	Surface Mount Right Angle	Gold	FFC FPC	Contacts Bottom	Solder	0.079 in	2 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	0.5 mm	0.02 in	UL94 V-0	Glass Filled Nylon 4/6 Polyamide (PA46)	0.5 A	34	Phosphor Bronze	Slide Lock	85 °C	-20 C	Polyphenylene Sulfide (PPS) Glass Filled			Black	20	White
Molex 0541323297	50 V	Straight Tapered	Surface Mount Right Angle	Tin Bismuth	FFC FPC	Contacts Bottom	Solder	0.079 in	2 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	0.5 mm	0.02 in	UL94 V-0	Polyamide (PA46) Nylon 4/6	0.5 A		Phosphor Bronze	Slide Lock	85 °C	-40 °C	Polyphenylene Sulfide (PPS)	39.4 Áin	1 Ám		20
Molex 0541325092	50 V	Straight Tapered	Surface Mount Right Angle	Tin-Lead	FFC FPC	Contacts Bottom	Solder	0.079 in	2 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	0.5 mm	0.02 in	UL94 V-0	Polyamide (PA46) Nylon 4/6	0.5 A	50	Phosphor Bronze	Slide Lock	85 °C	-20 C	Polyphenylene Sulfide (PPS)
