ANT1606 Series
Manufacturer: Pulse Electronics
Beta
⌘K

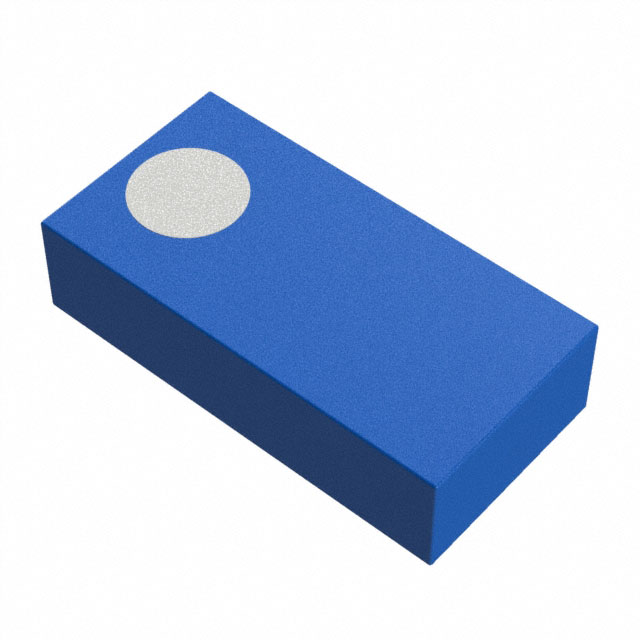

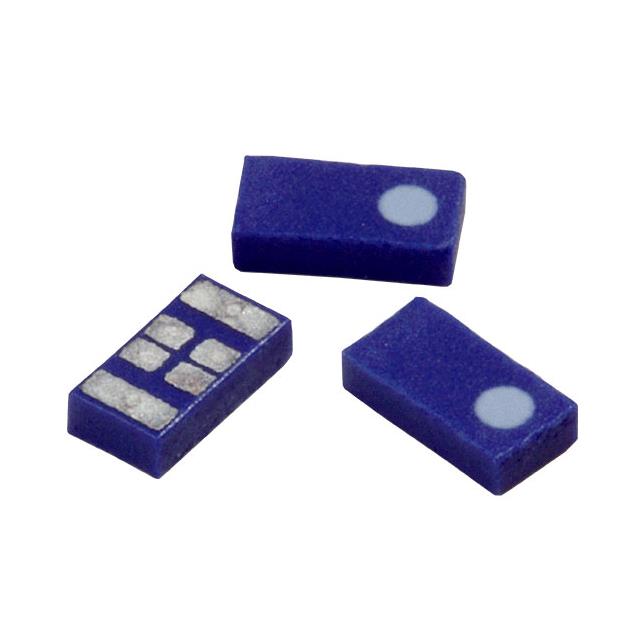

RF ANT 2.45GHZ/5.5GHZ CHIP SLD
| Part | Antenna Type | Frequency Group | Termination | Frequency (Center/Band) | Gain | Mounting Type | Number of Bands | Applications | Height (Max) [z] | Height (Max) [z] | Power - Max [Max] | Return Loss | Frequency Range [Max] | Frequency Range [Min] | RF Family/Standard | VSWR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Chip | SHF UHF | Solder | 2.45 GHz 5.5 GHz | 3.11 dBi 3.43 dBi | Surface Mount | 2 | ISM Wi-Fi | 0.4 mm | 0.016 in | 1 W | |||||
 Pulse Electronics | Chip | SHF UHF | Solder | 2.4 GHz 6.1375 GHz | 3.65 dBi 3.69 dBi | Surface Mount | 2 | Wi-Fi 6E | 0.4 mm | 0.016 in | 1 W | 7 dB | 7.125 GHz | 5.15 GHz | WiFi | |
 Pulse Electronics | Chip | Solder | 2 dBi | Surface Mount | 1 | Bluetooth ISM Wi-Fi Zigbee™ | 0.4 mm | 0.016 in | 1 W | 2.5 GHz | 2.4 GHz | 6 |
