114-87 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONN IC DIP SOCKET 32POS GOLD
| Part | Current Rating (Amps) | Contact Resistance | Material Flammability Rating | Termination Post Length | Termination Post Length | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Post | Pitch - Post | Housing Material | Number of Positions or Pins (Grid) | Contact Finish - Mating | Mounting Type | Pitch - Mating | Pitch - Mating | Termination | Contact Finish - Post | Type [custom] | Type [custom] | Type | Features | Contact Finish Thickness - Mating | Contact Material - Post [custom] | Contact Material - Mating | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Type | Type | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

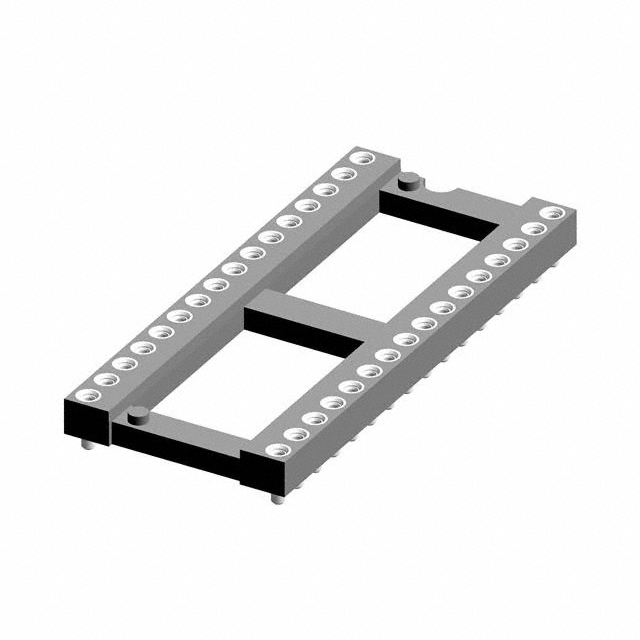

 Preci-Dip | 1 A | 10 mOhm | UL94 V-0 | 0.047 in | 1.2 mm | -55 C | 125 °C | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 32 | Gold | Surface Mount | 0.1 " | 2.54 mm | Solder | Tin | 15.24 mm | 0.6 in | DIP | Open Frame | Flash | Brass | Beryllium Copper | ||||||
 Preci-Dip | 1 A | 10 mOhm | UL94 V-0 | 0.047 in | 1.2 mm | -55 C | 125 °C | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 42 | Gold | Surface Mount | 0.1 " | 2.54 mm | Solder | Tin | 15.24 mm | 0.6 in | DIP | Open Frame | Flash | Brass | Beryllium Copper | ||||||

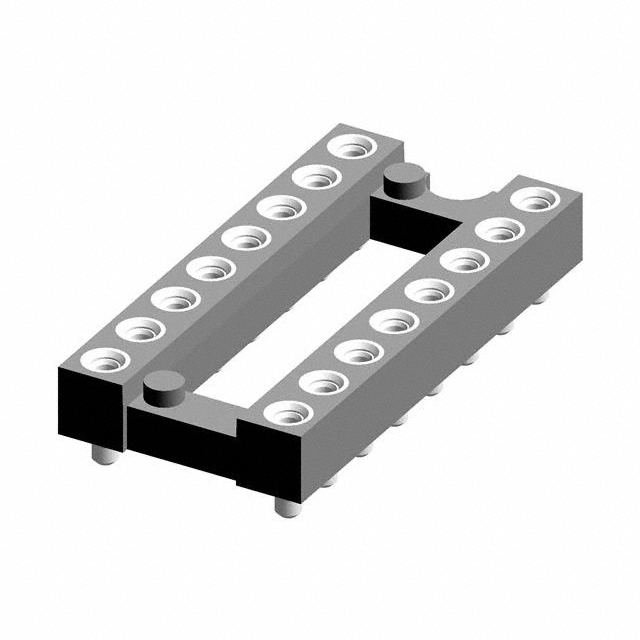

 Preci-Dip | 1 A | 10 mOhm | UL94 V-0 | 0.047 in | 1.2 mm | -55 C | 125 °C | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 16 | Gold | Surface Mount | 0.1 " | 2.54 mm | Solder | Tin | DIP | Open Frame | Flash | Brass | Beryllium Copper | 2 | 8 | 7.62 mm | 0.3 in | ||||

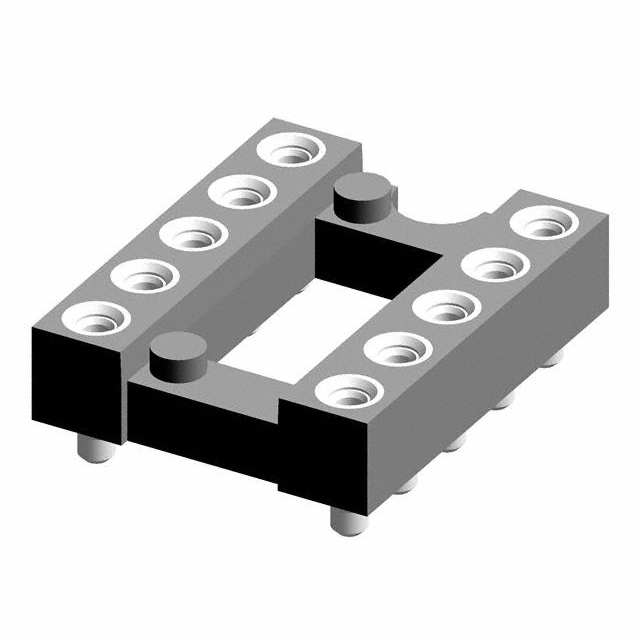

 Preci-Dip | 1 A | 10 mOhm | UL94 V-0 | 0.047 in | 1.2 mm | -55 C | 125 °C | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 10 | Gold | Surface Mount | 0.1 " | 2.54 mm | Solder | Tin | DIP | Open Frame | Flash | Brass | Beryllium Copper | 7.62 mm | 0.3 in | 5 | 2 | ||||
Preci-Dip | 1 A | 10 mOhm | UL94 V-0 | 0.047 in | 1.2 mm | -55 C | 125 °C | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 14 | Gold | Surface Mount | 0.1 " | 2.54 mm | Solder | Tin | DIP | Open Frame | Flash | Brass | Beryllium Copper | 7.62 mm | 0.3 in | ||||||
 Preci-Dip | 1 A | 10 mOhm | UL94 V-0 | 0.047 in | 1.2 mm | -55 C | 125 °C | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 32 | Gold | Surface Mount | 0.1 " | 2.54 mm | Solder | Tin | 15.24 mm | 0.6 in | DIP | Open Frame | Flash | Brass | Beryllium Copper | ||||||
Preci-Dip | 1 A | 10 mOhm | UL94 V-0 | 0.047 in | 1.2 mm | -55 C | 125 °C | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 24 | Gold | Surface Mount | 0.1 " | 2.54 mm | Solder | Tin | DIP | Open Frame | Flash | Brass | Beryllium Copper | 7.62 mm | 0.3 in | 2 | 12 | ||||

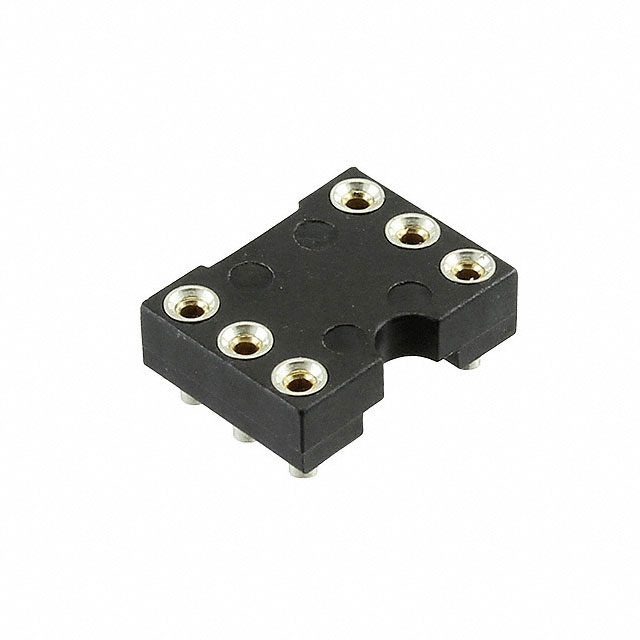

 Preci-Dip | 1 A | 10 mOhm | UL94 V-0 | 0.047 in | 1.2 mm | -55 C | 125 °C | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 6 | Gold | Surface Mount | 0.1 " | 2.54 mm | Solder | Tin | DIP | Open Frame | Flash | Brass | Beryllium Copper | 7.62 mm | 0.3 in | 3 positions or pins | 2 | ||||

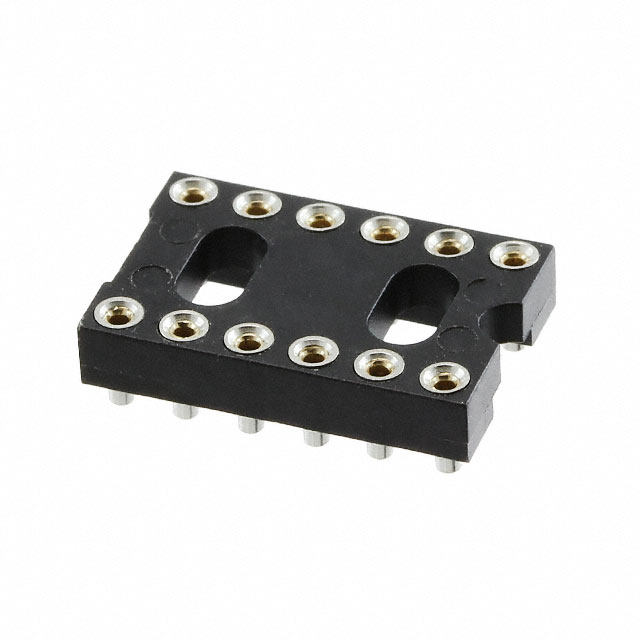

 Preci-Dip | 1 A | 10 mOhm | UL94 V-0 | 0.047 in | 1.2 mm | -55 C | 125 °C | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 12 | Gold | Surface Mount | 0.1 " | 2.54 mm | Solder | Tin | DIP | Open Frame | Flash | Brass | Beryllium Copper | 7.62 mm | 0.3 in | ||||||

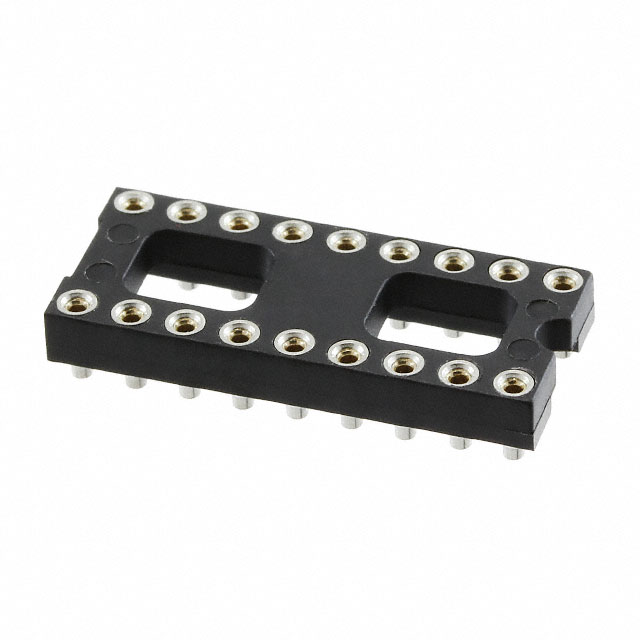

 Preci-Dip | 1 A | 10 mOhm | UL94 V-0 | 0.047 in | 1.2 mm | -55 C | 125 °C | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 18 | Gold | Surface Mount | 0.1 " | 2.54 mm | Solder | Tin | DIP | Open Frame | Flash | Brass | Beryllium Copper | 7.62 mm | 0.3 in |
