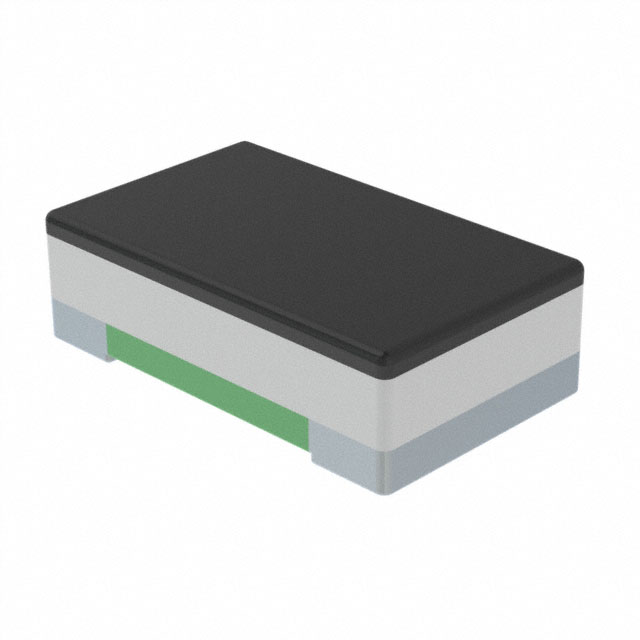

SCSF0805SF Series

Catalog

RES 0.01 OHM 5% 1/3W 0805

Part	Number of Terminations [custom]	Package / Case	Supplier Device Package	Power (Watts)	Power (Watts)	Features	Height - Seated (Max) [Max]	Height - Seated (Max)	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Temperature Coefficient
Delta Electronics/Cyntec SCSF0805SF-R010J	2	0805	0805	0.3333333333333333 W	0.333 W	Current Sense	0.031 in	0.8 mm	10 mOhms	0.079 in	0.047 in	1.2 mm	2 mm	170 °C	-55 C	5 %	100 ppm/°C
Delta Electronics/Cyntec SCSF0805SF-R010F	2	0805	0805	0.3333333333333333 W	0.333 W	Automotive AEC-Q200 Current Sense	0.031 in	0.8 mm	10 mOhms	0.079 in	0.047 in	1.2 mm	2 mm	170 °C	-55 C	1 %	100 ppm/°C
Delta Electronics/Cyntec SCSF0805SF-R005F	2	0805	0805	0.3333333333333333 W	0.333 W	Current Sense	0.031 in	0.8 mm	5 mOhms	0.079 in	0.047 in	1.2 mm	2 mm	170 °C	-55 C	1 %	100 ppm/°C
Delta Electronics/Cyntec SCSF0805SF-R020F	2	0805	0805	0.3333333333333333 W	0.333 W	Current Sense	0.031 in	0.8 mm	0.02 Ohms	0.079 in	0.047 in	1.2 mm	2 mm	170 °C	-55 C	1 %	100 ppm/°C
