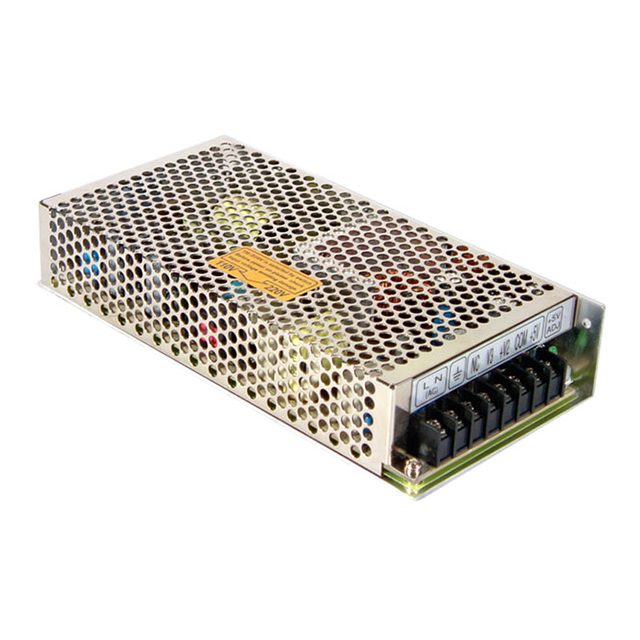

RID-125 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 12V 24V 133W
| Part | Minimum Load Required | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Applications | Approval Agency | Mounting Type | Efficiency | Number of Outputs | Voltage - Output 2 | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Features | Voltage - Output 1 | Type | Current - Output 2 | Voltage - Isolation | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 199 mm | 1.5 in | 98 mm | 7.83 in | 3.86 " | 38 mm | ITE (Commercial) | CB CE cURus TUV | Chassis Mount | 85 % | 2 | 24 V | 133 W | 70 °C | -20 °C | 132 VAC 264 VAC 373 VDC | 88 VAC 176 VAC 248 VDC | Adjustable Output | 12 V | Enclosed | 3.7 A | 3000 V | 3.7 A | |
MEAN WELL USA Inc. | 199 mm | 1.5 in | 98 mm | 7.83 in | 3.86 " | 38 mm | ITE (Commercial) | CB CE cURus TUV | Chassis Mount | 86 % | 2 | 48 V | 144 W | 70 °C | -20 °C | 132 VAC 264 VAC 373 VDC | 88 VAC 176 VAC 248 VDC | Adjustable Output | 24 V | Enclosed | 2 A | 3000 V | 2 A | |
MEAN WELL USA Inc. | 199 mm | 1.5 in | 98 mm | 7.83 in | 3.86 " | 38 mm | ITE (Commercial) | CB CE cURus TUV | Chassis Mount | 83 % | 2 | 5 V | 125 W | 70 °C | -20 °C | 132 VAC 264 VAC 373 VDC | 88 VAC 176 VAC 248 VDC | Adjustable Output | 24 V | Enclosed | 3 A | 3000 V | 4.6 A | |
MEAN WELL USA Inc. | 199 mm | 1.5 in | 98 mm | 7.83 in | 3.86 " | 38 mm | ITE (Commercial) | CB CE cURus TUV | Chassis Mount | 80 % | 2 | 5 V | 125 W | 70 °C | -20 °C | 132 VAC 264 VAC 373 VDC | 88 VAC 176 VAC 248 VDC | Adjustable Output | 12 V | Enclosed | 3 A | 3000 V | 9.2 A |
