OSTTC10 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 10P SIDE ENT 5.08MM PCB
| Part | Torque - Screw | Torque - Screw | Screw Thread | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating [custom] | Contact Material - Plating | Screw Material - Plating | Number of Levels | Mating Orientation | Voltage | Color | Positions Per Level | Features | Wire Termination | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Current | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

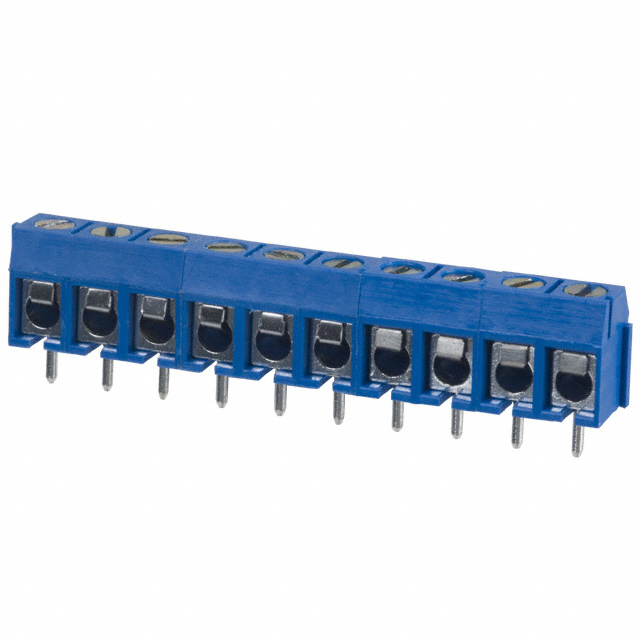

 On Shore Technology Inc. | 2.6 Lb-In | 0.3 Nm | M2.6 | Thermoplastic | -30 ░C | 105 ░C | Stainless Steel | Tin Plated | Steel - Zinc Plated | 1 | Horizontal with Board | 300 VDC | Blue | 10 | Interlocking (Side) | Screw - Leaf Spring Wire Guard | 14 AWG | 22 AWG | Through Hole | 15 A | 5.08 mm | 0.2 in |

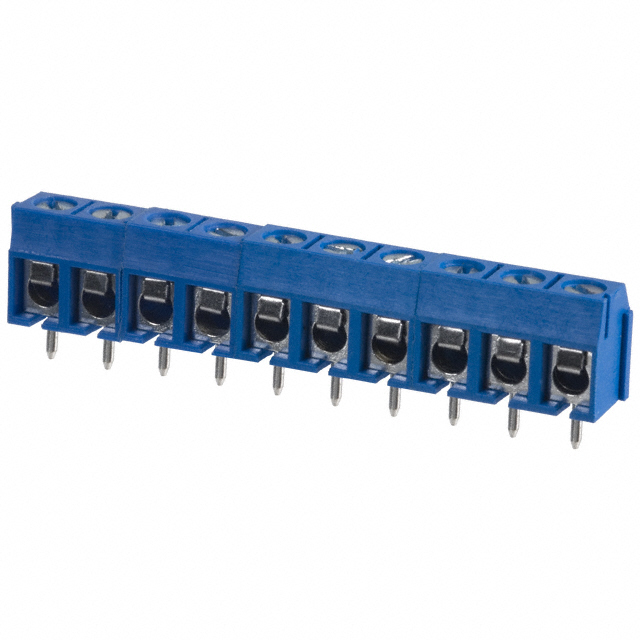

 On Shore Technology Inc. | 2.6 Lb-In | 0.3 Nm | M2.6 | Thermoplastic | -30 ░C | 105 ░C | Stainless Steel | Tin Plated | Steel - Zinc Plated | 1 | Horizontal with Board | 300 VDC | Blue | 10 | Interlocking (Side) | Screw - Leaf Spring Wire Guard | 14 AWG | 22 AWG | Through Hole | 15 A | 5 mm | 0.197 in |
