PH05 Series

Catalog

PCB HDR HORIZ 10MMPS 5P OPEN END

Part	Current - UL	Operating Temperature	Termination Style	Voltage - IEC	Voltage - UL	Mounting Type	Positions Per Level	Current - IEC	Type	Number of Levels	Contact Mating Finish	Number of Positions	Pitch	Header Orientation Angle	Header Orientation	Color	Features	Operating Temperature (Min)	Operating Temperature (Max)
Altech Corporation PH05-10,00	12 A	105 °C	Solder	750 V	300 V	Through Hole	5	16 A	Header Male Pins Shrouded (2 Side)	1	Tin	5	0.394 in	90 °	Right Angle	Green
Altech Corporation PH05-10,16	12 A	105 °C	Solder	750 V	600 V	Through Hole	5	16 A	Header Male Pins Shrouded (2 Side)	1	Tin	5	0.4 in	90 °	Right Angle	Green
Altech Corporation PH05-5,08-K	12 A	105 °C	Solder	450 V	300 V	Through Hole	5	16 A	Header Male Pins Shrouded (2 Side)	1	Tin	5	5.08 mm	90 °	Right Angle	Green
Altech Corporation PH05-3,81-K	8 A	105 °C	Solder	130 V	300 V	Through Hole	5	8 A	Header Male Pins Shrouded (4 Side)	1	Tin	5	0.15 in	90 °	Right Angle	Green	Flange
Altech Corporation PH05-3,50	11 A		Solder	160 V	300 V	Through Hole	5	8 A	Header Male Pins Shrouded (4 Side)	1	Tin	5	0.138 in	90 °	Right Angle	Green		-30 °C	105 °C
Altech Corporation PH05-7,50	12 A	105 °C	Solder	750 V	300 V	Through Hole	5	16 A	Header Male Pins Shrouded (2 Side)	1	Tin	5	0.295 in	90 °	Right Angle	Green
Altech Corporation PH05-10,16-K	12 A	105 °C	Solder	750 V	600 V	Through Hole	5	16 A	Header Male Pins Shrouded (4 Side)	1	Tin	5	0.4 in	90 °	Right Angle	Green	Flange

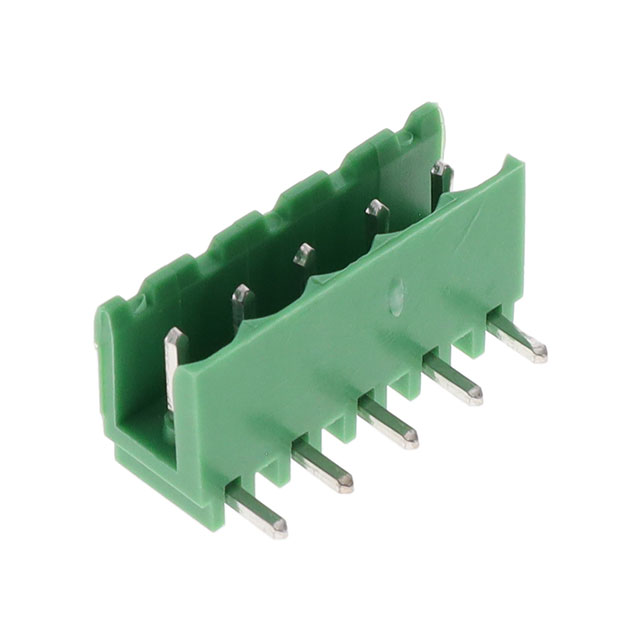

Altech Corporation PH05-5,08	12 A	105 °C	Solder	450 V	300 V	Through Hole	5	16 A	Header Male Pins Shrouded (2 Side)	1	Tin	5	5.08 mm	90 °	Right Angle	Green
Altech Corporation PH05-3,81	11 A		Solder	160 V	300 V	Through Hole	5	8 A	Header Male Pins Shrouded (4 Side)	1	Tin	5	0.15 in	90 °	Right Angle	Green		-30 °C	105 °C
