ERD-S1 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

RES 51 OHM 5% 1/2W AXIAL

Part	Composition	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Power (Watts)	Power (Watts)	Supplier Device Package	Number of Terminations	Resistance	Package / Case

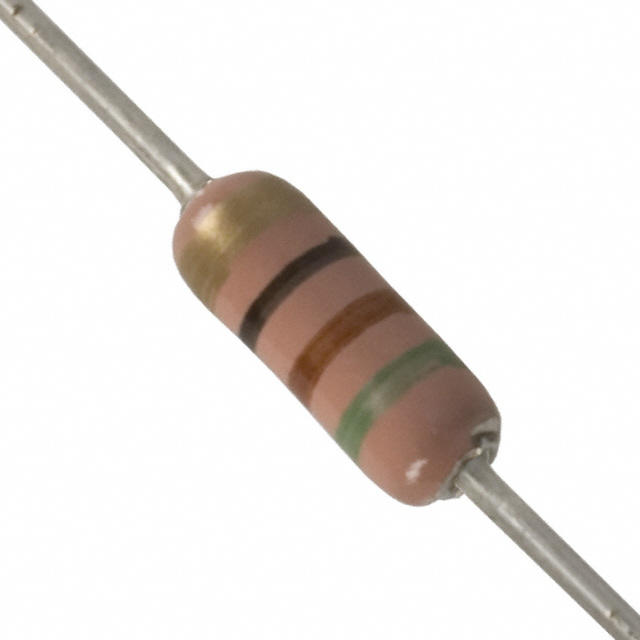

Panasonic Industrial Automation Sales ERD-S1TJ510V	Carbon Film	0.091 "	6.35 mm	2.3 mm	0.25 "	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	0.5 W	0.5 W	Axial	2	51 Ohms	Axial

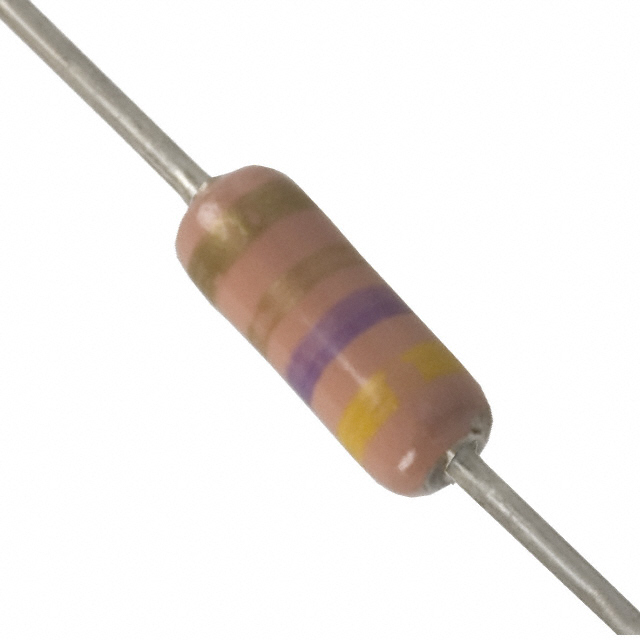

Panasonic Industrial Automation Sales ERD-S1TJ4R7V	Carbon Film	0.091 "	6.35 mm	2.3 mm	0.25 "	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	0.5 W	0.5 W	Axial	2	4.7 Ohms	Axial
Panasonic Industrial Automation Sales ERD-S1TJ824V	Carbon Film	0.091 "	6.35 mm	2.3 mm	0.25 "	5 %	155 °C	-55 °C	-700 ppm/°C	-150	0.5 W	0.5 W	Axial	2	820 kOhms	Axial

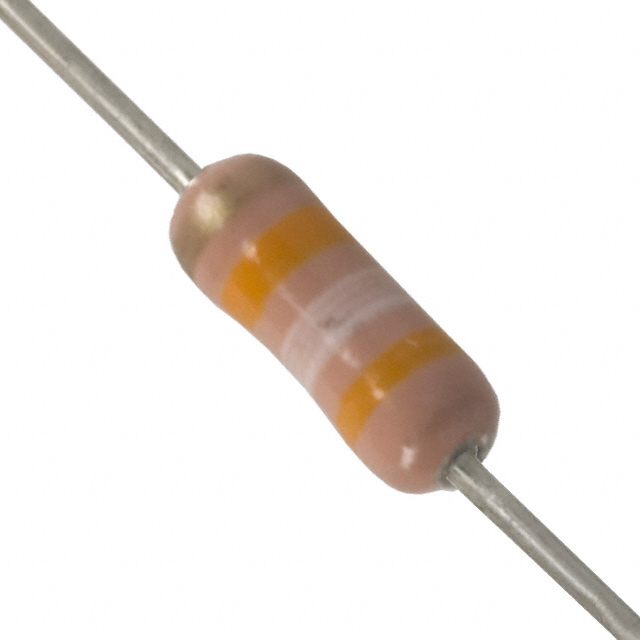

Panasonic Industrial Automation Sales ERD-S1TJ393V	Carbon Film	0.091 "	6.35 mm	2.3 mm	0.25 "	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	0.5 W	0.5 W	Axial	2	39 kOhms	Axial

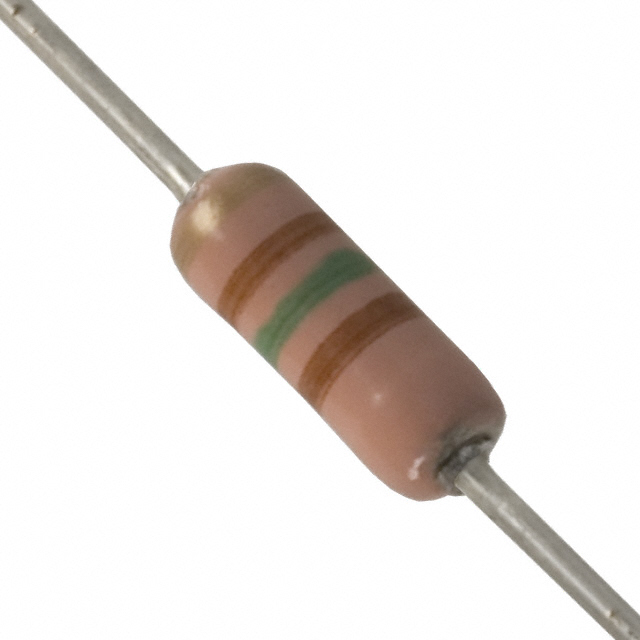

Panasonic Industrial Automation Sales ERD-S1TJ151V	Carbon Film	0.091 "	6.35 mm	2.3 mm	0.25 "	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	0.5 W	0.5 W	Axial	2	150 Ohms	Axial

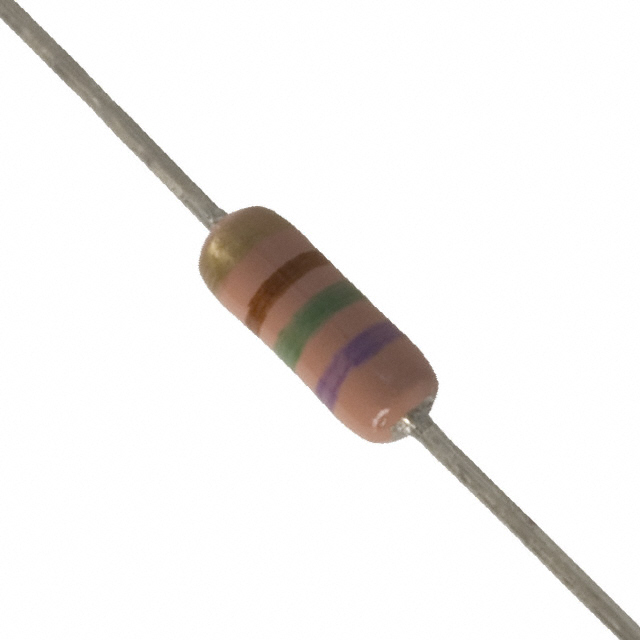

Panasonic Industrial Automation Sales ERD-S1TJ751V	Carbon Film	0.091 "	6.35 mm	2.3 mm	0.25 "	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	0.5 W	0.5 W	Axial	2	750 Ohms	Axial

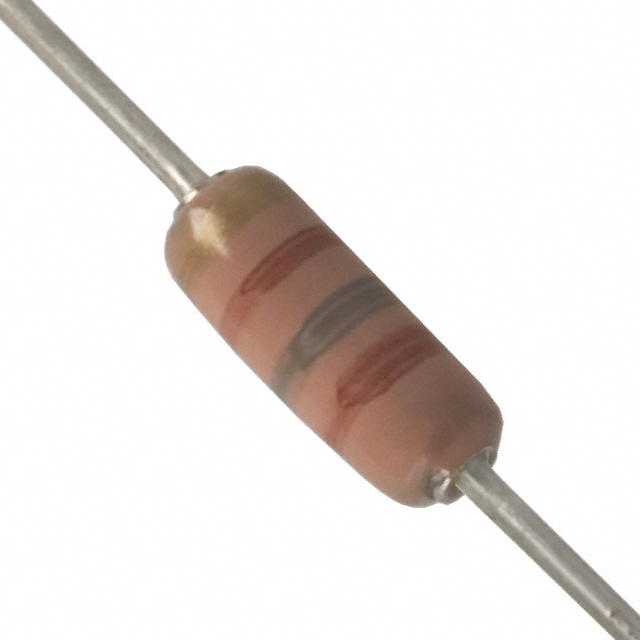

Panasonic Industrial Automation Sales ERD-S1TJ181V	Carbon Film	0.091 "	6.35 mm	2.3 mm	0.25 "	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	0.5 W	0.5 W	Axial	2	180 Ohms	Axial

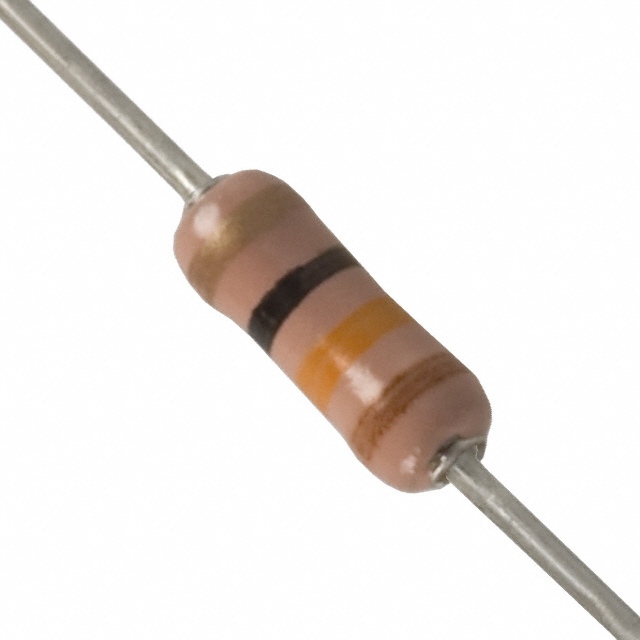

Panasonic Industrial Automation Sales ERD-S1TJ130V	Carbon Film	0.091 "	6.35 mm	2.3 mm	0.25 "	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	0.5 W	0.5 W	Axial	2	13 Ohms	Axial

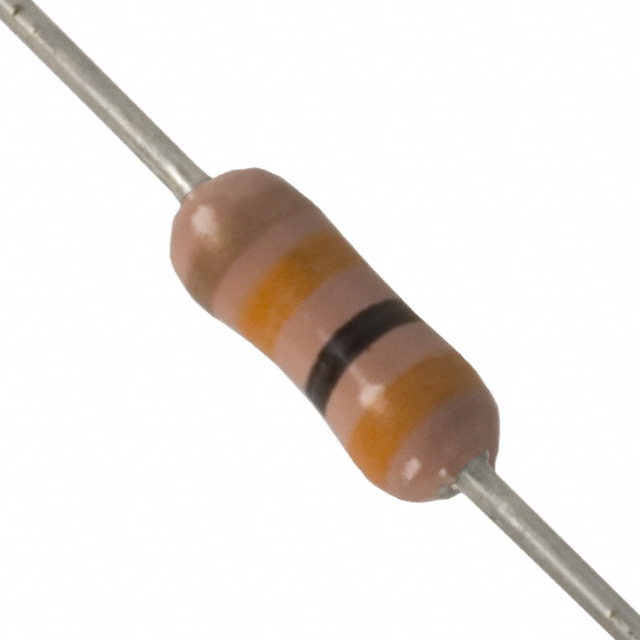

Panasonic Industrial Automation Sales ERD-S1TJ303V	Carbon Film	0.091 "	6.35 mm	2.3 mm	0.25 "	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	0.5 W	0.5 W	Axial	2		Axial

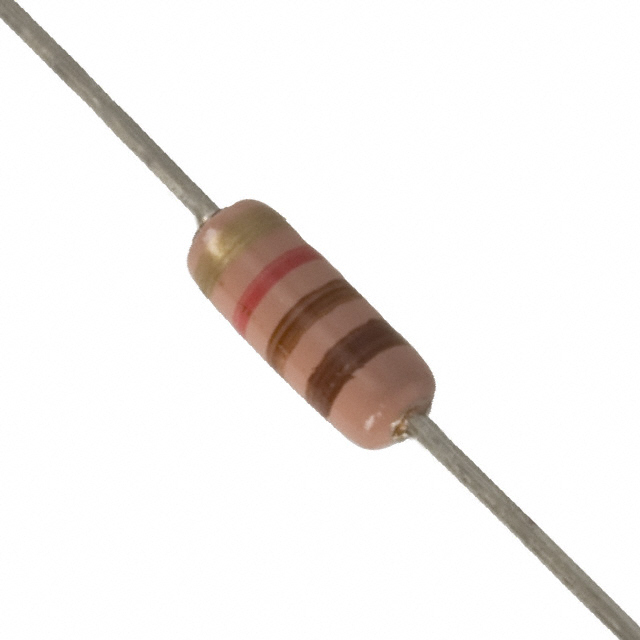

Panasonic Industrial Automation Sales ERD-S1TJ112V	Carbon Film	0.091 "	6.35 mm	2.3 mm	0.25 "	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	0.5 W	0.5 W	Axial	2	1100 Ohms	Axial
