1544133 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

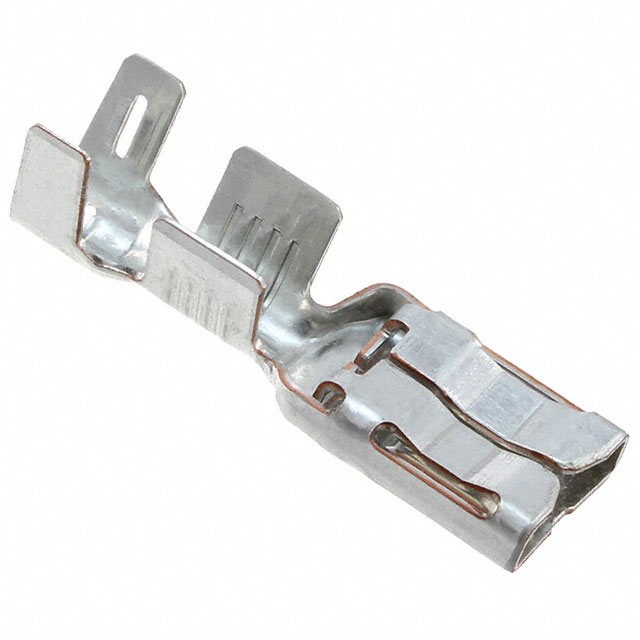

CONN QC RCPT 10-13AWG 0.250
| Part | Contact Material | Gender | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Terminal Type | Contact Finish | Tab Width | Tab Width | Termination | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation | Tab Thickness | Tab Thickness | Tab Length | Tab Length | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Copper Alloy | Female | 10 AWG | 13 AWG | Free Hanging (In-Line) | Standard | Tin | 6.35 mm | 0.25 in | Crimp | 0.161 in | 2.79 mm | 4.09 mm | 0.11 in | Non-Insulated | 0.031 " | 0.79 mm | 0.327 in | 8.31 mm | 28.4 mm | 1.118 in |
