HM2P65 Series

Catalog

CONN HEADER 169POS 2MM PRESS-FIT

Part	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Rows	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Connector Style	Number of Positions Loaded	Contact Finish Thickness	Termination	Connector Type	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Number of Positions [custom]

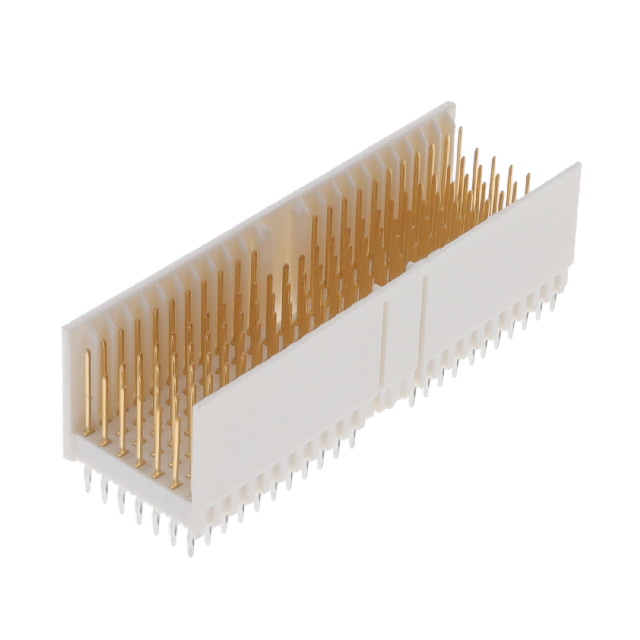

Amphenol ICC (FCI) HM2P65PDE121N9LF	750 Vrms	-55 C	125 °C	1.5 A	5 + 2	Gold	0.079 in	2 mm	Through Hole	AB 25	All	Flash	Press-Fit	Header Male Pins
Amphenol ICC (FCI) HM2P65PDE121N9	750 Vrms	-55 C	125 °C	1.5 A	5 + 2	Gold	0.079 in	2 mm	Through Hole	AB 25	All	Flash	Press-Fit	Header Male Pins
Amphenol ICC (FCI) HM2P65PK5110GFLF	750 Vrms	-55 C	125 °C	1.5 A		Gold	0.079 in	2 mm	Through Hole	AB 25	All	Flash	Press-Fit	Header Male Pins	5	125
Amphenol ICC (FCI) HM2P65PDA3M1N9	750 Vrms	-55 C	125 °C	1.5 A	5 + 2	Gold	0.079 in	2 mm	Through Hole	AB 25	All	Flash	Press-Fit	Header Male Pins
Amphenol ICC (FCI) HM2P65PDP2Y0N9LF	750 Vrms	-55 C	125 °C	1.5 A		Gold	0.079 in	2 mm	Through Hole	AB 25	All		Press-Fit	Header Male Pins	5	125
Amphenol ICC (FCI) HM2P65PDS220N9LF	750 Vrms	-55 C	125 °C	1.5 A		Gold	0.079 in	2 mm	Through Hole	AB 25	All		Press-Fit	Header Male Pins	5	125	30 Áin	0.76 Ám
Amphenol ICC (FCI) HM2P65PDH2L5N9LF	750 Vrms	-55 C	125 °C	1.5 A		Gold	0.079 in	2 mm	Through Hole	AB 25	All	Flash	Press-Fit	Header Male Pins	1 5				22	125
Amphenol ICC (FCI) HM2P65PDM3H1N9LF	750 Vrms	-55 C	125 °C	1.5 A	5 + 2	Gold	0.079 in	2 mm	Through Hole	AB 25	All		Press-Fit	Header Male Pins			30 Áin	0.76 Ám
Amphenol ICC (FCI) HM2P65PDT2A1N9	750 Vrms	-55 C	125 °C	1.5 A	5 + 2	Gold	0.079 in	2 mm	Through Hole	AB 25	All		Press-Fit	Header Male Pins			30 Áin	0.76 Ám
Amphenol ICC (FCI) HM2P65PDA3M1N9LF	750 Vrms	-55 C	125 °C	1.5 A	5 + 2	Gold	0.079 in	2 mm	Through Hole	AB 25	All	Flash	Press-Fit	Header Male Pins
