MBRL30 Series

Catalog

DIODE ARR SCHOTT 100V ITO220AB

Part	Diode Configuration	Current - Reverse Leakage @ Vr	Package / Case	Speed	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Average Rectified (Io) (per Diode)	Mounting Type	Current - Average Rectified (Io)	Capacitance @ Vr, F
Micro Commercial Components MBRL30U100FCT-BP	1 Pair Common Cathode	100 µA	TO-220-3 Isolated Tab	200 mA 500 ns	640 mV	150 °C	-55 °C	ITO-220AB	100 V	Schottky	30 A	Through Hole
Micro Commercial Components MBRL30U100CT-BP	1 Pair Common Cathode	100 µA	TO-220-3	200 mA 500 ns	640 mV	150 °C	-55 °C	TO-220AB	100 V	Schottky	30 A	Through Hole

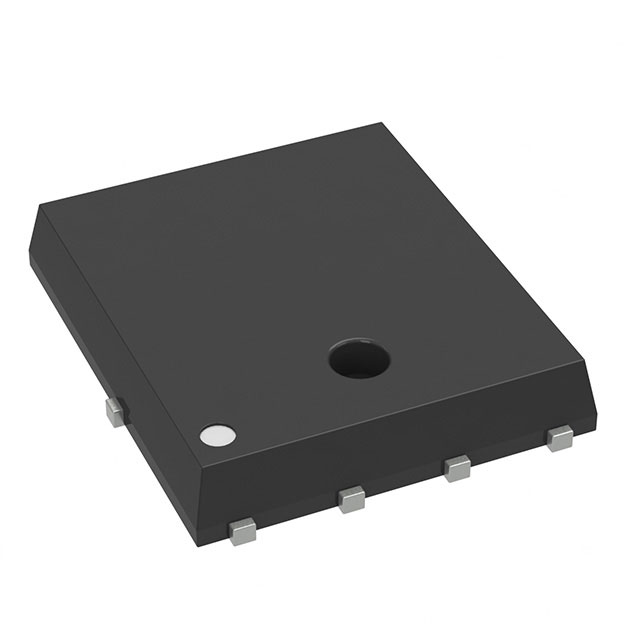

Micro Commercial Components MBRL30P100-TP		100 µA	8-PowerTDFN	200 mA 500 ns	850 mV	150 °C	-55 °C	DFN5060	100 V	Schottky		Surface Mount	30 A	1350 pF
