846-046 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 46POS 0.125

...

Part	Material - Insulation	Termination Rows [custom]	Gender	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Contact Finish	Number of Positions	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Read Out	Color	Card Type	Contact Type	Mounting Type	Number of Positions/Bay/Row	Number of Rows [custom]	Features	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 846-046-560-808	Diallyl Phthalate (DAP)	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Threaded Insert Top Mount Opening	Gold	46	3.18 mm	0.125 in	125 °C	-40 C	Copper Alloy	Solder	0.25 Ám	10 Áin	Dual	Green	Non Specified - Dual Edge	Cantilever	Board Edge Straddle Mount	23	2	Card Extender

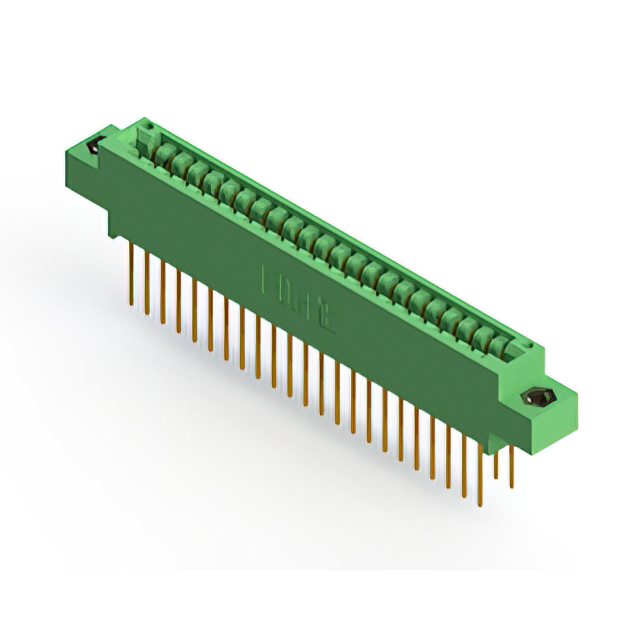

EDAC Inc. 846-046-522-808	Diallyl Phthalate (DAP)	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Threaded Insert Top Mount Opening	Gold	46	3.18 mm	0.125 in	125 °C	-40 C	Copper Alloy	Solder	0.25 Ám	10 Áin	Dual	Green	Non Specified - Dual Edge	Cantilever	Through Hole	23	2
EDAC Inc. 846-046-520-103	Diallyl Phthalate (DAP)		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	Gold	46	3.18 mm	0.125 in	125 °C	-40 C	Copper Alloy	Solder	0.25 Ám	10 Áin	Single	Green	Non Specified - Single Edge	Cantilever	Through Hole	46			1	1	0.116 "	2.95 mm
EDAC Inc. 846-046-540-607	Diallyl Phthalate (DAP)		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	M3 Threaded Insert Top Mount Opening	Gold	46	3.18 mm	0.125 in	125 °C	-40 C	Copper Alloy	Wire Wrap	0.25 Ám	10 Áin	Single	Green	Non Specified - Single Edge	Cantilever	Through Hole	46			1	1
EDAC Inc. 846-046-541-103	Diallyl Phthalate (DAP)		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	Gold	46	3.18 mm	0.125 in	125 °C	-40 C	Copper Alloy	Wire Wrap	0.25 Ám	10 Áin	Single	Green	Non Specified - Single Edge	Cantilever	Through Hole	46			1	1	0.116 "	2.95 mm
EDAC Inc. 846-046-555-203	Diallyl Phthalate (DAP)	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	Gold	46	3.18 mm	0.125 in	125 °C	-40 C	Copper Alloy	Solder Eyelet(s)	0.25 Ám	10 Áin	Dual	Green	Non Specified - Dual Edge	Cantilever	Board Edge Straddle Mount	23	2	Card Extender			0.116 "	2.95 mm

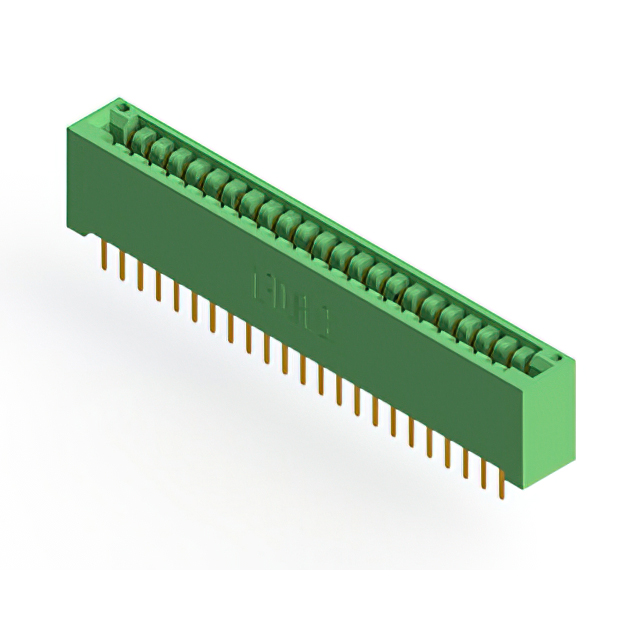

EDAC Inc. 846-046-520-201	Diallyl Phthalate (DAP)	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm		Gold	46	3.18 mm	0.125 in	125 °C	-40 C	Copper Alloy	Solder	0.25 Ám	10 Áin	Dual	Green	Non Specified - Dual Edge	Cantilever	Through Hole	23	2
EDAC Inc. 846-046-541-607	Diallyl Phthalate (DAP)		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	M3 Threaded Insert Top Mount Opening	Gold	46	3.18 mm	0.125 in	125 °C	-40 C	Copper Alloy	Wire Wrap	0.25 Ám	10 Áin	Single	Green	Non Specified - Single Edge	Cantilever	Through Hole	46			1	1
EDAC Inc. 846-046-559-608	Diallyl Phthalate (DAP)		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Threaded Insert Top Mount Opening	Gold	46	3.18 mm	0.125 in	125 °C	-40 C	Copper Alloy	Solder	0.25 Ám	10 Áin	Single	Green	Non Specified - Single Edge	Cantilever	Right Angle Through Hole	46			1	1
EDAC Inc. 846-046-558-808	Diallyl Phthalate (DAP)	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Threaded Insert Top Mount Opening	Gold	46	3.18 mm	0.125 in	125 °C	-40 C	Copper Alloy	Solder	0.25 Ám	10 Áin	Dual	Green	Non Specified - Dual Edge	Cantilever	Right Angle Through Hole	23	2
