9918 Series

Catalog

HOOK-UP STRND 18AWG BLU

Part	Length [x]	Length [x]	Cable Type	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Material	Ratings	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length	Length

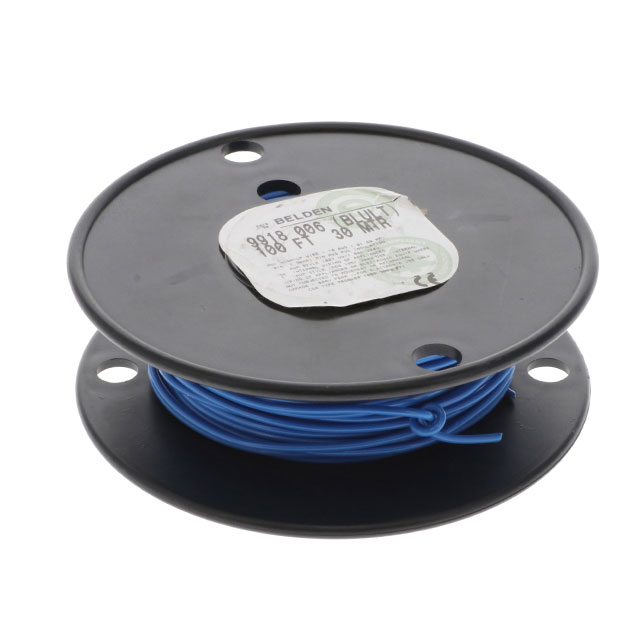

Belden Inc. 9918 006100	100 ft	30.5 m	Hook-Up	Poly-Vinyl Chloride (PVC)	16	30 AWG	300 VDC	Copper Tinned	UL Style 1007/1569	18 AWG	0.43 mm	0.017 "	2.01 mm	0.079 in	Blue
Belden Inc. 9918 009100	100 ft	30.5 m	Hook-Up	Poly-Vinyl Chloride (PVC)	16	30 AWG	300 VDC	Copper Tinned	UL Style 1007/1569	18 AWG	0.43 mm	0.017 "	2.01 mm	0.079 in	White

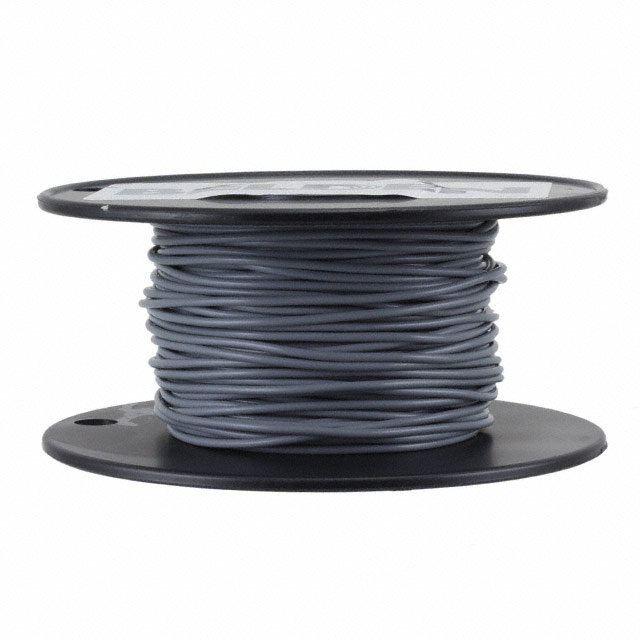

Belden Inc. 9918 008100	100 ft	30.5 m	Hook-Up	Poly-Vinyl Chloride (PVC)	16	30 AWG	300 VDC	Copper Tinned	UL Style 1007/1569	18 AWG	0.43 mm	0.017 "	2.01 mm	0.079 in	Gray
Belden Inc. 9918 0041000			Hook-Up	Poly-Vinyl Chloride (PVC)	16	30 AWG	300 VDC	Copper Tinned	UL Style 1007/1569	18 AWG	0.43 mm	0.017 "	2.01 mm	0.079 in	Yellow	304.8 m	1000 ft
Belden Inc. 9918 0135000			Hook-Up	Poly-Vinyl Chloride (PVC)	16	30 AWG	300 VDC	Copper Tinned	UL Style 1007/1569	18 AWG	0.43 mm	0.017 "	2.01 mm	0.079 in	Blue
Belden Inc. 9918 0101000			Hook-Up	Poly-Vinyl Chloride (PVC)	16	30 AWG	300 VDC	Copper Tinned	UL Style 1007/1569	18 AWG	0.43 mm	0.017 "	2.01 mm	0.079 in	Black	304.8 m	1000 ft
Belden Inc. 9918 002100	100 ft	30.5 m	Hook-Up	Poly-Vinyl Chloride (PVC)	16	30 AWG	300 VDC	Copper Tinned	UL Style 1007/1569	18 AWG	0.43 mm	0.017 "	2.01 mm	0.079 in	Red
Belden Inc. 9918 0031000			Hook-Up	Poly-Vinyl Chloride (PVC)	16	30 AWG	300 VDC	Copper Tinned	UL Style 1007/1569	18 AWG	0.43 mm	0.017 "	2.01 mm	0.079 in	Orange	304.8 m	1000 ft
Belden Inc. 9918 007100	100 ft	30.5 m	Hook-Up	Poly-Vinyl Chloride (PVC)	16	30 AWG	300 VDC	Copper Tinned	UL Style 1007/1569	18 AWG	0.43 mm	0.017 "	2.01 mm	0.079 in	Violet
Belden Inc. 9918 001100	100 ft	30.5 m	Hook-Up	Poly-Vinyl Chloride (PVC)	16	30 AWG	300 VDC	Copper Tinned	UL Style 1007/1569	18 AWG	0.43 mm	0.017 "	2.01 mm	0.079 in	Brown
