2314930 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

4P,2MM,B-B,REC,SRHZ,2.1,0.76AU,T

Part	Insulation Material	Contact Material	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Type	Material Flammability Rating	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Insulation Height	Insulation Height	Mounting Type	Number of Positions Loaded	Voltage Rating	Contact Finish - Post	Fastening Type	Insulation Height [z]	Insulation Height [z]

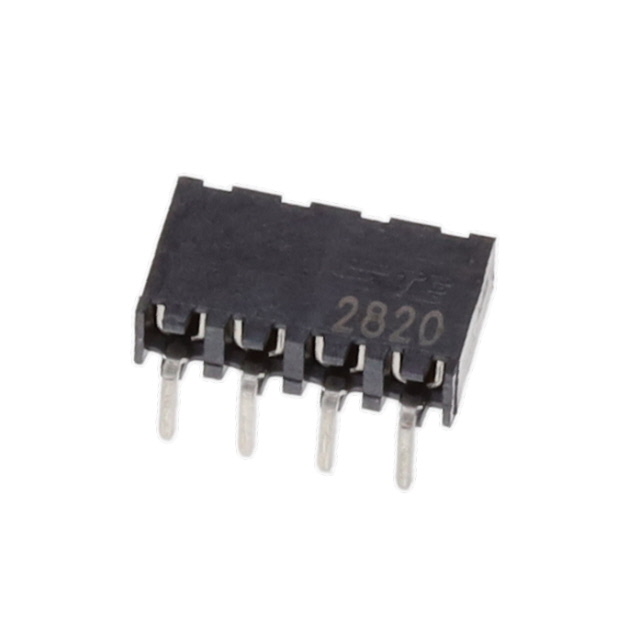

TE Connectivity Raychem Cable Protection 2314930-4	Liquid Crystal Polymer (LCP)	Phosphor Bronze	1	30 Áin	0.76 Ám	Gold	Female Socket	UL94 V-0	Solder	0.079 in	2 mm	Square	Receptacle	125 °C	-40 °C	0.083 in	2.11 mm	4	Black	0.3 µm	12 µin	2 A	2.1 mm	0.083 "	Through Hole Right Angle	All	125 VDC	Tin	Push-Pull

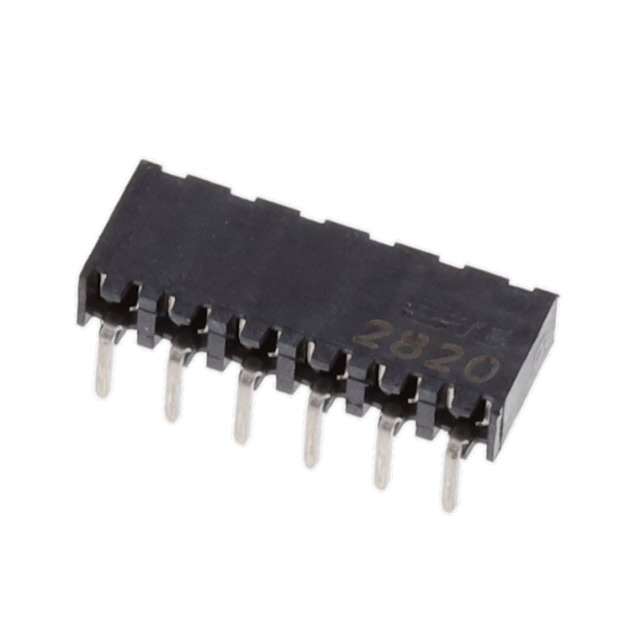

TE Connectivity Raychem Cable Protection 2314930-6	Liquid Crystal Polymer (LCP)	Phosphor Bronze	1	30 Áin	0.76 Ám	Gold	Female Socket	UL94 V-0	Solder	0.079 in	2 mm	Square	Receptacle	125 °C	-40 °C	0.083 in	2.11 mm	6	Black	3 µm	118.1 µin	2 A			Through Hole Right Angle	All	125 VDC	Tin	Push-Pull	0.08 in	2.03 mm
TE Connectivity Raychem Cable Protection 2314930-5	Liquid Crystal Polymer (LCP)	Phosphor Bronze	1	30 Áin	0.76 Ám	Gold	Female Socket	UL94 V-0	Solder	0.079 in	2 mm	Square	Receptacle	125 °C	-40 °C	0.083 in	2.11 mm		Black	3 µm	118.1 µin	2 A			Through Hole Right Angle	All	125 VDC	Tin	Push-Pull	0.08 in	2.03 mm

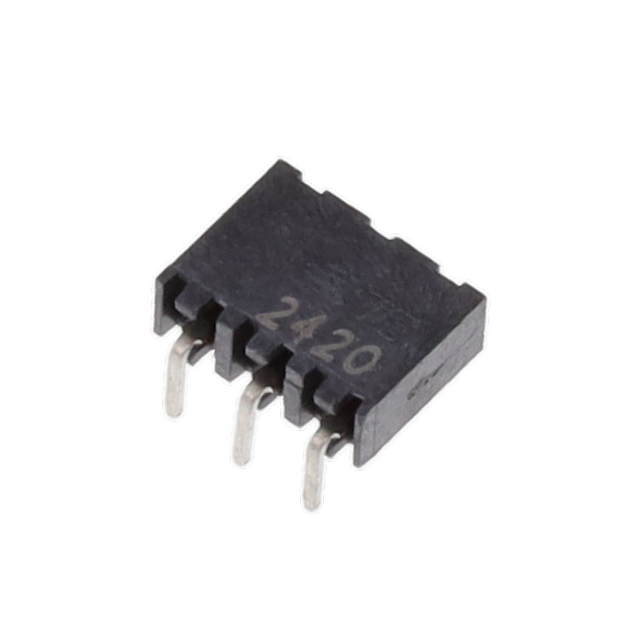

TE Connectivity Raychem Cable Protection 2314930-3	Liquid Crystal Polymer (LCP)	Phosphor Bronze	1	30 Áin	0.76 Ám	Gold	Female Socket	UL94 V-0	Solder	0.079 in	2 mm	Square	Receptacle	125 °C	-40 °C	0.083 in	2.11 mm		Black	0.3 µm	12 µin	2 A	2.1 mm	0.083 "	Through Hole Right Angle	All	125 VDC	Tin	Push-Pull

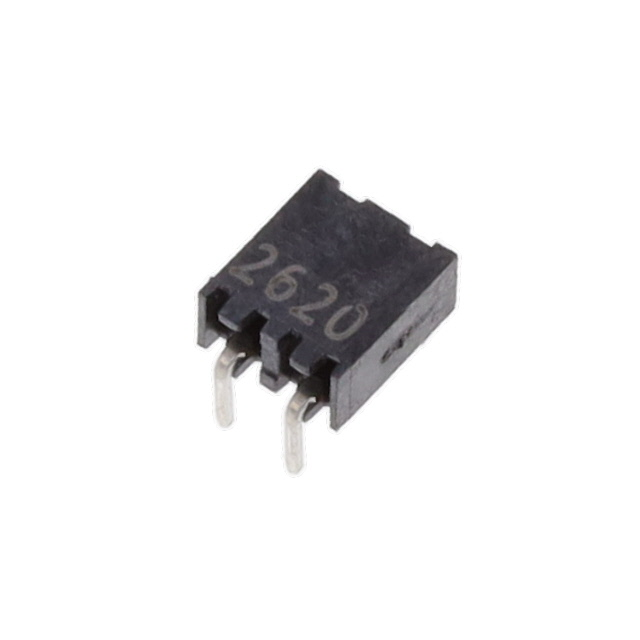

TE Connectivity Raychem Cable Protection 2314930-2	Liquid Crystal Polymer (LCP)	Phosphor Bronze	1	30 Áin	0.76 Ám	Gold	Female Socket	UL94 V-0	Solder	0.079 in	2 mm	Square	Receptacle	125 °C	-40 °C	0.083 in	2.11 mm	2	Black	0.3 µm	12 µin	2 A	2.1 mm	0.083 "	Through Hole Right Angle	All	125 VDC	Tin	Push-Pull
