76155 Series

Manufacturer: Molex

Catalog

IMPACT 100 OHM 4 PAIR VERTICAL BACKPLANE HEADER, UNGUIDED, LEFT ENDWALL, 10 COLUMNS, 120 CIRCUITS, PIN LENGTH 4.90MM, PLATED THROUGH HOLE DIMENSION 0.46MM, LEAD-FREE

Part	Material Flammability Rating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions Loaded	Number of Rows	Number of Positions	Pitch	Pitch	Connector Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Columns	Connector Style	Mounting Type	Contact Layout, Typical	Contact Layout, Typical
Molex 761551114	UL94 V-0	30 VDC	-55 C	85 °C	Black	All	12	120	1.35 mm	0.053 in	Header Male Pins	Press-Fit	30 Áin	0.76 Ám	Gold	10	Impact	Through Hole	40
Molex 1712941627					Black	All	12	192	1.9 mm	0.075 in	Header Male Pins	Press-Fit	30 Áin	0.76 Ám	Gold	16	Impact	Through Hole		64 Differential Pairs
Molex 761553807					Black	All	12	96	1.35 mm	0.053 in	Header Male Pins	Press-Fit	30 Áin	0.76 Ám	Gold	8	Impact Guide Left	Through Hole	32
Molex 761551104	UL94 V-0	30 VDC	-55 C	85 °C	Black	All	12	120	1.35 mm	0.053 in	Header Male Pins	Press-Fit	30 Áin	0.76 Ám	Gold	10	Impact	Through Hole	40
Molex 761551127	UL94 V-0	30 VDC	-55 C	85 °C	Black	All	12	120	1.35 mm	0.053 in	Header Male Pins	Press-Fit	30 Áin	0.76 Ám	Gold	10	Impact	Through Hole	40
Molex 761559803	UL94 V-0	30 VDC	-55 C	85 °C	Black	All	12	96	1.35 mm	0.053 in	Header Male Pins	Press-Fit	30 Áin	0.76 Ám	Gold	8		Through Hole	32
Molex 761551103	UL94 V-0	30 VDC	-55 C	85 °C	Black	All	12	120	1.35 mm	0.053 in	Header Male Pins	Press-Fit	30 Áin	0.76 Ám	Gold	10	Impact	Through Hole	40

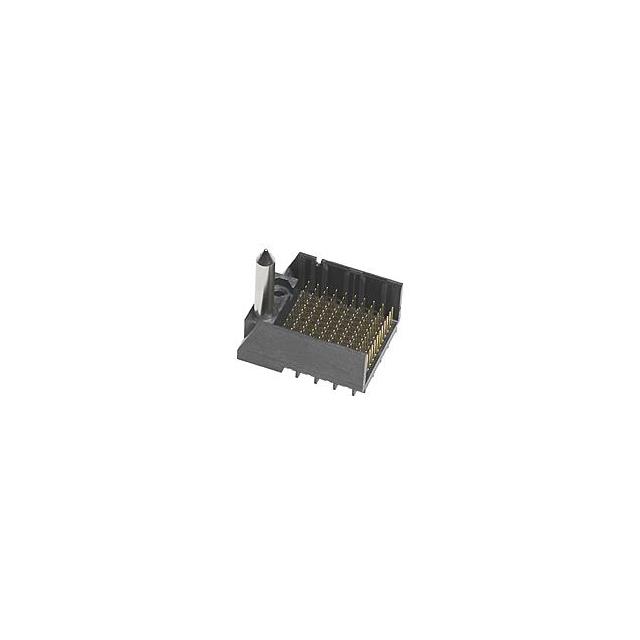

Molex 761553108	UL94 V-0	30 VDC	-55 C	85 °C	Black	All	12	120	1.35 mm	0.053 in	Header Male Pins	Press-Fit	30 Áin	0.76 Ám	Gold	10	Impact Guide Left	Through Hole	10
Molex 761551117	UL94 V-0	30 VDC	-55 C	85 °C	Black	All	12	120	1.35 mm	0.053 in	Header Male Pins	Press-Fit	30 Áin	0.76 Ám	Gold	10	Impact	Through Hole	40
Molex 761557108					Black	All	12	120	1.35 mm	0.053 in	Header Male Pins	Press-Fit	30 Áin	0.76 Ám	Gold	10	Impact Guide Left	Through Hole	40
