SFW8R Series

Catalog

CONN FPC BOTTOM 8POS 1MM R/A

Part	Mating Cycles	Actuator Color	Housing Color	Mounting Type	Pitch	Pitch	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Voltage Rating	Connector/Contact Type	Housing Material	Locking Feature	Contact Finish	Termination	Height Above Board [z]	Height Above Board [z]	Material Flammability Rating	Cable End Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Flat Flex Type	Actuator Material	Features	FFC, FCB Thickness

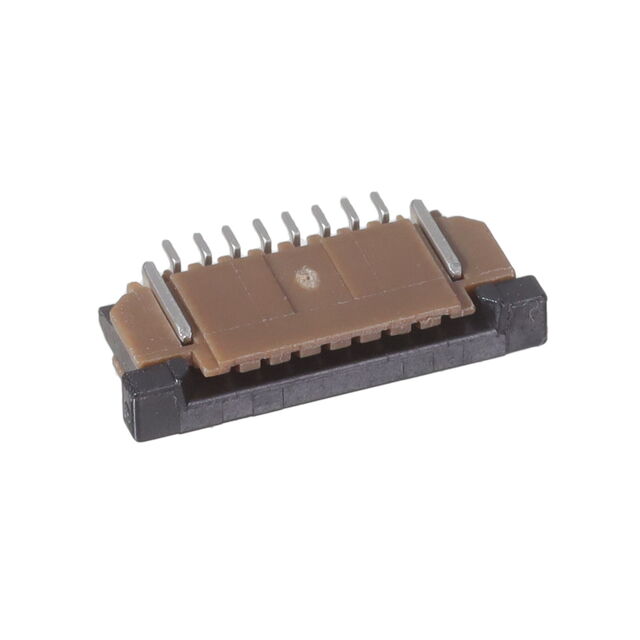

Amphenol ICC (FCI) SFW8R-1STAE1LF	20	Black	Brown	Right Angle Surface Mount	1 mm	0.039 in	0.3 mm	0.33 mm	100 V	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Gold	Kinked Pin	0.106 in	2.7 mm	UL94 V-0	Straight Tapered	Phosphor Bronze	-55 C	105 ░C	8	FPC	Polyphenylene Sulfide (PPS) Glass Filled
Amphenol ICC (FCI) SFW8R-1STGE1LF	20	Black	Brown	Right Angle Surface Mount	1 mm	0.039 in			100 V	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Gold	Solder	0.106 in	2.7 mm	UL94 V-0	Tapered	Phosphor Bronze	-55 C	105 ░C	8	FPC	Polyphenylene Sulfide (PPS) Glass Filled	Solder Retention Zero Insertion Force (ZIF)	0.3 mm
Amphenol ICC (FCI) SFW8R-1STE9LF	20	Black	Brown	Right Angle Surface Mount	1 mm	0.039 in	0.3 mm	0.33 mm	100 V	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Tin	Solder	0.106 in	2.7 mm	UL94 V-0	Straight Tapered	Phosphor Bronze	-55 C	105 ░C	8	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled
Amphenol ICC (FCI) SFW8R-1STE1HLF	20	Black	Black	Right Angle Surface Mount	1 mm	0.039 in	0.3 mm	0.33 mm	100 V	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Tin	Solder	0.106 in	2.7 mm	UL94 V-0	Straight Tapered	Phosphor Bronze	-55 C	105 ░C	8	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled
Amphenol ICC (FCI) SFW8R-3STE1LF	20	Black	Black	Right Angle Surface Mount	1 mm	0.039 in	0.3 mm	0.33 mm	100 V	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Tin	Solder	0.106 in	2.7 mm	UL94 V-0	Straight Tapered	Phosphor Bronze	-55 C	105 ░C	8	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled
Amphenol ICC (FCI) SFW8R-4STE1LF	20	Brown	Black	Right Angle Surface Mount	1 mm	0.039 in	0.3 mm	0.33 mm	100 V	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Tin	Solder	0.106 in	2.7 mm	UL94 V-0	Notched Tapered	Phosphor Bronze	-55 C	105 ░C	8	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW8R-2STE9LF	20	Black	Brown	Right Angle Surface Mount	1 mm	0.039 in	0.3 mm	0.33 mm	100 V	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Tin	Solder	0.106 in	2.7 mm	UL94 V-0	Straight Tapered	Phosphor Bronze	-55 C	105 ░C	8	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled
Amphenol ICC (FCI) SFW8R-5STE1LF	10	Black	Brown	Right Angle Surface Mount	1 mm	0.039 in	0.3 mm	0.33 mm	100 V	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Tin	Solder	0.106 in	2.7 mm	UL94 V-0	Straight Tapered	Phosphor Bronze	-55 C	105 ░C	8	CIC	Polyphenylene Sulfide (PPS) Glass Filled
Amphenol ICC (FCI) SFW8R-2STAE5LF		Black	Brown	Right Angle Surface Mount	1 mm	0.039 in				Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Gold	Solder	0.106 in	2.7 mm	UL94 V-0	Tapered	Phosphor Bronze			8	FPC	Polyphenylene Sulfide (PPS) Glass Filled		0.33 mm

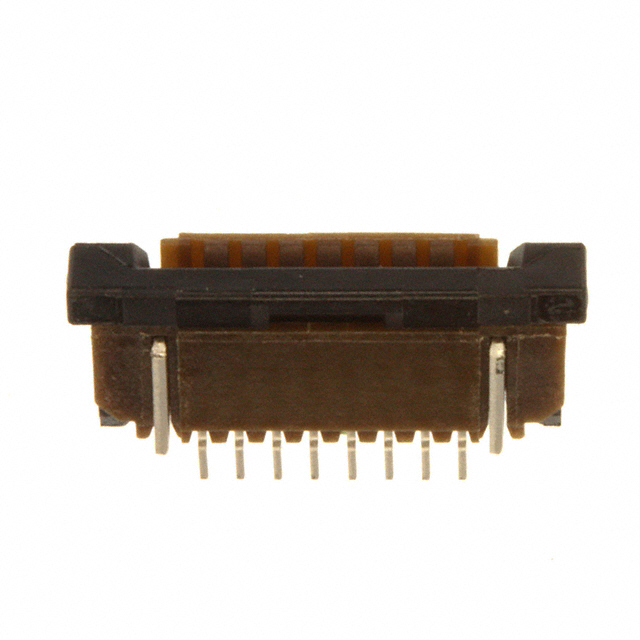

Amphenol ICC (FCI) SFW8R-2STE1LF	20		Brown	Right Angle Surface Mount	1 mm	0.039 in			100 V	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled		Tin	Kinked Pin	0.106 in	2.7 mm	UL94 V-0	Straight or Tapered	Phosphor Bronze	-55 C	105 ░C	8	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled		0.3 mm
