039733 Series

Manufacturer: Molex

Catalog

TERM BLOCK HDR 4POS 45DEG 5MM

Part	Number of Positions	Color	Pitch [x]	Pitch [x]	Termination Style	Header Orientation	Material Flammability Rating	Contact Mating Finish	Contact Tail Length	Contact Tail Length	Number of Levels	Type	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - UL	Contact Material	Insulation Height	Insulation Height	Mounting Type	Current - UL

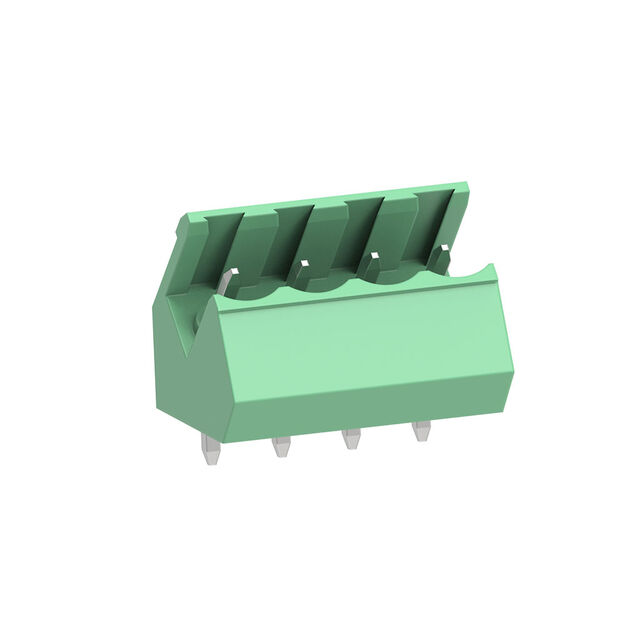

Molex 0397330004	4	Green	5 mm	0.197 in	Solder	45 °	UL94 V-0	Tin	3.56 mm	0.14 in	1	Header Male Pins Shrouded (2 Side)	4	-40 °C	105 ░C	300 V	Brass	14.48 mm	0.57 in	Through Hole	10 A

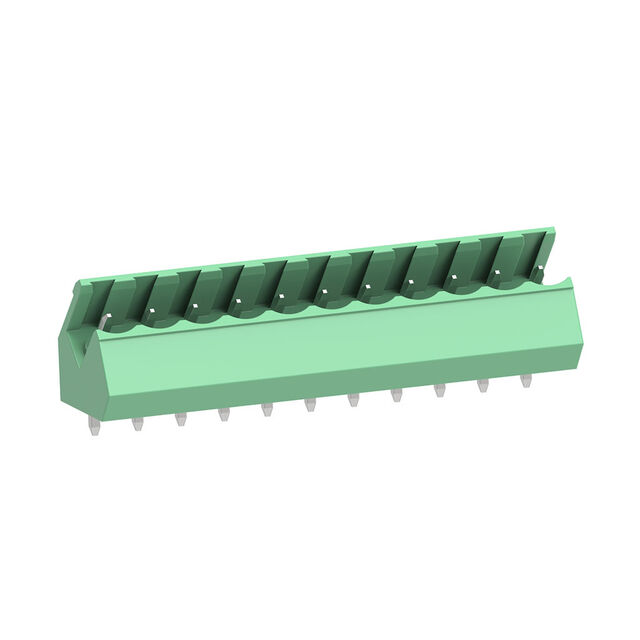

Molex 0397330011	11	Green	5 mm	0.197 in	Solder	45 °	UL94 V-0	Tin	3.56 mm	0.14 in	1	Header Male Pins Shrouded (2 Side)	11	-40 °C	105 ░C	300 V	Brass	14.48 mm	0.57 in	Through Hole	10 A

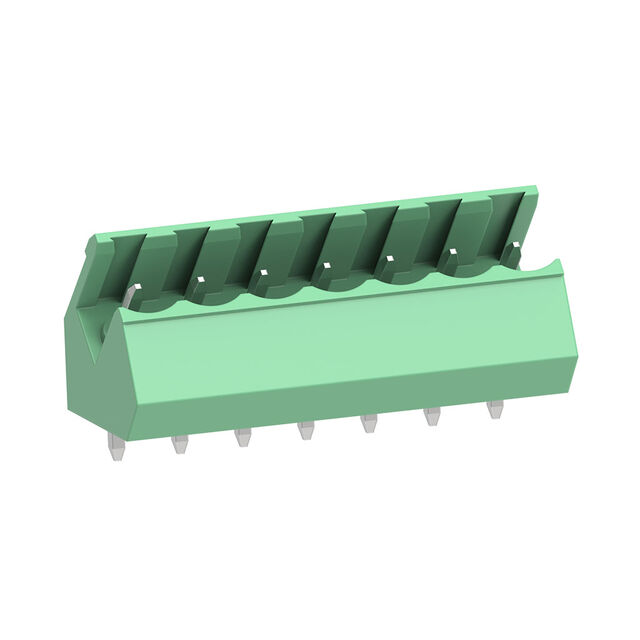

Molex 0397330007	7	Green	5 mm	0.197 in	Solder	45 °	UL94 V-0	Tin	3.56 mm	0.14 in	1	Header Male Pins Shrouded (2 Side)	7	-40 °C	105 ░C	300 V	Brass	14.48 mm	0.57 in	Through Hole	10 A

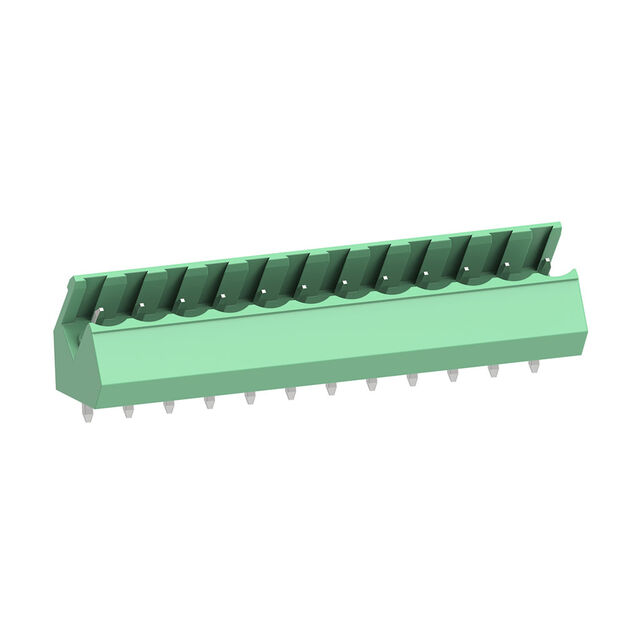

Molex 0397330012	12	Green	5 mm	0.197 in	Solder	45 °	UL94 V-0	Tin	3.56 mm	0.14 in	1	Header Male Pins Shrouded (2 Side)	12	-40 °C	105 ░C	300 V	Brass	14.48 mm	0.57 in	Through Hole	10 A
Molex 0397330005		Green	5 mm	0.197 in	Solder	45 °	UL94 V-0	Tin	3.56 mm	0.14 in	1	Header Male Pins Shrouded (2 Side)	5	-40 °C	105 ░C	300 V	Brass	14.48 mm	0.57 in	Through Hole	10 A
Molex 0397330008	8	Green	5 mm	0.197 in	Solder	45 °	UL94 V-0	Tin	3.56 mm	0.14 in	1	Header Male Pins Shrouded (2 Side)	8	-40 °C	105 ░C	300 V	Brass	14.48 mm	0.57 in	Through Hole	10 A
